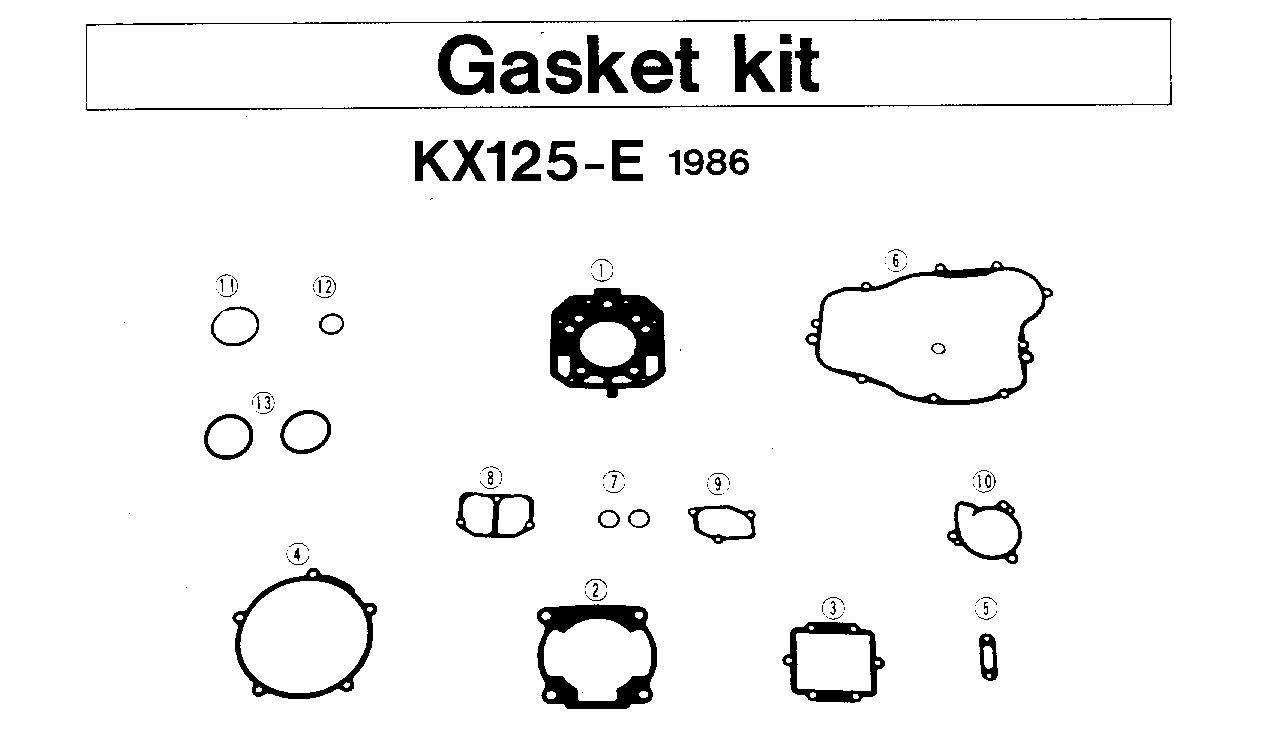

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-HEAD | 1 | 11004-1160 | 1 | ||
| GASKET,CYLINDER BASE | 2 | 11009-1258 | 1 | ||
| GASKET,REED VALVE | 3 | 11009-1941 | 1 | ||
| GASKET,GENERATOR COV | 4 | 11009-1266 | 1 | ||
| GASKET,ELBOW | 5 | 11009-1952 | 1 | ||
| GASKET,CLUTCH COVER | 6 | 11009-1453 | 1 | ||
| GASKET,16.2X22X1 | 7 | 11009-1467 | 2 | ||
| GASKET,LH,RESONATOR | 8 | 11009-1478 | 1 | ||
| GASKET,RH,GOVERNOR | 9 | 11009-1479 | 1 | ||
| GASKET,WATER PUMP CO | 10 | 11009-1998 | 1 | ||
| GASKET,EXHAUST PIPE | 11 | 11009-1587 | 1 | ||
| "O" RING,22M/M | 12 | 670E2022 | 1 | ||
| "0" RING,45M/M | 13 | 670E3045 | 2 | ||
| GASKET CHECK VALVE | 14 | 92065-058 | 1 |
