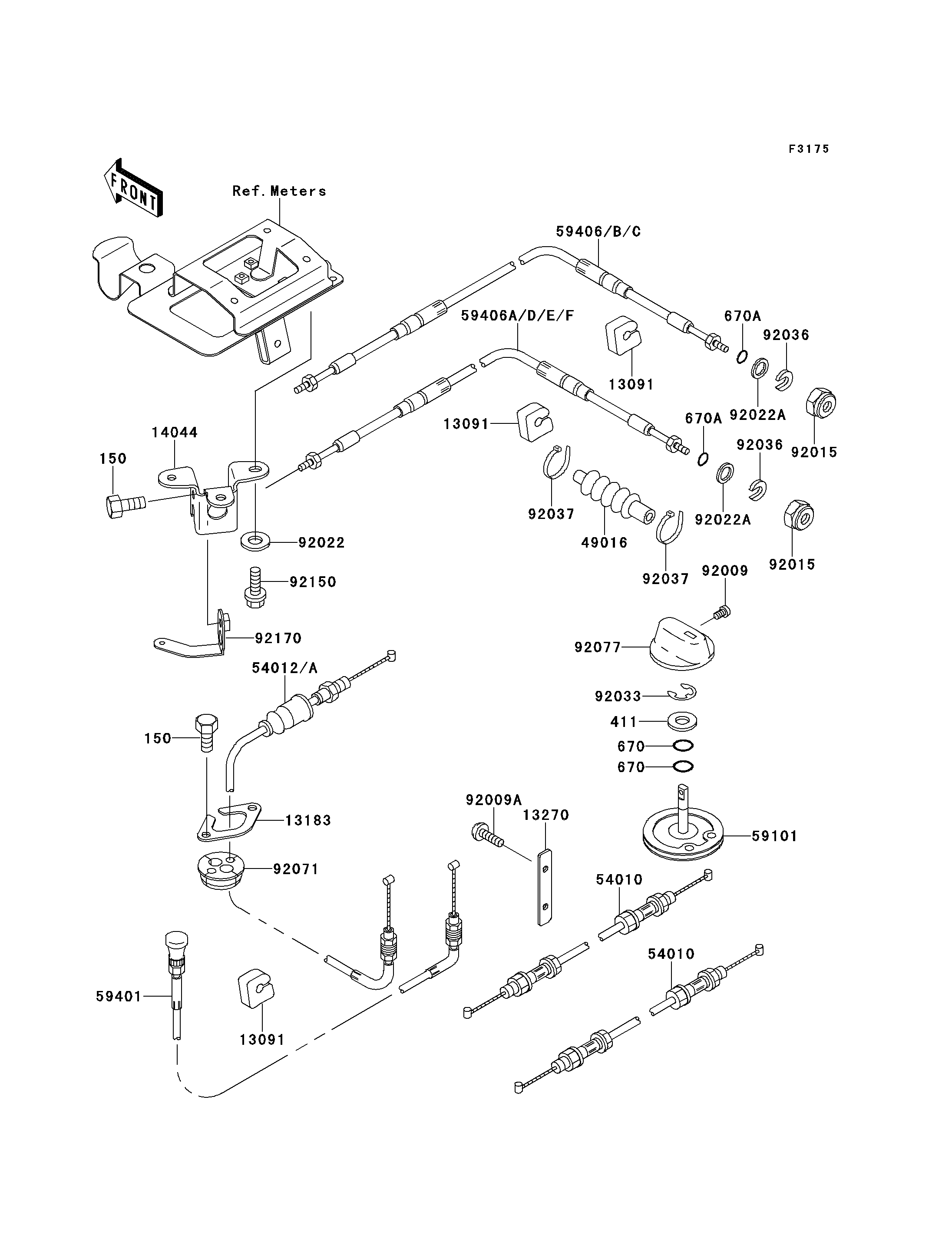

1995 900 ZXi - Cables

DOWNLOAD PDF
SELECT A NEW PART
150
150
411
670
670
670A
670A
13091
13091
13091
13183
13270
14044
49016
54010
54010
54012
59101
59401
59406
59406A
59406C
59406D
92009
92009A
92015
92015
92022
92022A
92022A
92033
92036
92036
92037
92037
92071
92077
92150
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WS,6X14 150 150R0614 3
WASHER-PLAIN,8MM 411 411S0800 1
O RING,8MM 670 670B1508 2
O RING,11MM 670A 670B2011 2
HOLDER 13091 13091-3712 3
PLATE 13183 13183-3810 1
PLATE,FUEL TAP 13270 13270-3798 1
HOLDER-CABLE,STEERING 14044 14044-3730 1
COVER-SEAL,TILT CABLE 49016 49016-3702 1
CABLE,FUEL TAP 54010 54010-3710 2
CABEL-THROTTLE 54012 54012-3747 1
REEL,SHIFT CABLE 59101 59101-3709 1
CABLE-CHOKE 59401 59401-3714 1
CABLE-STRG 59406 59406-3742 1 ( - KAW44210 95 )
CABLE-STRG,TILT 59406A 59406-3743 1 ( - KAW44210 95 )
CABLE-STRG 59406C 59406-3746 1 (KAW44211 95 - )
CABLE-STRG,TILT 59406D 59406-3747 1 (KAW44211 95 - )
SCREW,4X8 92009 92009-3729 1
SCREW,5X16 92009A 92009-3789 2
NUT,20MM 92015 92015-526 2
WASHER,6.5X20X1.5 92022 92022-3710 3
WASHER 92022A 92022-535 2
RING-SNAP,7MM 92033 92033-3704 1
RING-SNAP 92036 92036-501 2
CLAMP 92037 92037-1173 2
GROMMET,HARNESS 92071 92071-3790 1
KNOB,FUEL TAP 92077 92077-3725 1
BOLT,6X20 92150 92150-3758 3
CLAMP,STEERING CABLE 92170 92170-3744 1
