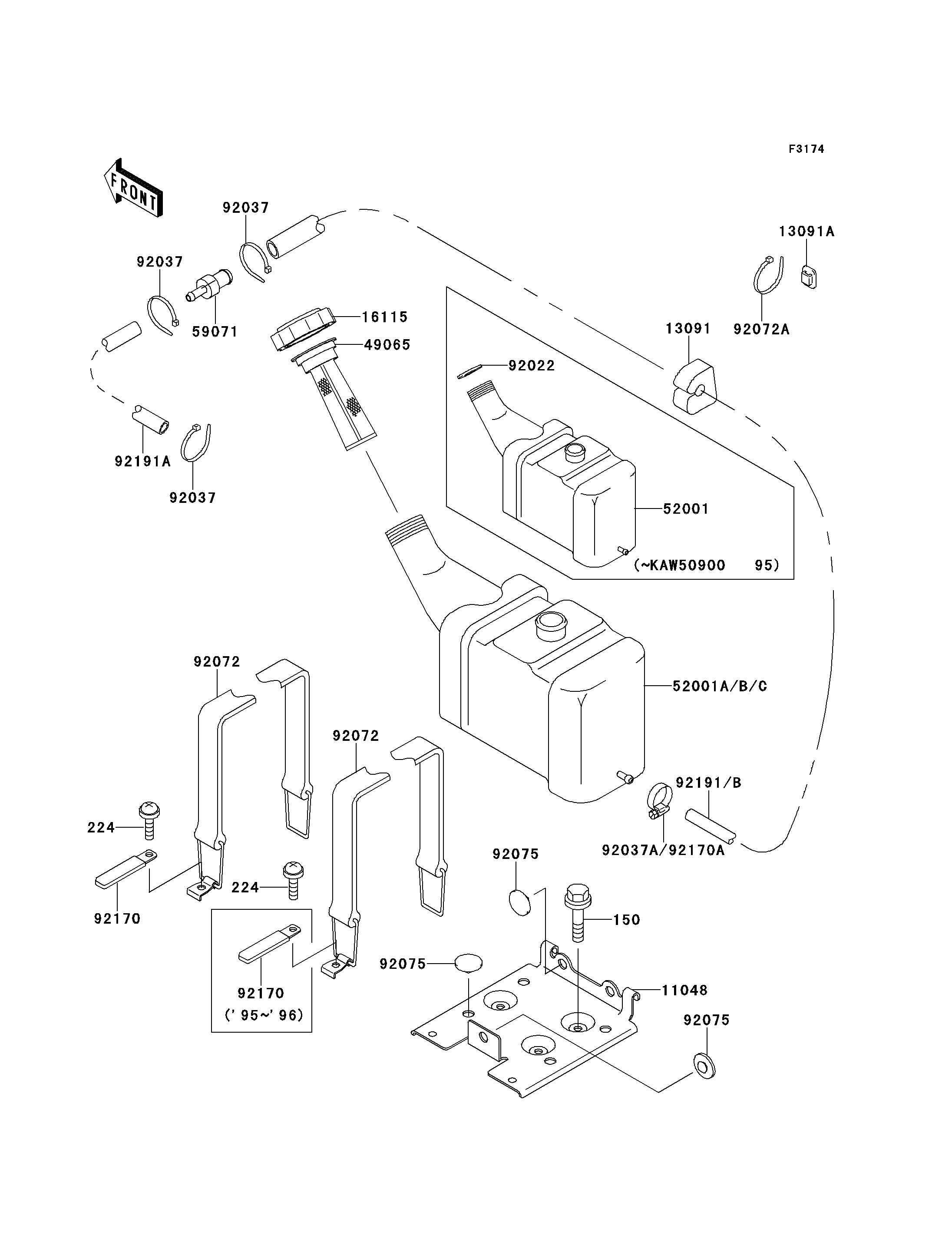

Parts Diagrams |
150
224
224
11048
13091
13091A
16115
49065
52001
52001B
92022
92037
92037
92037
92037A
92072
92072
92072A
92075
92075
92075
92170
92170
92170A
92191
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-WS,6X16 | 150 | 150R0616 | 3 | ||
| SCREW-PAN-WP-CROS | 224 | 224R0614 | 2 | ||
| BRACKET,OIL TANK | 11048 | 11048-3773 | 1 | ||
| HOLDER | 13091 | 13091-3712 | 5 | ||
| HOLDER,BAND | 13091A | 13091-3764 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-3714 | 1 | ||
| FILTER-OIL | 49065 | 49065-3702 | 1 | ||
| TANK-OIL | 52001 | 52001-3718 | 1 | ( - KAW50900 95 ) | |
| TANK-OIL | 52001B | 52001-3723 | 1 | (KAW50901 95 - ) | |
| WASHER,25.5X38X1 | 92022 | 92022-145 | 1 | ( - KAW50900 95 ) | |
| CLAMP | 92037 | 92037-1173 | 1 | ||
| CLAMP | 92037A | 92037-3726 | 1 | ||
| BAND,BATTERY | 92072 | 92072-3748 | 2 | ||
| BAND | 92072A | 92072-3778 | 1 | ||
| DAMPER,RUBBER | 92075 | 92075-261 | 7 | ||
| CLAMP | 92170 | 92170-3705 | 2 | ||
| CLAMP | 92170A | 92170-3747 | 1 | ||
| TUBE,OIL PUMP-OIL TANK | 92191 | 92191-3763 | 1 |
| BOLT-WS,6X16 | |
| REF # | 150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS | |
| REF # | 224 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,OIL TANK | |
| REF # | 11048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| HOLDER,BAND | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-OIL FILLER | |
| REF # | 16115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-OIL | |
| REF # | 49065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-OIL | |
| REF # | 52001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - KAW50900 95 ) |
| TANK-OIL | |
| REF # | 52001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (KAW50901 95 - ) |
| WASHER,25.5X38X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - KAW50900 95 ) |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,OIL PUMP-OIL TANK | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
