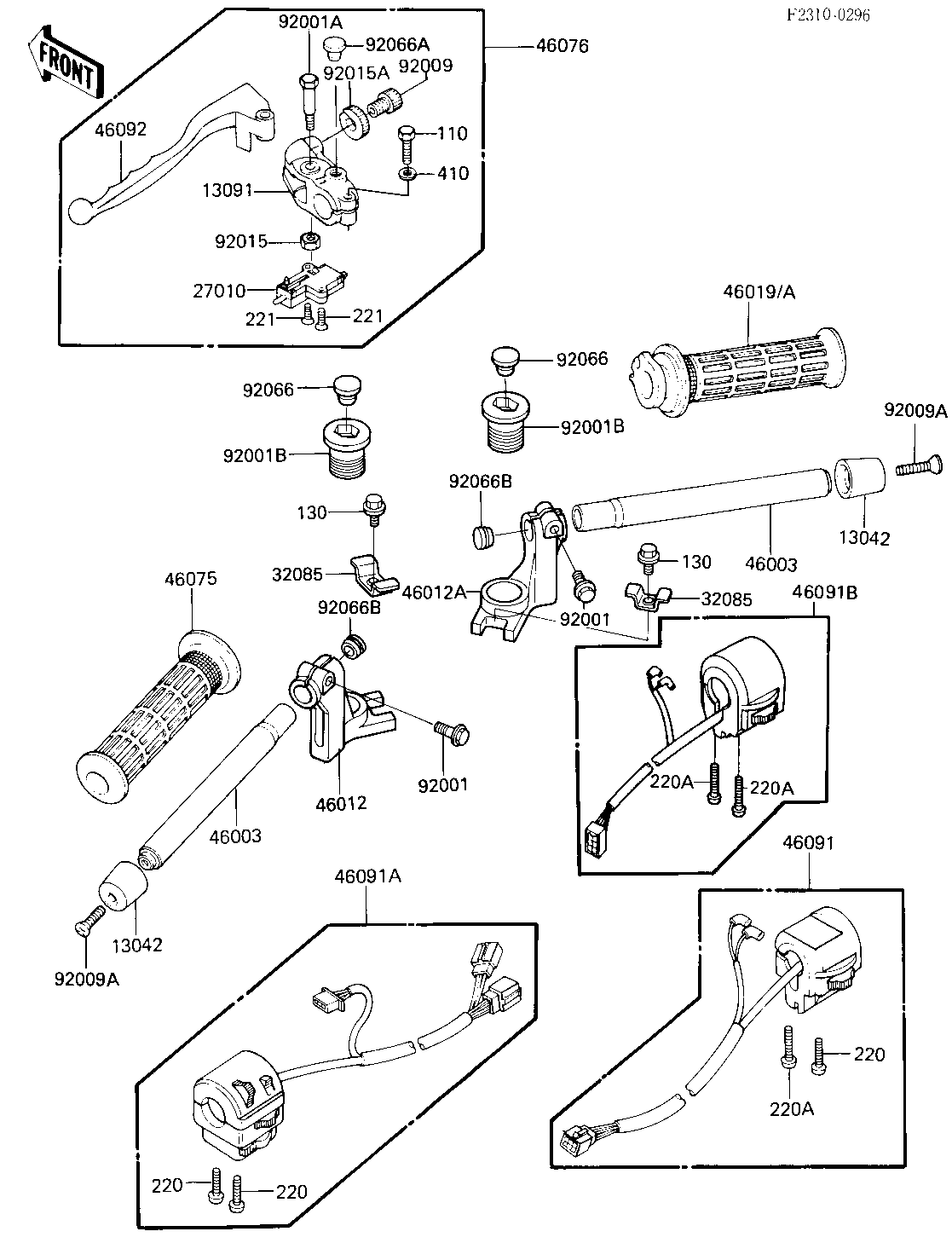

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WEIGHT,HANDLE | 13042 | 13042-1005 | 2 | ||
HOLDER,CLUTCH LEVER | 13091 | 13091-1185 | 1 | ||
SWITCH,CLUTCH | 27010 | 27010-1094 | 1 | ||
STOPPER | 32085 | 32085-1092 | 2 | ||
HANDLE | 46003 | 46003-1135 | 2 | ||
HOLDER-HANDLE,LH | 46012 | 46012-1103 | 1 | ||
HOLDER-HANDLE,RH | 46012A | 46012-1104 | 1 | ||
GRIP-ASSY,THROTTLE | 46019A | 46019-1059 | 1 | ||
GRIP,LH | 46075 | 46075-1028 | 1 | ||
LEVER-ASSY-GRIP,LH | 46076 | 46076-1041 | 1 | ||
HOUSING-ASSY-CONTROL, | 46091A | 46091-1428 | 1 | ||
HOUSING-ASSY-CONTROL | 46091B | 46091-1350 | 1 | ||
LEVER-GRIP,CLUTCH | 46092 | 46092-1050 | 1 | ||
BOLT,FLANGED,8X28,BLA | 92001 | 92001-1508 | 2 | ||
BOLT,CLUTCH LEVER,BLA | 92001A | 92001-1548 | 1 | ||
BOLT,HANDLE HOLDER,BL | 92001B | 92001-1912 | 2 | ||
SCREW,CABLE ADJUST,8 | 92009 | 92009-1134 | 1 | ||
SCREW,HUNDLE WEIGHT | 92009A | 92009-1257 | 2 | ||
NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
NUT,CABLE ADJUST LOCK | 92015A | 92015-1197 | 1 | ||
PLUG,FRAME | 92066 | 92066-1018 | 2 | ||
PLUG,9.5X8 | 92066A | 92066-1077 | 1 | ||
PLUG,HANDLE | 92066B | 92066-1124 | 2 | ||
BOLT,6X22,BLACK | 110 | 110C0622 | 1 | ||
BOLT-FLANGED,6X16 | 130 | 130J0616 | 2 | ||
SCREW-PAN-CROS | 220 | 220B0535 | 2 | ||
SCREW-PAN-CROS | 220A | 220B0540 | 2 | ||
SCREW-CSK-CROS | 221 | 221C0316 | 2 | ||
WASHER PLAIN | 410 | 410F0600 | 1 |
WEIGHT,HANDLE | |
REF # | 13042 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH LEVER | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,CLUTCH | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HANDLE | |
REF # | 46003 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-HANDLE,LH | |
REF # | 46012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-HANDLE,RH | |
REF # | 46012A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP-ASSY,THROTTLE | |
REF # | 46019A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP,LH | |
REF # | 46075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-GRIP,LH | |
REF # | 46076 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-ASSY-CONTROL, | |
REF # | 46091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-ASSY-CONTROL | |
REF # | 46091B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-GRIP,CLUTCH | |
REF # | 46092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X28,BLA | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,CLUTCH LEVER,BLA | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HANDLE HOLDER,BL | |
REF # | 92001B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,CABLE ADJUST,8 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,HUNDLE WEIGHT | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CABLE ADJUST LOCK | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,FRAME | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG,9.5X8 | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,HANDLE | |
REF # | 92066B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X22,BLACK | |
REF # | 110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X16 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER PLAIN | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
