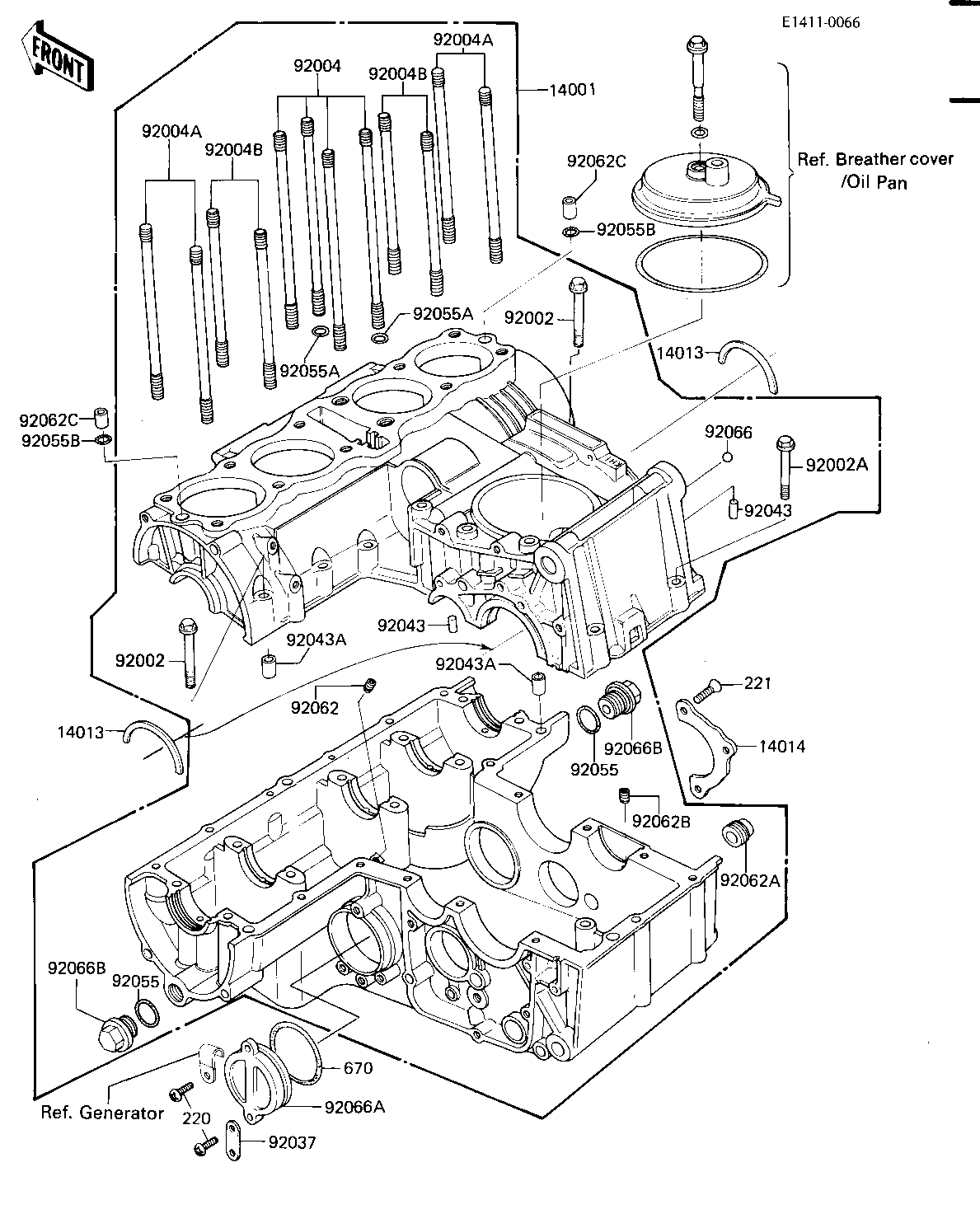

1985 GPz 750 - CRANKCASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SET-CRANKCASE,F.BLACK 14001 14001-5120 1
RING BEARING SETTING 14013 14013-004 2
PLATE,POSITIONING 14014 14014-1007 1
BOLT,6X50 92002 92002-1079 2
BOLT,6X40 92002A 92002-1080 1
STUD,10X153 92004 92004-062 4
STUD,10X133 92004A 92004-1004 4
STUD,10X116 92004B 92004-1007 4
CLAMP 92037 92037-1575 1
PIN DOWEL 6MM 92043 92042-016 2
PIN,DOWEL,10X8.2X14 92043A 92043-1037 2
RING-O 92055 92055-1146 2
"O" RING,8.8MM 92055A 92055-099 2
O RING 92055B 670D2010 2
NOZZLE,OIL BIAS 92062 92062-011 1
NOZZLE 92062A 92062-014 1
NOZZLE 92062B 92062-015 1
NOZZLE 92062C 92062-016 2
PLUG 92066 92066-057 1
PLUG,SECONDARY SHAFT 92066A 92066-1019 1
PLUG,MAIN GALLARY,18X 92066B 92066-1096 2
SCREW PAN HEAD 6X20 220 220B0620 2
SCREW CNTSNK HD 6X20 221 221B0620 1
"0" RING,46MM 670 670B3046 1
