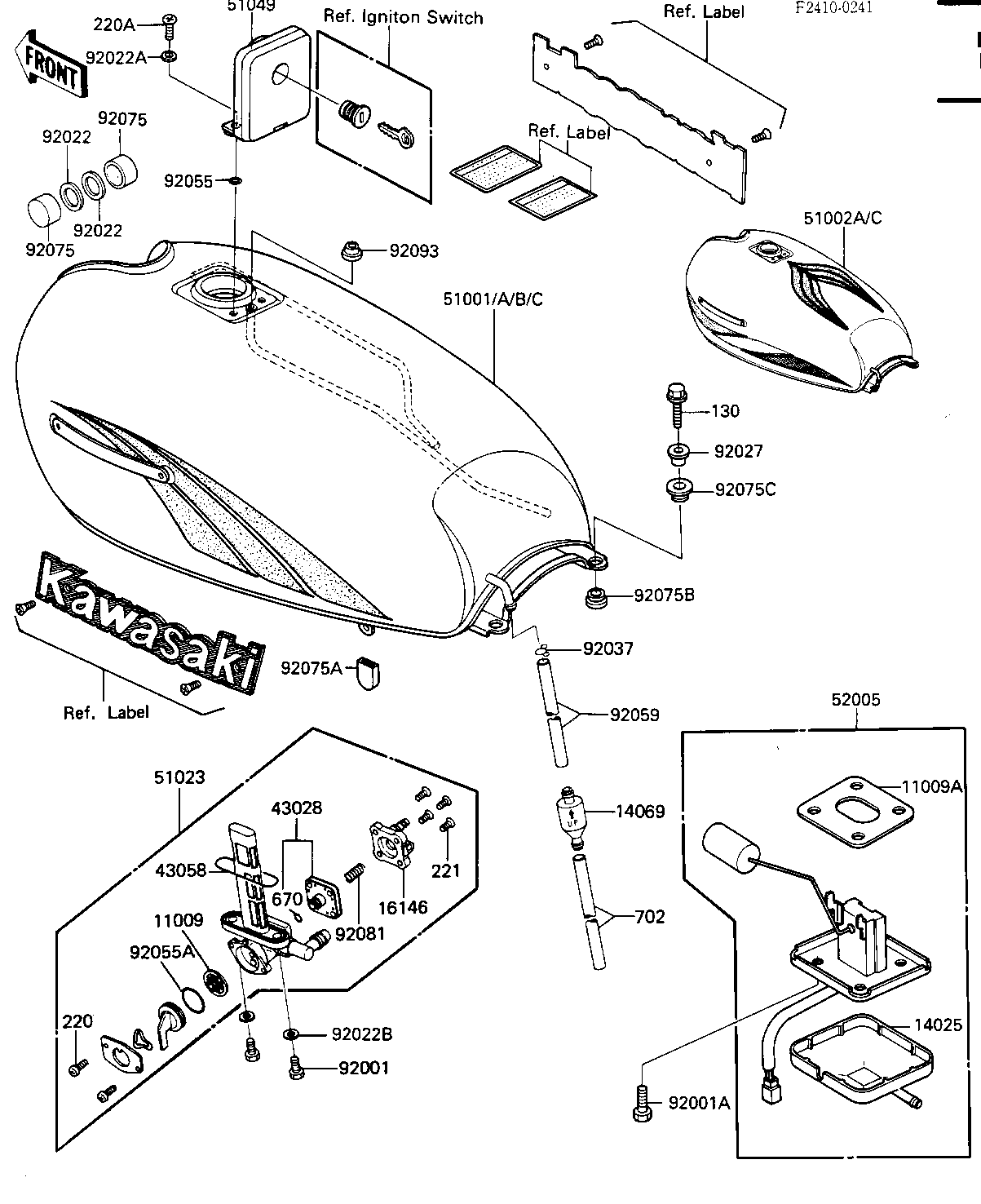

1984 LTD Shaft - FUEL TANK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TAP 11009 11009-1188 1
GASKET,FUEL GAUGE 11009A 11009-1656 1
COVER,FUEL GAGE 14025 14025-1536 1
BREATER,FUEL TANK 14069 14069-1004 1 US
COVER ASSY,FUEL TAP 16146 16146-1009 1
DIAPHRAGM 43028 43028-1033 1
"O" RING 43058 51039-003 1
TANK-COMP-FUEL,EBONY 51001 51001-5439-H8 1 US
TANK-COMP-FUEL,L.C.RE 51001A 51001-5439-L2 1 US
TANK-COMP-FUEL,EBONY 51001B 51001-5440-H8 1 CA
TANK-COMP-FUEL,L.C.RE 51001C 51001-5440-L2 1 CA
TANK-COMP-FUEL,L.V.RE 51002A 51002-5015-P5 1 US
TANK-COMP-FUEL,L.V.RE 51002C 51002-5032-P5 1 CA
TAP-ASSY,FUEL 51023 51023-1186 1
CAP,TANK-FUEL 51049 51049-1058 1
GAUGE,FUEL 52005 52005-1059 1
BOLT,6X20,FUEL TAP 92001 92001-1091 2
BOLT,FUEL GAGE 92001A 92001-1705 4
WASHER-PL-10.5X26X2.3 92022 92022-044 2
WASHER,PLAIN 92022A 92022-1038 2
WASHER-PLAIN 92022B 92022-183 2
COLLAR 92027 92027-251 2
CLAMP FUEL PIPE 92037 92037-010 1 US
"0" RING 92055 92055-1023 2
"0" RING,FUEL TAP LEV 92055A 92055-1085 1
TUBE 92059 92059-1485 1 US
DAMPER RUBBER,FL TANK 92075 92075-125 2
DAMPER,SIDE COVER 92075A 92075-1445 2
RUBBER,FENDER COVER 92075B 92075-174 2
DAMPER RUBBER 92075C 92075-175 2
SPRING,DIAPHRAGM VALV 92081 92081-1240 1
OIL SEAL,FUEL TANK 92093 92093-1030 1
BOLT,FLANGED,6X20 130 130B0620 2
SCREW PAN HEAD 3X8 220 220B0308 2
SCREW PAN HEAD 5X10 220A 220B0510 2
SCREW-CSK-CROS,4X14 221 221B0414 4
"O" RING,4MM 670 670B1504 1
TUBE,RUBBER,7X10X400 702 702A07400 1 US
