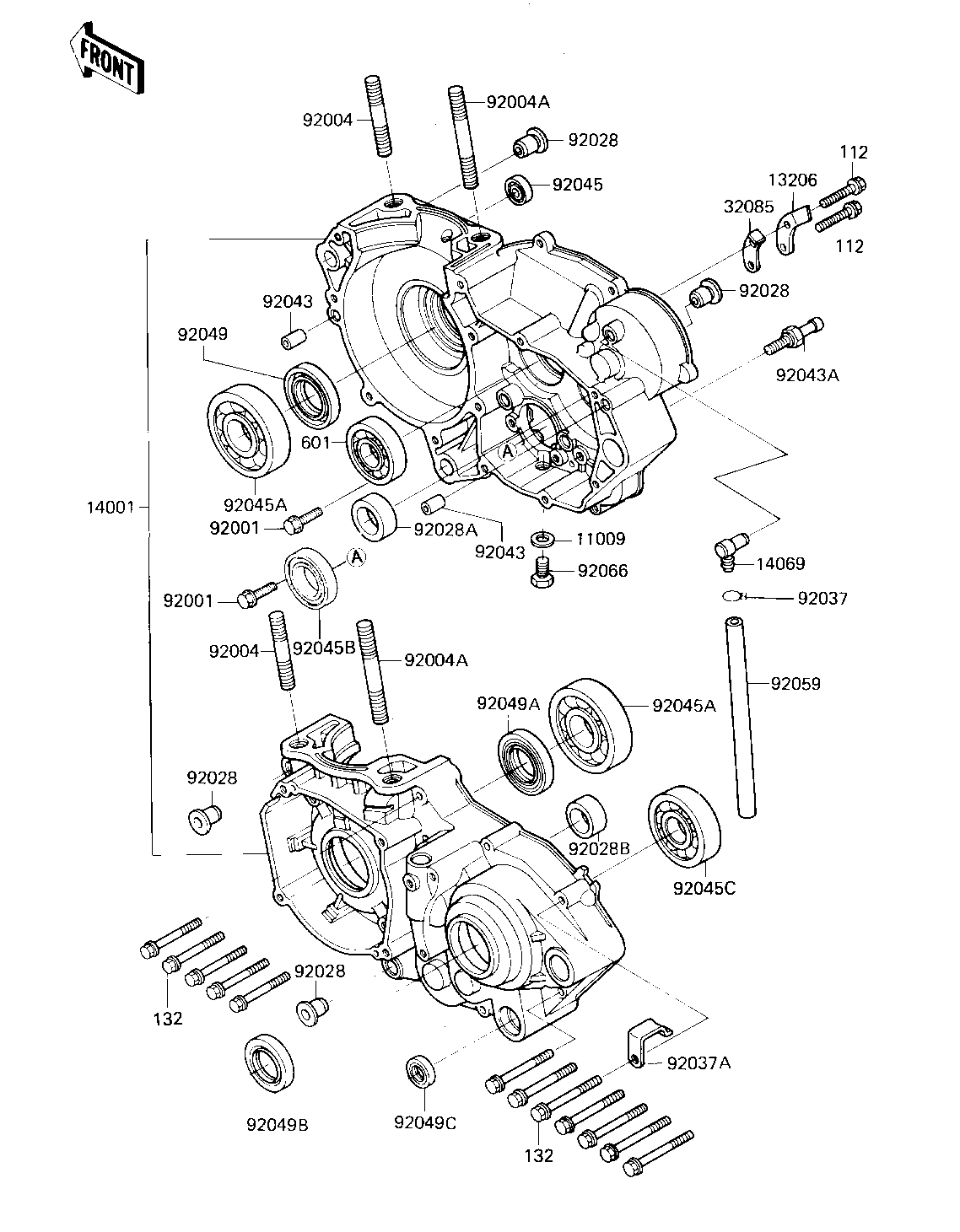

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET CHECK VALVE | 11009 | 92065-058 | 1 | ||
| GUIDE-KICK | 13206 | 13206-1052 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-5152 | 1 | ||
| BREATHER | 14069 | 14069-003 | 1 | ||
| STOPPER,KICKSTARTER | 32085 | 32085-1016 | 1 | ||
| BOLT,W/WASHER,6X14 | 92001 | 92001-1829 | 4 | ||
| STUD,10X35 | 92004 | 92004-1063 | 2 | ||
| STUD,10X45 | 92004A | 92004-1065 | 2 | ||
| BUSHING,CRANKCASE | 92028 | 92028-1133 | 4 | ||
| BUSHING | 92028A | 92028-131 | 1 | ||
| BUSHING | 92028B | 92028-132 | 1 | ||
| CLAMP FUEL PIPE | 92037 | 92037-010 | 1 | ||
| CLAMP,HARNESS | 92037A | 92037-1318 | 1 | ||
| PIN-DOWEL | 92043 | 92042-007 | 2 | ||
| PIN,CHANGE PEDAL | 92043A | 92043-1055 | 1 | ||
| BEARING-BALL | 92045 | 92045-1211 | 1 | ||
| BEARING BALL #6305SH2 | 92045A | 92045-1024 | 2 | ||
| BEARING-BALL,6905Z | 92045B | 92045-1058 | 1 | ||
| BEARING-BALL,6205 | 92045C | 92045-1115 | 1 | ||
| OIL SEAL,TCJ25457 | 92049 | 92049-1051 | 1 | ||
| OIL SEAL,TCJ20407 | 92049A | 92049-1052 | 1 | ||
| OIL SEAL TB3040 | 92049B | 92050-033 | 1 | ||
| OIL SEAL,TB13225.5 | 92049C | 92051-005 | 1 | ||
| TUBE,6X9X750 | 92059 | 92059-1372 | 1 | ||
| PLUG OIL DRAIN | 92066 | 92067-001 | 1 | ||
| BOLT-UPSET | 112 | 112G0618 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0640 | 12 | ||
| BEARING BALL #6204 | 601 | 601B6204 | 1 |
