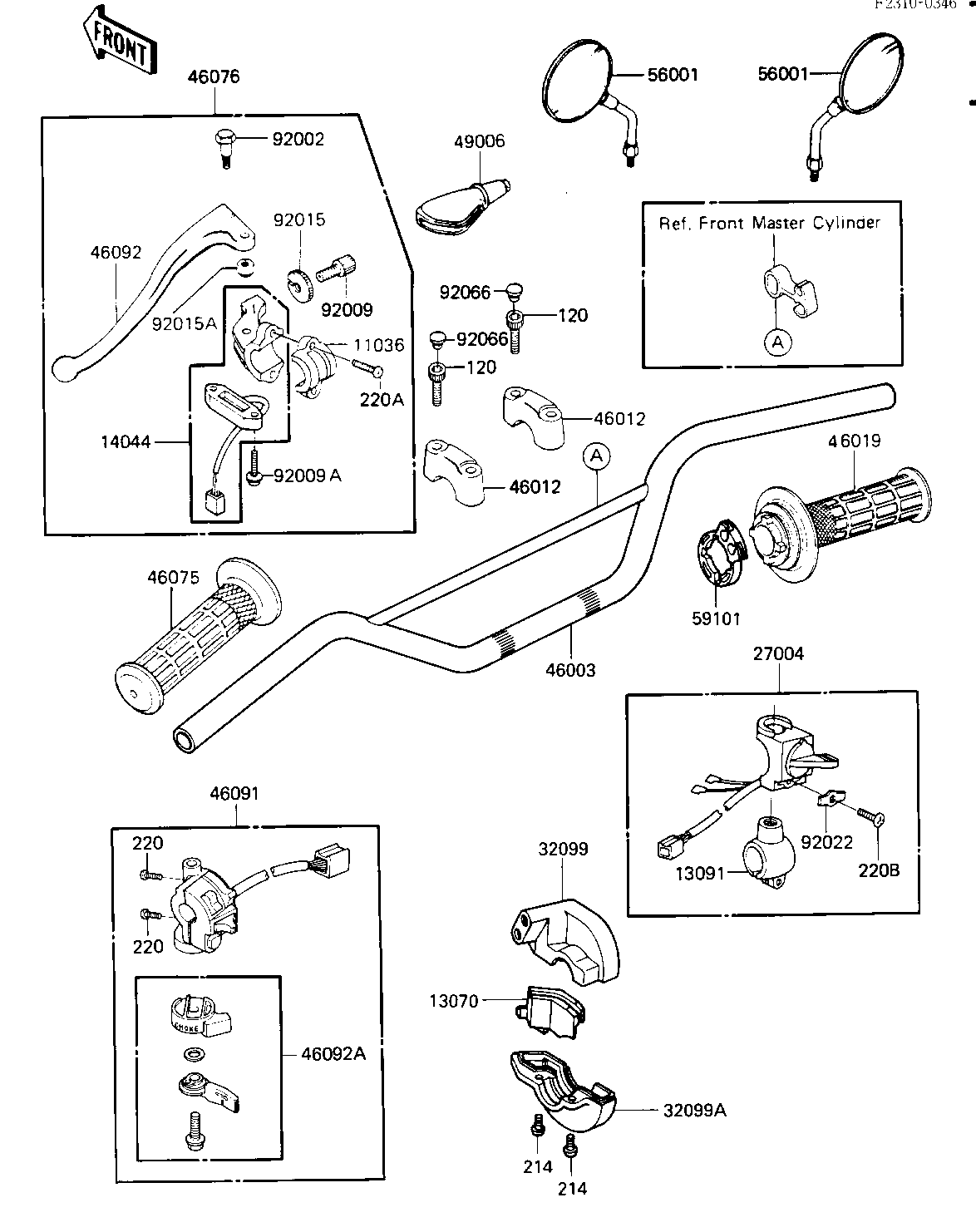

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-A | 11036 | 11036-1297 | 1 | ||
| GUIDE | 13070 | 13070-1131 | 1 | ||
| HOLDER,ENGINE STOP SW | 13091 | 13091-1255 | 1 | ||
| HOLDER-CABLE,CLUTCH | 14044 | 14044-1052 | 1 | ||
| SWITCH-ASSY,ENGINE ST | 27004 | 27004-1056 | 1 | ||
| CASE | 32099 | 32099-1072 | 1 | ||
| CASE | 32099A | 32099-1073 | 1 | ||
| HANDLE | 46003 | 46003-1174 | 1 | ||
| HOLDER-HANDLE | 46012 | 46012-1102 | 2 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1054 | 1 | ||
| GRIP,LH | 46075 | 46075-1051 | 1 | ||
| LEVER-ASSY-GRIP,CLUTC | 46076 | 46076-1129 | 1 | ||
| HOUSING-ASSY-CONTROL, | 46091 | 46091-1309 | 1 | ||
| LEVER-GRIP,CLUTCH | 46092 | 46092-1111 | 1 | ||
| LEVER-GRIP | 46092A | 46092-1123 | 1 | ||
| BOOT,LEVER HOLDER | 49006 | 49006-1099 | 1 | ||
| MIRROR-ASSY | 56001 | 56001-1204 | 2 | ||
| REEL | 59101 | 59101-1106 | 1 | ||
| BOLT,LEVER SET | 92002 | 92002-1475 | 1 | ||
| SCREW,CABLE ADJUST | 92009 | 46055-009 | 1 | ||
| SCREW,TAPPING | 92009A | 92009-1336 | 2 | ||
| NUT,CABLE ADJUST LOCK | 92015 | 46056-006 | 1 | ||
| NUT,LOCK,6MM,BLACK | 92015A | 92015-1191 | 1 | ||
| WASHER,ENGINE STOP SW | 92022 | 92022-1474 | 1 | ||
| PLUG,HANDLE HOLDER | 92066 | 92066-1216 | 4 | ||
| BOLT-SOCKET,8X30,BLAC | 120 | 120S0830 | 4 | ||
| SCREW-PAN-CROS,5X18 | 214 | 220C0518 | 2 | ||
| SCREW-PAN-CROSS,5X14 | 220 | 220C0514 | 2 | ||
| SCREW-PAN-CROS, 6X14 | 220A | 220C0614 | 2 | ||
| SCREW-PAN-CROS, 6X20 | 220B | 220C0620 | 1 |
| BRACKET-A | |
| REF # | 11036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,ENGINE STOP SW | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-CABLE,CLUTCH | |
| REF # | 14044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY,ENGINE ST | |
| REF # | 27004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE | |
| REF # | 32099A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HANDLE | |
| REF # | 46003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-HANDLE | |
| REF # | 46012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GRIP-ASSY,THROTTLE | |
| REF # | 46019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,LH | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-GRIP,CLUTC | |
| REF # | 46076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-ASSY-CONTROL, | |
| REF # | 46091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-GRIP,CLUTCH | |
| REF # | 46092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-GRIP | |
| REF # | 46092A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,LEVER HOLDER | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MIRROR-ASSY | |
| REF # | 56001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| REEL | |
| REF # | 59101 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,LEVER SET | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,CABLE ADJUST | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,CABLE ADJUST LOCK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,6MM,BLACK | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,ENGINE STOP SW | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,HANDLE HOLDER | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,8X30,BLAC | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,5X18 | |
| REF # | 214 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROSS,5X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS, 6X14 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS, 6X20 | |
| REF # | 220B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
