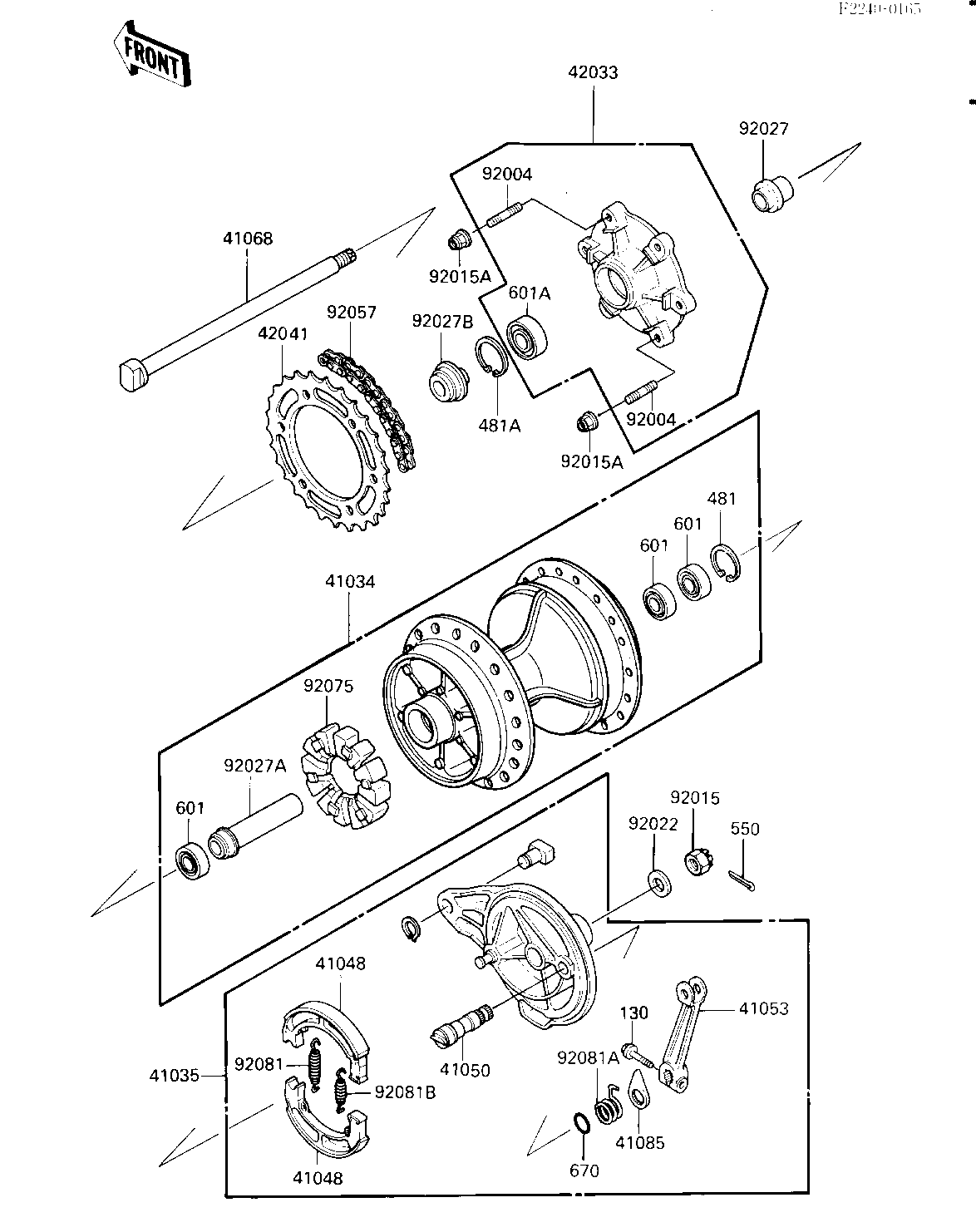

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,REAR BRAKE | 41034 | 41034-1113 | 1 | ||
| PANEL-ASSY-BRAKE,RR | 41035 | 41035-1173 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1056 | 2 | ||
| CAM-BRAKE | 41050 | 41050-1058 | 1 | ||
| LEVER-BRAKE CAM | 41053 | 41053-1061 | 1 | ||
| AXLE,RR | 41068 | 41068-1178 | 1 | ||
| INDICATOR,FR BRK PNL | 41085 | 41085-005 | 1 | ||
| COUPLING-ASSY,REAR HU | 42033 | 42033-1111 | 1 | ||
| SPROCKET-HUB,44T | 42041 | 42041-1191 | 1 | ||
| STUD | 92004 | 92004-1149 | 6 | ||
| NUT CASTLE 16M/M | 92015 | 42045-014 | 1 | ||
| NUT | 92015A | 92015-1506 | 6 | ||
| WASHER SLEEVE | 92022 | 42046-009 | 1 | ||
| COLLAR,REAR HUB COUPL | 92027 | 92027-1770 | 1 | ||
| COLLAR,REAR BRAKE DRU | 92027A | 92027-1823 | 1 | ||
| COLLAR,REAR HUB COUPL | 92027B | 92027-1826 | 1 | ||
| CHAIN,DRIVE,EK520L-OX | 92057 | 92057-1181 | 1 | ||
| DAMPER,RR HUB,SHOCK | 92075 | 92075-1068 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1550 | 1 | ||
| SPRING,BRAKE CAM LEVE | 92081A | 92081-1615 | 1 | ||
| SPRING,BRAKE SHOE | 92081B | 92081-1766 | 1 | ||
| BOLT,FLANGED,6X25 | 130 | 130G0625 | 1 | ||
| CIRCLIP,35MM | 481 | 481J3500 | 1 | ||
| CIRCLIP,42MM | 481A | 92033-1041 | 1 | ||
| PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
| BEARING-BALL,#6003UC3 | 601 | 601B6003U | 3 | ||
| BEARING-BALL,#6004U | 601A | 601B6004U | 1 | ||
| "O" RING,15MM | 670 | 670B2015 | 1 |
| DRUM-ASSY,REAR BRAKE | |
| REF # | 41034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-ASSY-BRAKE,RR | |
| REF # | 41035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOE-BRAKE | |
| REF # | 41048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAM-BRAKE | |
| REF # | 41050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-BRAKE CAM | |
| REF # | 41053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INDICATOR,FR BRK PNL | |
| REF # | 41085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING-ASSY,REAR HU | |
| REF # | 42033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB,44T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT CASTLE 16M/M | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER SLEEVE | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR HUB COUPL | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR BRAKE DRU | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR HUB COUPL | |
| REF # | 92027B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,DRIVE,EK520L-OX | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RR HUB,SHOCK | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE SHOE | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE CAM LEVE | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE SHOE | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,35MM | |
| REF # | 481 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,42MM | |
| REF # | 481A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,4.0X35 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6003UC3 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6004U | |
| REF # | 601A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,15MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
