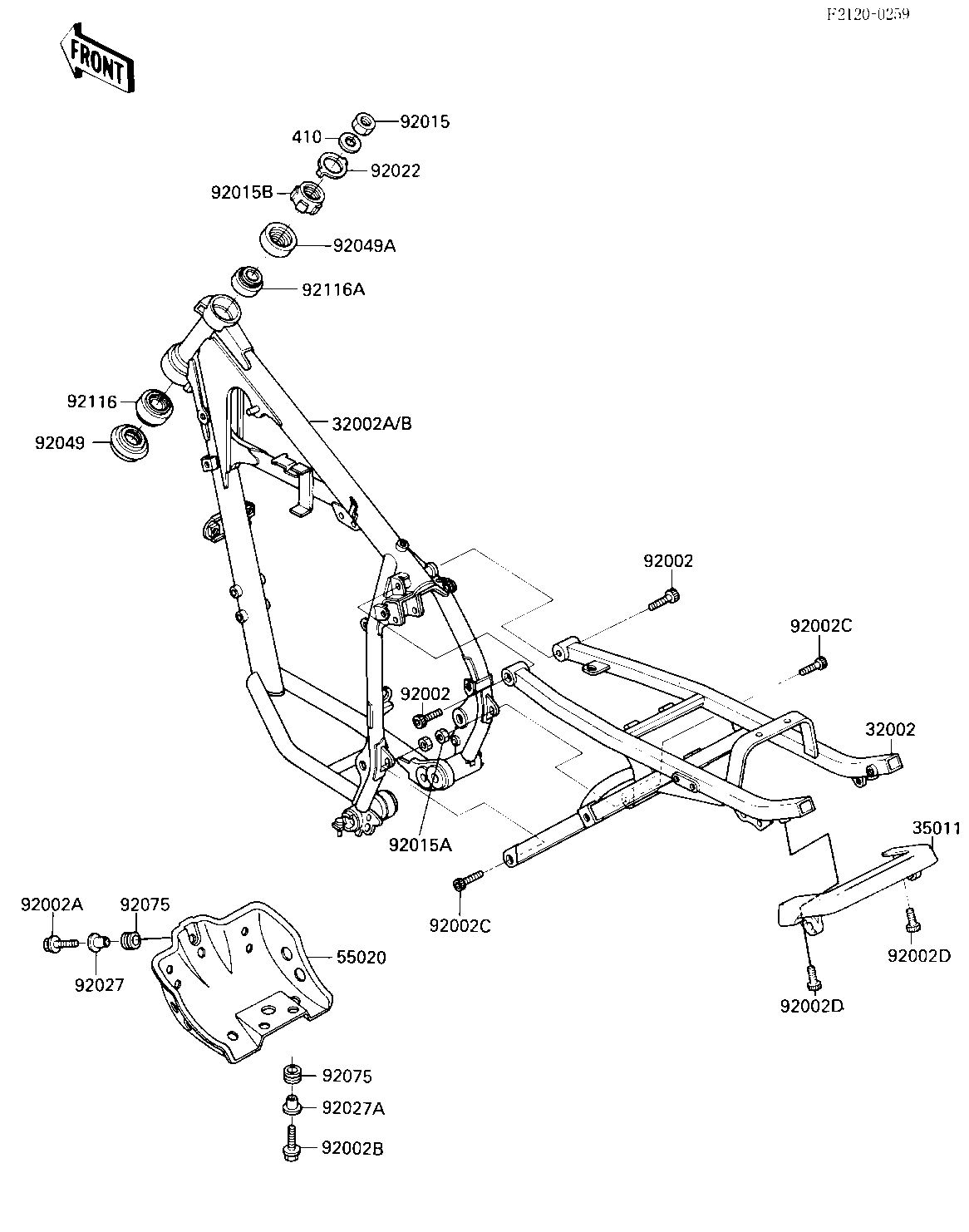

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP,RR | 32002 | 32002-1762 | 1 | ||
| FRAME-COMP,FR | 32002A | 32002-1764 | 1 | CN,US | |
| FRAME-COMP,FR | 32002B | 32002-1777 | 1 | CA | |
| STAY | 35011 | 35011-1236 | 1 | ||
| GUARD,ENGINE | 55020 | 55020-1168 | 1 | ||
| BOLT,SOCKET,8X40 | 92002 | 92002-1181 | 2 | ||
| BOLT,FLANGED,8X20 | 92002A | 92002-1417 | 1 | ||
| BOLT,6X20 | 92002B | 92002-1418 | 2 | ||
| BOLT,SOCKET,8X25 | 92002C | 92002-1442 | 2 | ||
| BOLT,SOCKET,8X10 | 92002D | 92002-1443 | 2 | ||
| NUT,18MM | 92015 | 92015-1404 | 1 | ||
| NUT,8MM | 92015A | 92015-1406 | 2 | ||
| NUT | 92015B | 92015-1546 | 1 | ||
| WASHER,CLAW,18.5X30X2 | 92022 | 92022-1555 | 1 | ||
| COLLAR,L=12 | 92027 | 92027-1842 | 1 | ||
| COLLAR | 92027A | 92027-251 | 2 | ||
| SEAL-OIL,XMHE36X52X4J | 92049 | 92049-1162 | 1 | ||
| SEAL-OIL,XMHE36X52X4J | 92049A | 92049-1162 | 1 | ||
| DAMPER RUBBER,RR FENR | 92075 | 92075-209 | 3 | ||
| BRG,ROLLER,HR320/28XJ | 92116 | 92116-1009 | 1 | ||
| BEARING-ROLLER,25X47X | 92116A | 92116-1052 | 1 | ||
| W-PLAIN-S | 41 | 410F1800 | 1 |
| FRAME-COMP,RR | |
| REF # | 32002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,FR | |
| REF # | 32002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN,US |
| FRAME-COMP,FR | |
| REF # | 32002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| STAY | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,ENGINE | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X40 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X20 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X25 | |
| REF # | 92002C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X10 | |
| REF # | 92002D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,18MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CLAW,18.5X30X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=12 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMHE36X52X4J | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMHE36X52X4J | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,RR FENR | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BRG,ROLLER,HR320/28XJ | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,25X47X | |
| REF # | 92116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| W-PLAIN-S | |
| REF # | 41 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
