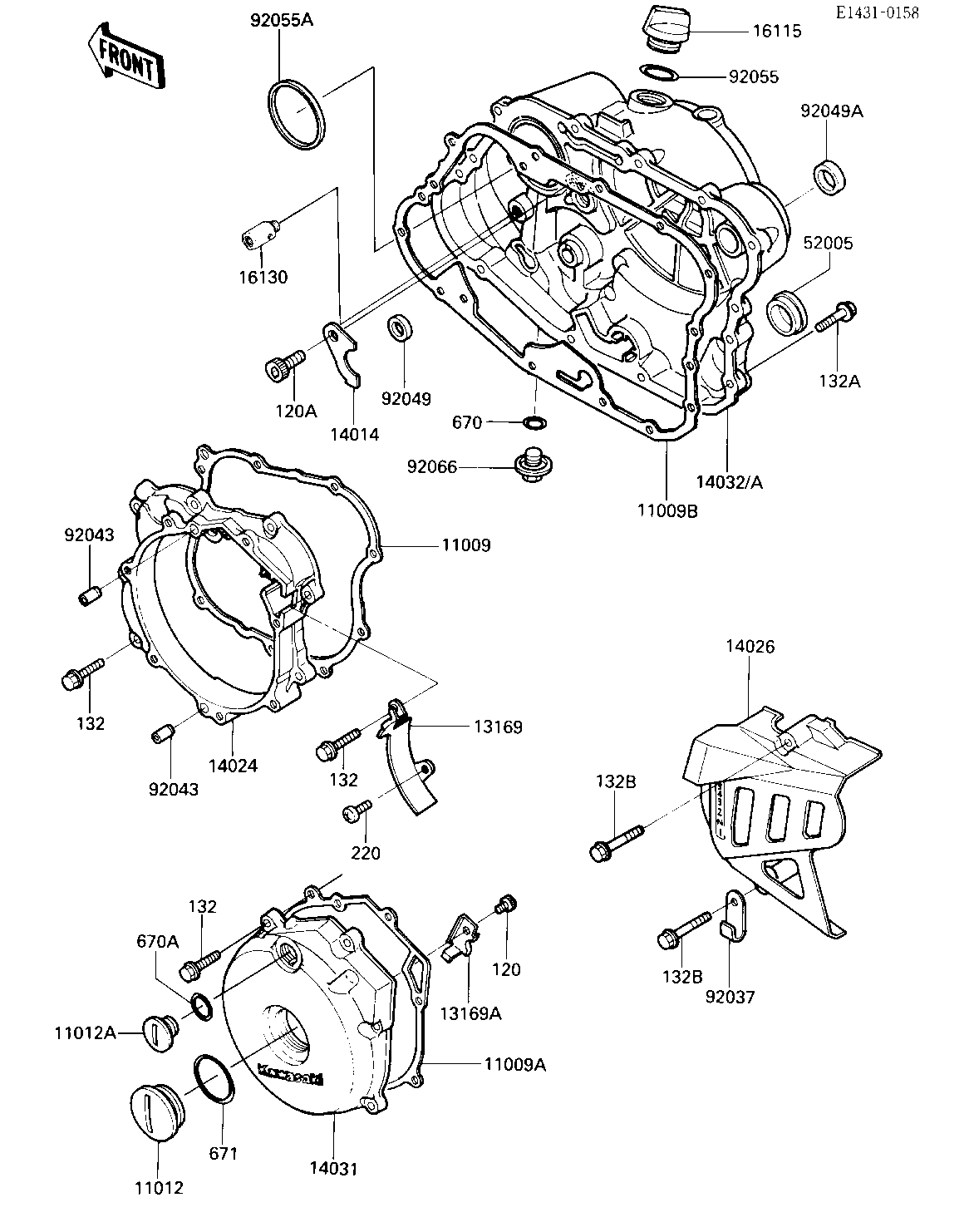

1986 KLR250 - ENGINE COVERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR CASE 11009 11060-1128 1
GASKET,GENERATOR COVE 11009A 11060-1129 1
GASKET,CLUTCH COVER 11009B 11060-1127 1
CAP 11012 11012-1362 1
CAP,TOP MARK 11012A 11012-1363 1
PLATE 13169 13169-1879 1
PLATE,GENERATOR LEAD 13169A 13169-1880 1
PLATE-POSITION 14014 14014-1062 1
COVER,GENERATOR CASE 14024 14025-1911 1
COVER-CHAIN 14026 14026-1112 1
COVER-GENERATOR 14031 14031-1238 1
COVER-CLUTCH 14032 14032-1171 1 ( - KL250DE013185)
COVER-CLUTCH 14032A 14032-1277 1 (KL250DE013186 - )
CAP-OIL FILLER 16115 16115-1009 1
RELEAF VALVE ASSY 16130 16130-1001 1 (KL250DE013186 - )
GAUGE,OIL LEVEL 52005 52005-1009 1
CLAMP,WIRING HARNESS 92037 92037-1069 1
PIN-DOWEL 92043 92042-007 2
SEAL-OIL 92049 92049-1191 2
OIL SEAL 92049A 92050-078 1
"0" RING,31MM 92055 92055-049 1
RING-O,62.6X66X3.1 92055A 92055-1221 1
PLUG,DRAIN 92066 92066-1156 1
BOLT-SOCKET 120 120P0608 1
BOLT-SOCKET,6X10 120A 120P0610 1
BOLT-FLANGED-SMALL 132 132J0625 16
BOLT-FLANGED-SMALL 132A 132J0630 13
BOLT-FLANGED-SMALL 132B 132J0645 2
SCREW PAN HEAD 6X8 220 220B0608 1
"O" RING 670 670B2011 1
"0" RING,18MM 670A 670B2018 1
"0" RING,40MM 671 671B2540 1
