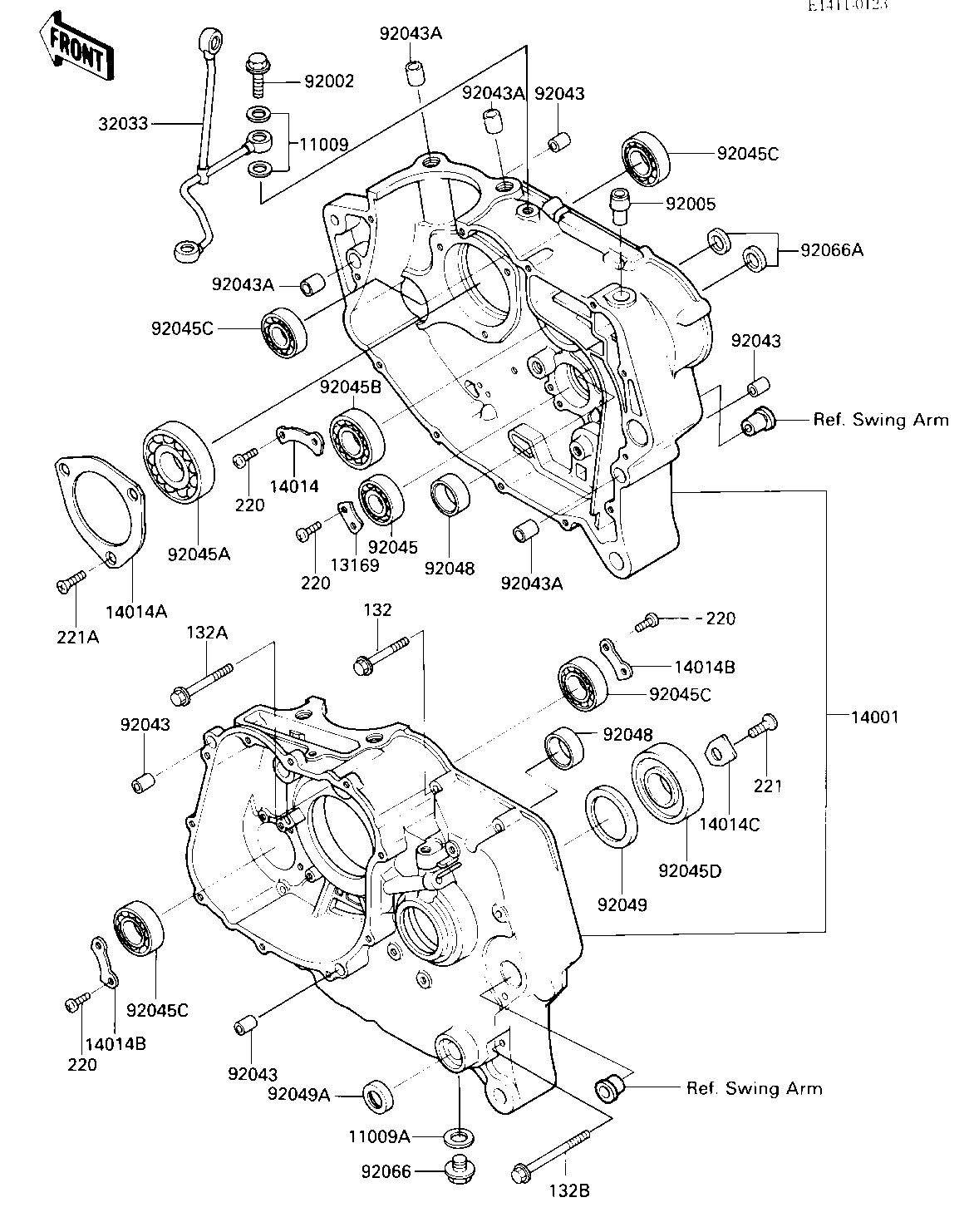

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 4 | ||
| GASKET,DRIN PLUG | 11009A | 92065-097 | 1 | ||
| PLATE,GEAR CHANGE | 13169 | 13169-014 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-5180 | 1 | ||
| PLATE,POSITIONING | 14014 | 14014-037 | 1 | ||
| PLATE,POSITIONING | 14014A | 14014-1004 | 1 | ||
| PLATE-POSITION | 14014B | 14014-1014 | 2 | ||
| PLATE-POSITION | 14014C | 14014-1057 | 1 | ||
| PIPE | 32033 | 32033-1427 | 1 | ||
| BOLT,BANJO,10X25 | 92002 | 92002-1170 | 2 | ||
| BREATHER JOINT | 92005 | 14067-006 | 1 | ||
| PIN-DOWEL | 92043 | 92042-007 | 4 | ||
| PIN,10.1X12X14 | 92043A | 92043-4009 | 4 | ||
| BEARING,BALL,#6905 | 92045 | 92045-036 | 1 | ||
| BEARING,BALL,#6306 | 92045A | 92045-037 | 1 | ||
| BEARING-BALL | 92045B | 92045-1041 | 1 | ||
| BEARING-BALL,6004TMB | 92045C | 92045-1118 | 4 | ||
| BEARING-BALL | 92045D | 92045-1127 | 1 | ||
| RACE,26X33X13 | 92048 | 92048-1057 | 2 | ||
| SEAL-OIL,TC32457 | 92049 | 92049-1159 | 1 | ||
| OIL SEAL,CHANGE SHAFT | 92049A | 92050-082 | 1 | ||
| PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 | ||
| PLUG | 92066A | 92066-1282 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0640 | 10 | ||
| BOLT-FLANGED-SMALL | 132A | 132J0650 | 1 | ||
| BOLT-FLANGED-SMALL | 132B | 132J0670 | 3 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 8 | ||
| SCREW CNTSNK HD 6X12 | 221 | 221B0612 | 1 | ||
| SCREW CNTSNK HD 6X16 | 221A | 221B0616 | 3 |
