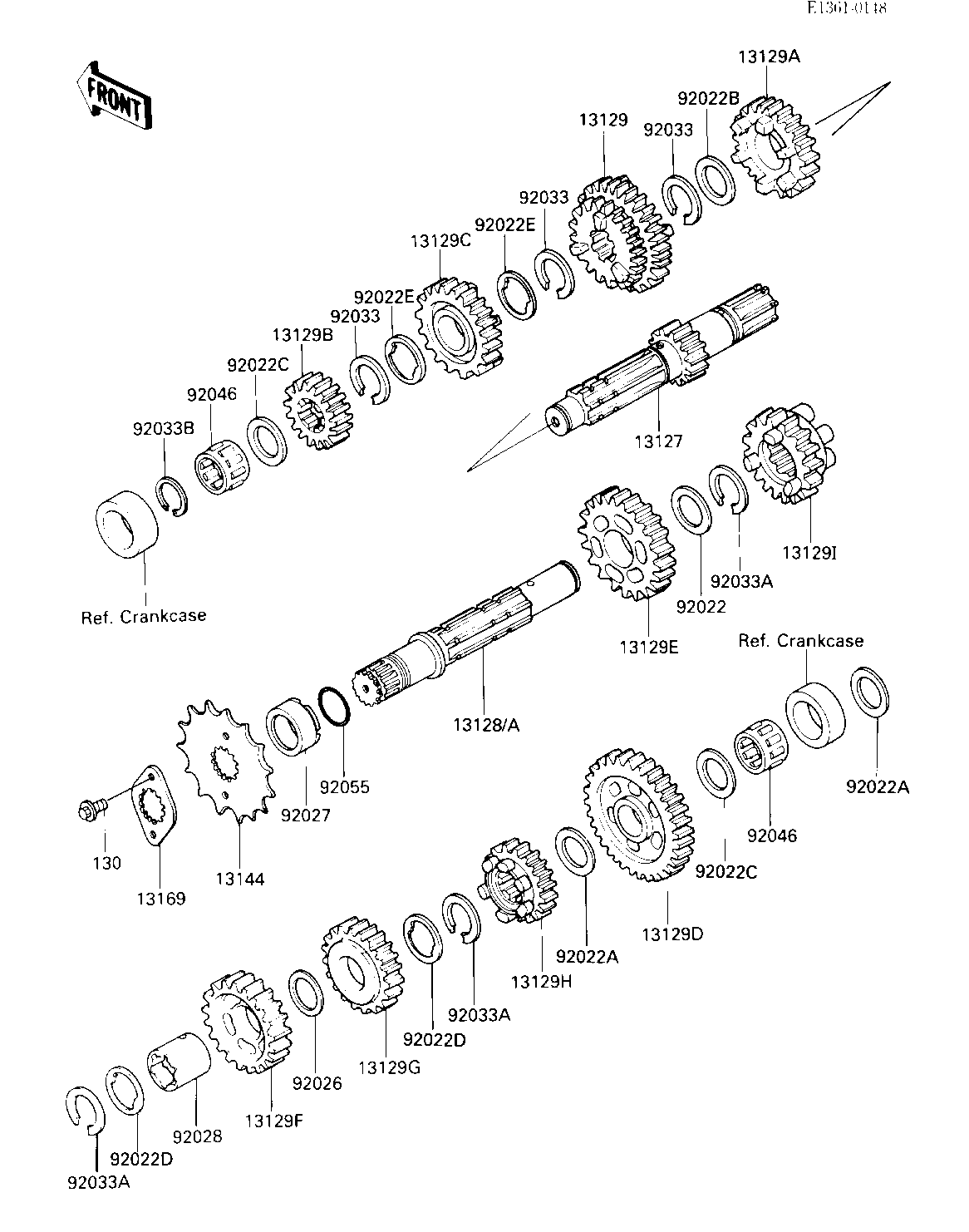

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION | 13127 | 13127-1121 | 1 | ||
| SHAFT-TRANSMISSION OU | 13128 | 13128-1139 | 1 | ( - KL250DE012136) | |
| SHAFT-TRANSMISSION OU | 13128A | 13128-1139 | 1 | (KL250DE012137 - ) | |
| GEAR,INPUT 3RD&4TH,18 | 13129 | 13129-1602 | 1 | ||
| GEAR,INPUT 5TH,20T | 13129A | 13129-1603 | 1 | ||
| GEAR-INPUT 2ND,15T | 13129B | 13129-1646 | 1 | ||
| GEAR-INPUT TOP,21T | 13129C | 13129-1647 | 1 | ||
| GEAR,OUTPUT LOW,30T | 13129D | 13129-1800 | 1 | ||
| GEAR-OUTPUT 2ND,30T | 13129E | 13129-1649 | 1 | ||
| GEAR,OUTPUT 3RD,27T | 13129F | 13129-1650 | 1 | ||
| GEAR-OUTPUT 4TH,25T | 13129G | 13129-1651 | 1 | ||
| GEAR,OUTPUT 5TH,21T | 13129H | 13129-1652 | 1 | ||
| GEAR-OUTPUT TOP,19T | 13129I | 13129-1653 | 1 | ||
| SPROCKET-OUTPUT,15T | 13144 | 13144-1103 | 1 | ||
| PLATE,SPROCKET | 13169 | 13270-1060 | 1 | ||
| WASHER-PLAIN 25MM | 92022 | 92022-159 | 1 | ||
| WASHER,17.3X25X0.5 | 92022A | 92022-1614 | 1 | (KL250DE012137 - ) | |
| WASHER-PLAIN | 92022B | 92022-198 | 1 | ||
| WASHER,17.3X28X1.0 | 92022C | 92022-255 | 2 | ||
| WASHER-LOCK | 92022D | 92024-038 | 2 | ||
| WASHER-LOCK | 92022E | 92024-039 | 2 | ||
| WASHER,THRUST | 92026 | 92026-079 | 1 | ||
| COLLAR | 92027 | 92027-1800 | 1 | ||
| BUSHING,OUTPUT GEAR | 92028 | 92028-1268 | 1 | ||
| CIRCLIP,25MM | 92033 | 92033-025 | 3 | ||
| CIRCLIP | 92033A | 92033-026 | 3 | ||
| CIRCLIP,16MM | 92033B | 92033-032 | 1 | ||
| BEARING-NEEDLE,K17X25 | 92046 | 92046-1156 | 2 | ||
| RING-O | 92055 | 92055-1293 | 1 | ||
| BOLT-FLANGED | 130 | 130G0608 | 2 |
| SHAFT-TRANSMISSION | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OU | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - KL250DE012136) |
| SHAFT-TRANSMISSION OU | |
| REF # | 13128A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (KL250DE012137 - ) |
| GEAR,INPUT 3RD&4TH,18 | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 5TH,20T | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-INPUT 2ND,15T | |
| REF # | 13129B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-INPUT TOP,21T | |
| REF # | 13129C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,30T | |
| REF # | 13129D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-OUTPUT 2ND,30T | |
| REF # | 13129E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,27T | |
| REF # | 13129F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-OUTPUT 4TH,25T | |
| REF # | 13129G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 5TH,21T | |
| REF # | 13129H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-OUTPUT TOP,19T | |
| REF # | 13129I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,15T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,SPROCKET | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN 25MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X25X0.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (KL250DE012137 - ) |
| WASHER-PLAIN | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X28X1.0 | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-LOCK | |
| REF # | 92022D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-LOCK | |
| REF # | 92022E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,OUTPUT GEAR | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,25MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,16MM | |
| REF # | 92033B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,K17X25 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
