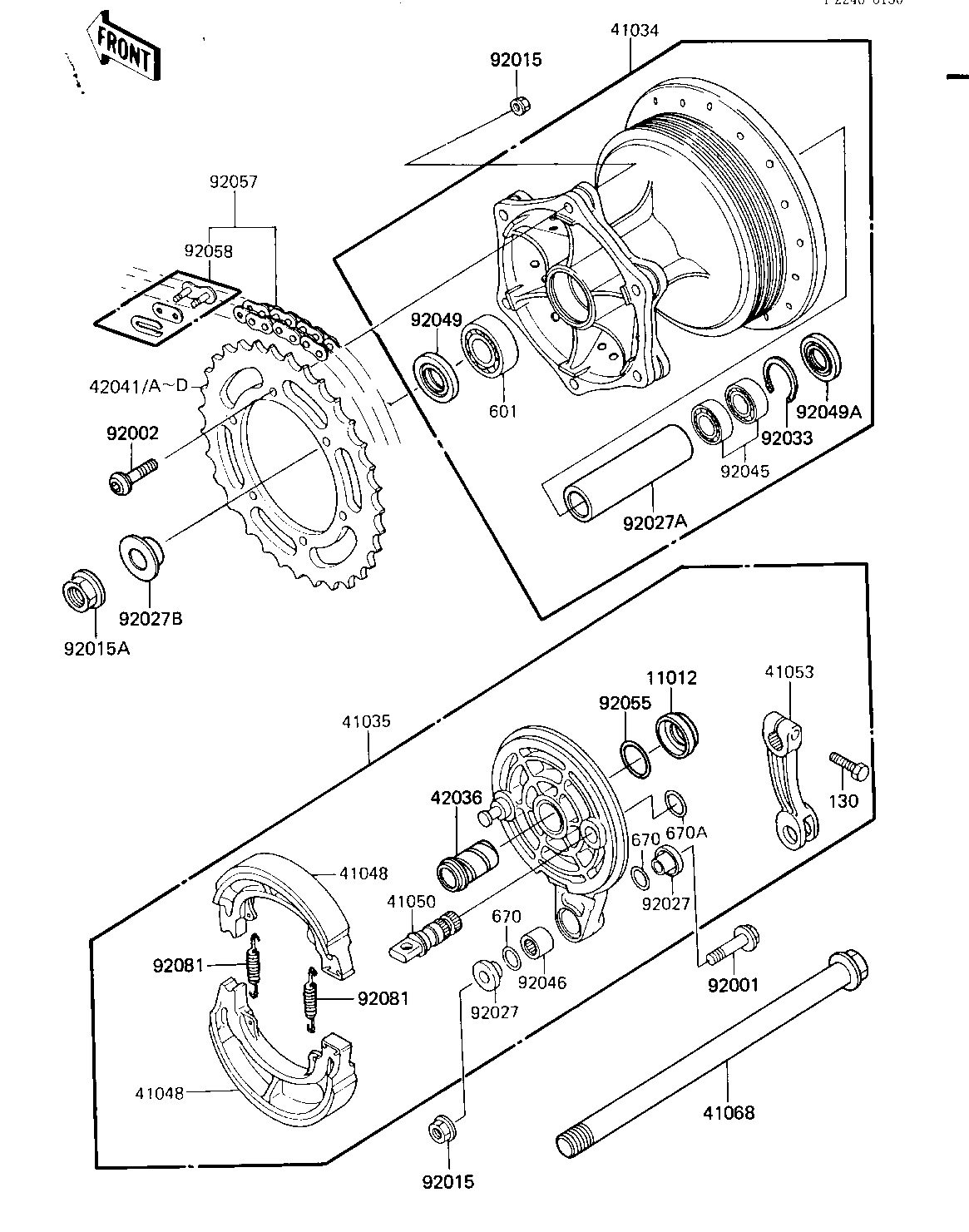

1985 KX125 - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,RR BRAKE 11012 11012-1416 1
DRUM-ASSY,RR BRAKE 41034 41034-1114 1
PANEL-ASSY-BRAKE,RR 41035 41035-1174 1
SHOE-BRAKE 41048 42019-013 2
CAM-BRAKE,REAR 41050 41050-1022 1
LEVER-BRAKE CAM,REAR 41053 41053-1029 1
AXLE,RR 41068 41068-1180 1
SLEEVE,RR BRAKE,L=44 42036 42036-1143 1
SPROCKET-HUB,48T 42041 42041-1103 1
SPROCKET-HUB,49T,AL 42041A 42041-1256 1
SPROCKET-HUB,45T 42041B 42041-1154 1
SPROCKET-HUB,46T,AL 42041C 42041-1193 1
SPROCKET-HUB,47T,AL 42041D 42041-1258 1
BOLT 92001 92001-1578 1
BOLT,8MM 92002 92002-1387 6
NUT-8MM 92015 92015-1143 7
NUT,RR AXLE,20MM 92015A 92015-1461 1
COLLAR 92027 92027-1040 2
COLLAR,L=103 92027A 92027-1827 1
COLLAR,RR AXLE,L=20.5 92027B 92027-1828 1
RING-SNAP,32MM 92033 92033-1191 1
BEARING-BALL,6804LU/2 92045 92045-1135 2
SEAL-OIL,BJNC2 25425 92049 92049-1203 1
SEAL-OIL,BJN 30374 92049A 92049-1205 1
"0" RING,31MM 92055 92055-049 1
DID 520DS5X110L 92057 92057-1184 1
JOINT,DRIVE CHAIN 92058 92058-1013 1
SPRING,BRAKE SHOE 92081 92081-1766 2
BOLT-FLANGED,6X22 130 130G0622 1
BEARING-BALL,#6004U 601 601B6004U 1
"O" RING 670 670B2011 2
"O" RING,12MM 670A 670B2012 1
