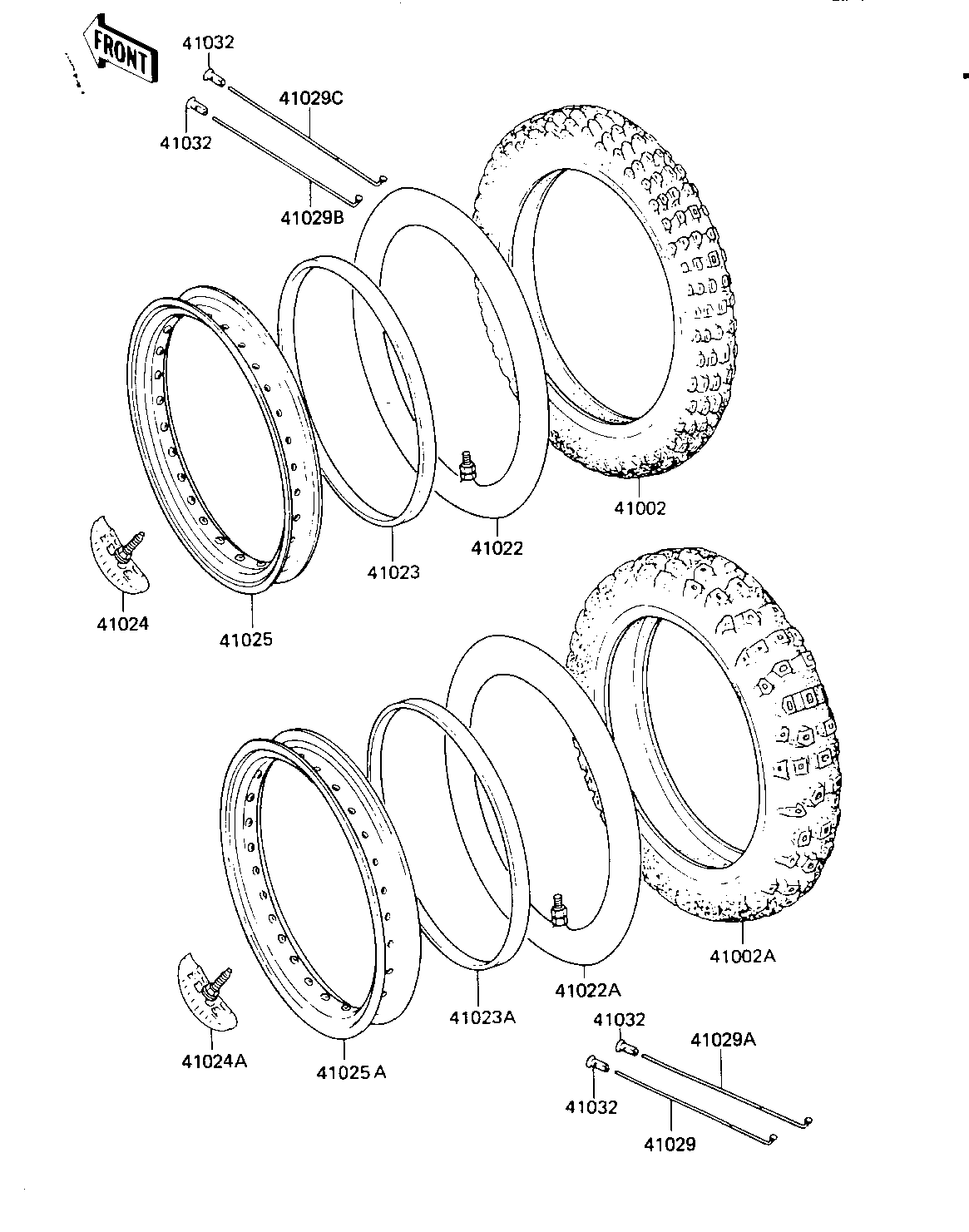

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE | 41002 | 41002-1517 | 1 | ||
| TIRE | 41002A | 41002-1518 | 1 | ||
| TUBE,2.75/3.70-21 | 41022 | 41022-1021 | 1 | ||
| TUBE-TIRE,100/100-18( | 41022A | 41022-1119 | 1 | ||
| BAND-RIM | 41025 | 41023-1055 | 1 | ||
| BAND-RIM | 41023A | 41023-1056 | 1 | ||
| PROTECTOR,BEAD 1.60A | 41024 | 41024-010 | 1 | ||
| PROTECTOR,BEAD,1.85B | 41024A | 41024-011 | 1 | ||
| RIM,FR,1.60X21 | 41025 | 41025-1117 | 1 | ||
| RIM,RR,1.85X18 | 41025A | 41025-1118 | 1 | ||
| SPOKE-INNER,RR,LH | 41029 | 41029-1123 | 18 | ||
| SPOKE-INNER,RR,RH | 41029A | 41029-1124 | 18 | ||
| SPOKE-INNER,FR,LH | 41029B | 41029-1125 | 9 | ||
| SPOKE-INNER,FR,RH | 41029C | 41029-1126 | 27 | ||
| NIPPLE-SPOKE | 41032 | 41032-1054 | 72 |
| TIRE | |
| REF # | 41002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE | |
| REF # | 41002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,2.75/3.70-21 | |
| REF # | 41022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,100/100-18( | |
| REF # | 41022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM | |
| REF # | 41025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM | |
| REF # | 41023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR,BEAD 1.60A | |
| REF # | 41024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR,BEAD,1.85B | |
| REF # | 41024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FR,1.60X21 | |
| REF # | 41025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,RR,1.85X18 | |
| REF # | 41025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,LH | |
| REF # | 41029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,RH | |
| REF # | 41029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,LH | |
| REF # | 41029B |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,RH | |
| REF # | 41029C |
|---|---|
| PART NUMBER | |
| QUANTITY | 27 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-SPOKE | |
| REF # | 41032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 72 |
| DESTINATION | |
| REMARKS | |
