Parts Diagrams |

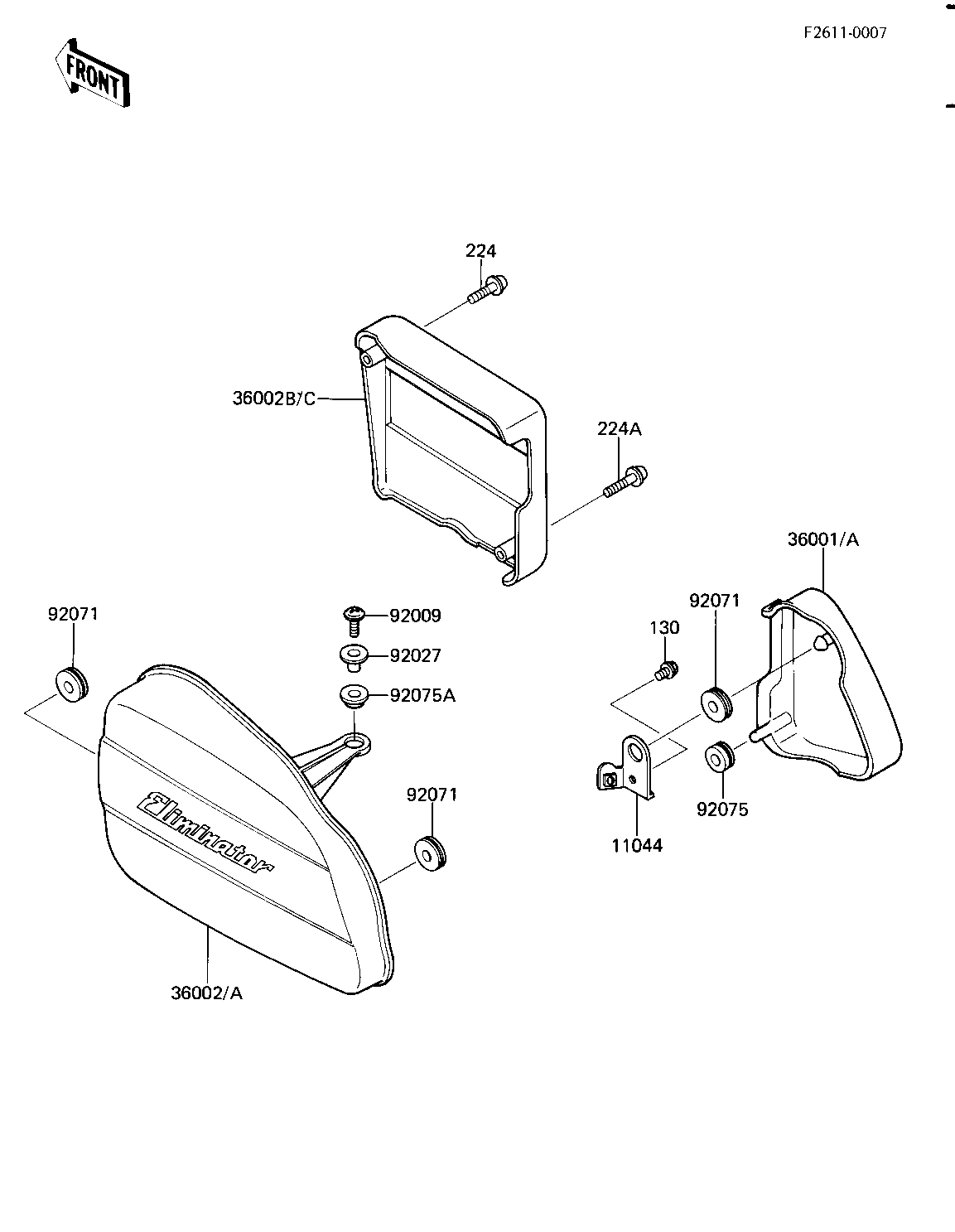

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SIDE COVER | 11044 | 11044-1258 | 1 | ||
| COVER-SIDE,RH,SUB,EBO | 36001 | 36001-1301-H8 | 1 | ||
| COVER-SIDE,RH,SUB,L.R | 36001A | 36001-1301-7V | 1 | ||
| COVER-SIDE,LH,EBONY | 36002 | 36002-5080-H8 | 1 | ||
| COVER-SIDE,LH,L.RED | 36002A | 36002-5080-7V | 1 | ||
| COVER-SIDE,RH,BATTERY | 36002B | 36002-5081-H8 | 1 | ||
| COVER-SIDE,RH,BATTERY | 36002C | 36002-5081-7V | 1 | ||
| SCREW | 92009 | 92009-1663 | 1 | ||
| COLLAR | 92027 | 92027-1795 | 1 | ||
| GROMMET | 92071 | 92071-056 | 3 | ||
| DAMPER RUBBER | 92075 | 92075-076 | 1 | ||
| DAMPER,RUBBER | 92075A | 92075-1244 | 1 | ||
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 1 | ||
| SCREW-PAN-WP-CROS | 224 | 224C0635 | 1 | ||
| SCREW-PAN-WP-CROS | 224A | 224C0640 | 1 |
| BRACKET,SIDE COVER | |
| REF # | 11044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,SUB,EBO | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,SUB,L.R | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,EBONY | |
| REF # | 36002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,L.RED | |
| REF # | 36002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,BATTERY | |
| REF # | 36002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,BATTERY | |
| REF # | 36002C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RUBBER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS | |
| REF # | 224 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS | |
| REF # | 224A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
