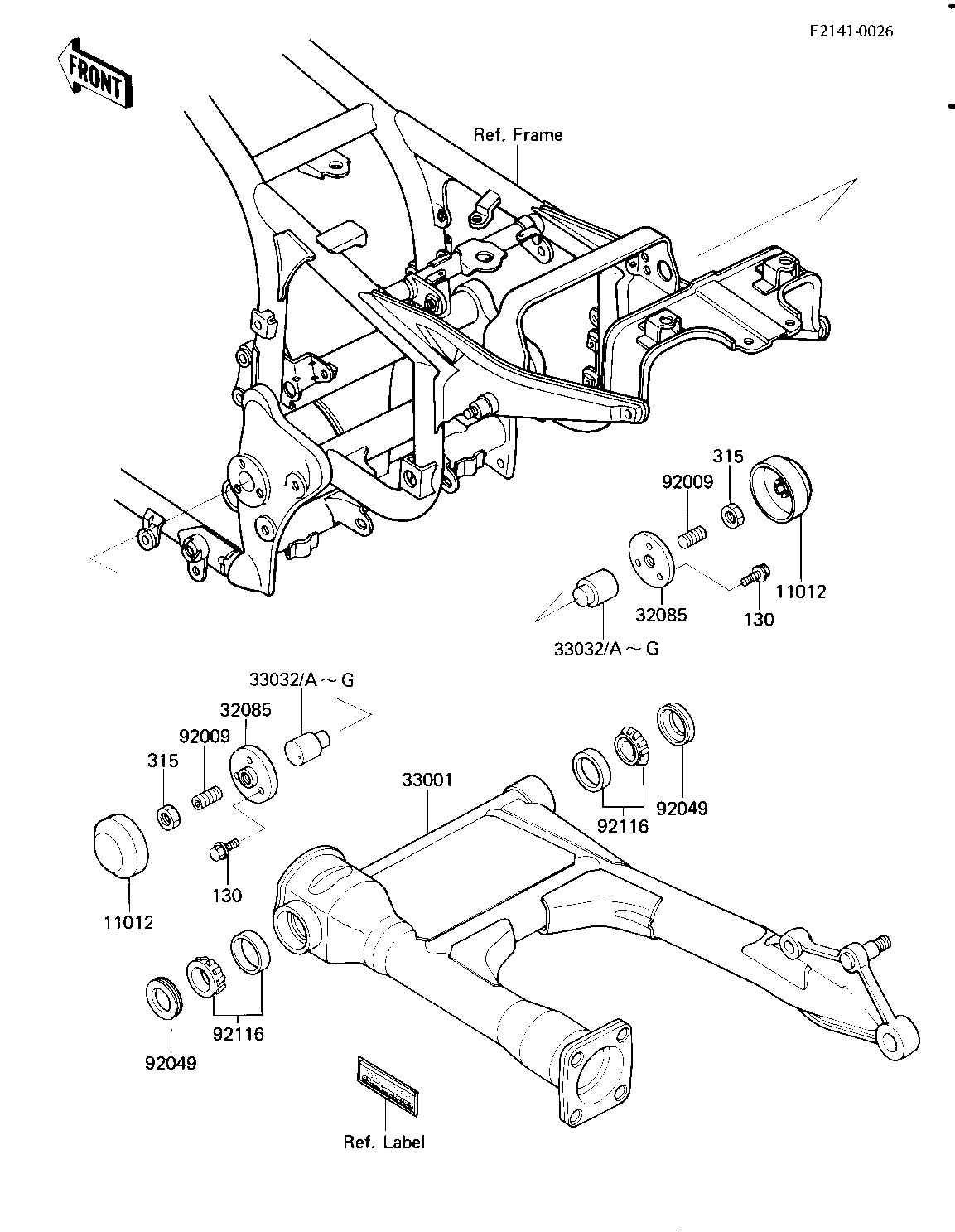

1985 Eliminator - SWING ARM

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 11012-1458 2
STOPPER 32085 32085-1212 2
ARM-COMP-SWING 33001 33001-1244 1
SHAFT-SWING ARM,"A"SI 33032 33032-1117-AA AR
SHAFT-SWING ARM,"B"SI 33032A 33032-1117-BB AR
SHAFT-SWING ARM,"C"SI 33032B 33032-1117-CC AR
SHAFT-SWING ARM,"W"SI 33032C 33032-1117-WW AR
SHAFT-SWING ARM,"X"SI 33032D 33032-1117-XX AR
SHAFT-SWING ARM,"Y"SI 33032E 33032-1117-YY AR
SHAFT-SWING ARM,"Z"SI 33032F 33032-1117-ZZ AR
SHAFT-SWING ARM 33032G 33032-1119 2
SCREW,SOCKET,12X25 92009 92009-1388 2
OIL SEAL,26406 92049 92049-1030 2
BRG,ROLLER,4T30203E1 92116 92116-1001 2
BOLT-FLANGED,6X20 130 130P0620 6
NUT-HEX-FINE,12MM 315 315B1200 2
