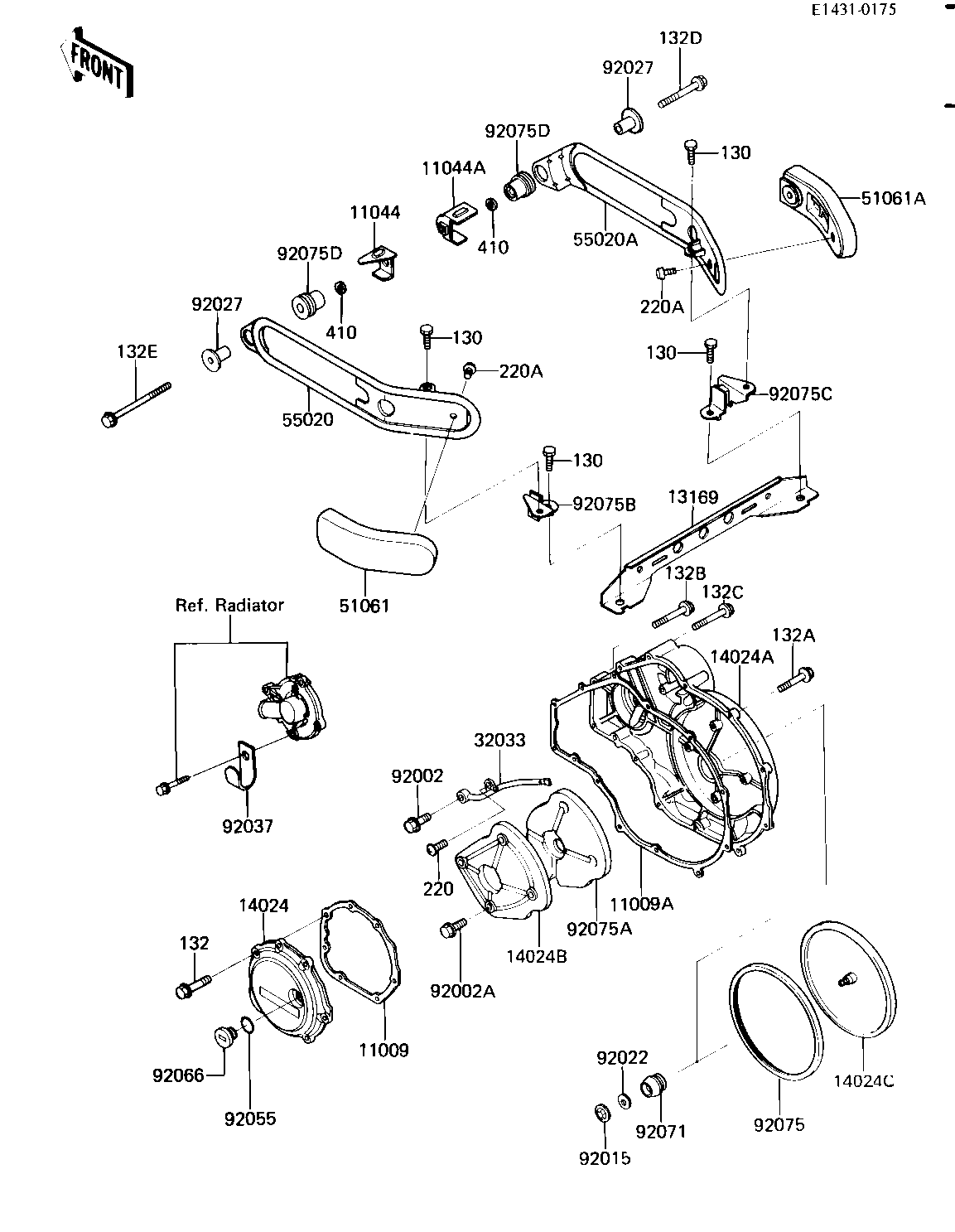

1985 Eliminator - ENGINE COVERS/GUARDS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,COVER,LH 11009 11009-1863 1
GASKET,CLUTCH COVER 11009A 11009-1860 1
BRACKET,LH 11044 11044-1291 1
BRACKET,RH 11044A 11044-1292 1
PLATE,GUARD 13169 13169-1956 1
COVER,LH 14024 14024-1066 1
COVER,CLUTCH 14024A 14024-1067 1
COVER,SOUND ARRESTER 14024B 14025-1740 1
COVER,CLUTCH COVER 14024C 14025-1814 1
PIPE,CLUTCH COVER 32033 32033-1204 1
PAD-KNEE,LH 51061 51061-1051 1
PAD-KNEE,RH 51061A 51061-1052 1
GUARD,LH 55020 55020-1201 1
GUARD,RH 55020A 55020-1202 1
BOLT,BANJO,8X20 92002 92001-1855 1
BOLT,6X10 92002A 92002-1449 4
NUT,LOCK,5MM 92015 92018-004 1
WASHER PL 5.5X20X1.2 92022 92022-104 1
COLLAR 92027 92027-1956 2
CLAMP,WIRING HARNESS 92037 92037-1069 1
RING-O 92055 92055-1146 1
PLUG,COVER,LH 92066 92066-1218 1
GROMMET,CLUTCH COVER 92071 92071-1108 1
DAMPER,CLUTCH COVER 92075 92075-1594 1
DAMPER,SOUND 92075A 92075-1708 1
DAMPER 92075B 92075-1756 1
DAMPER 92075C 92075-1757 1
DAMPER 92075D 92075-1779 2
BOLT-FLANGED 130 130J0610 4
BOLT-FLANGED-SMALL 132 132J0620 7
BOLT-FLANGED-SMALL 132A 132J0625 6
BOLT-FLANGED-SMALL 132B 132J0640 4
BOLT-FLANGED-SMALL 132C 132J0655 2
BOLT-FLANGED-SMALL,8X 132D 132J0860 1
BOLT-FLANGED-SMALL 132E 132J0890 1
UNAVAILABLE IN PRICE BOOK 220 220B0910 1
SCREW-PAN-CROS,6X8 220A 220C0608 2
WASHER PLAIN 8MM 410 410B0800 2
