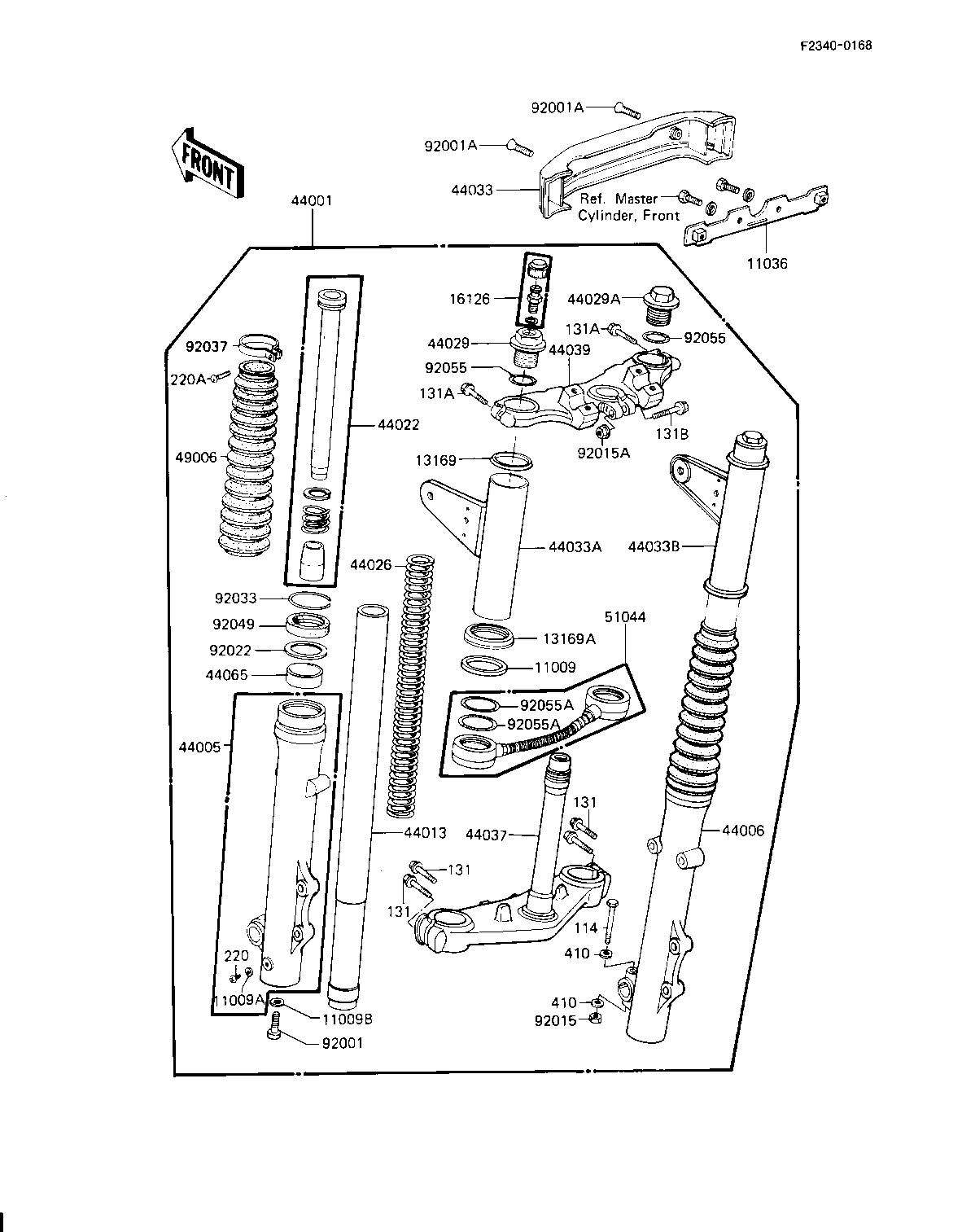

1983 LTD Shaft - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK COVER 11009 11009-1015 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
GASKET,FORK CYLINDER 11009B 44045-057 2
BRACKET-A,FORK COVER 11036 11036-1320 1
PLATE,FORK COVER,UPP 13169 13169-1498 2
PLATE,FORK COVER,LWR 13169A 13169-1499 2
VALVE AIR 16126 16126-1052 1
FORK-FRONT 44001 44001-1394 1
TUBE,LH,FORK OUTER 44005 44005-1067 1
TUBE,RH,FORK OUTER 44006 44006-1067 1
PIPE-FORK INNER 44013 44013-1106 2
CYLINDER-FORK 44022 44022-1045 2
SPRING-FRONT FORK 44026 44026-1180 2
SEAT-FORK SPRING,LH 44029 44029-1044 1
SEAT-FORK SPRING,RH 44029A 44029-1045 1
COVER-FORK 44033 44033-1084 1
COVER-FORK,LH 44033A 44033-1117 1
COVER-FORK,RH 44033B 44033-1118 1
HOLDER-FORK UNDER 44037 44037-1109 1
HOLDER-FORK UPPER 44039 44039-1069 1
BUSHING-FRONT FORK,OU 44065 44065-1091 2
BOOT,FORK,BLACK 49006 49006-1079 2
TUBE-ASSY,AIR,FORK 51044 51044-1024 1
BOLT-FORK CYLINDER 92001 44041-040 2
SCREW-CSK-RD-CROS 92001A 222C0518 2
NUT,LOCK,8MM 92015 92015-1124 1
NUT,FLANGED,8MM 92015A 92015-1408 1
WASHER,FORK OUT PIPE 92022 92022-1262 2
SNAP RING,FORK OUTER 92033 92033-1047 2
CLAMP, BOOT, BLACK 92037 92037-1321 2
SEAL-OIL,FORK OUTER T 92049 92049-1295 2
"0" RING,FORK TOP 92055 92055-1051 2
RING-O,ROD 92055A 92055-1369 4
BOLT,HEX HEAD,8X55 114 114G0855 1
BOLT-FLANGED,8X40,BLA 131 131J0840 4
BOLT-FLANGED,8X45,BLA 131A 131J0845 2
BOLT-FLANGED,8X55,BLA 131B 131J0855 1
SCREW PAN HEAD 4X8 220 220B0408 2
SCREW-PAN-CROS,4X20 220A 220C0420 2
WASHER PLAIN 8MM 410 410B0800 1
