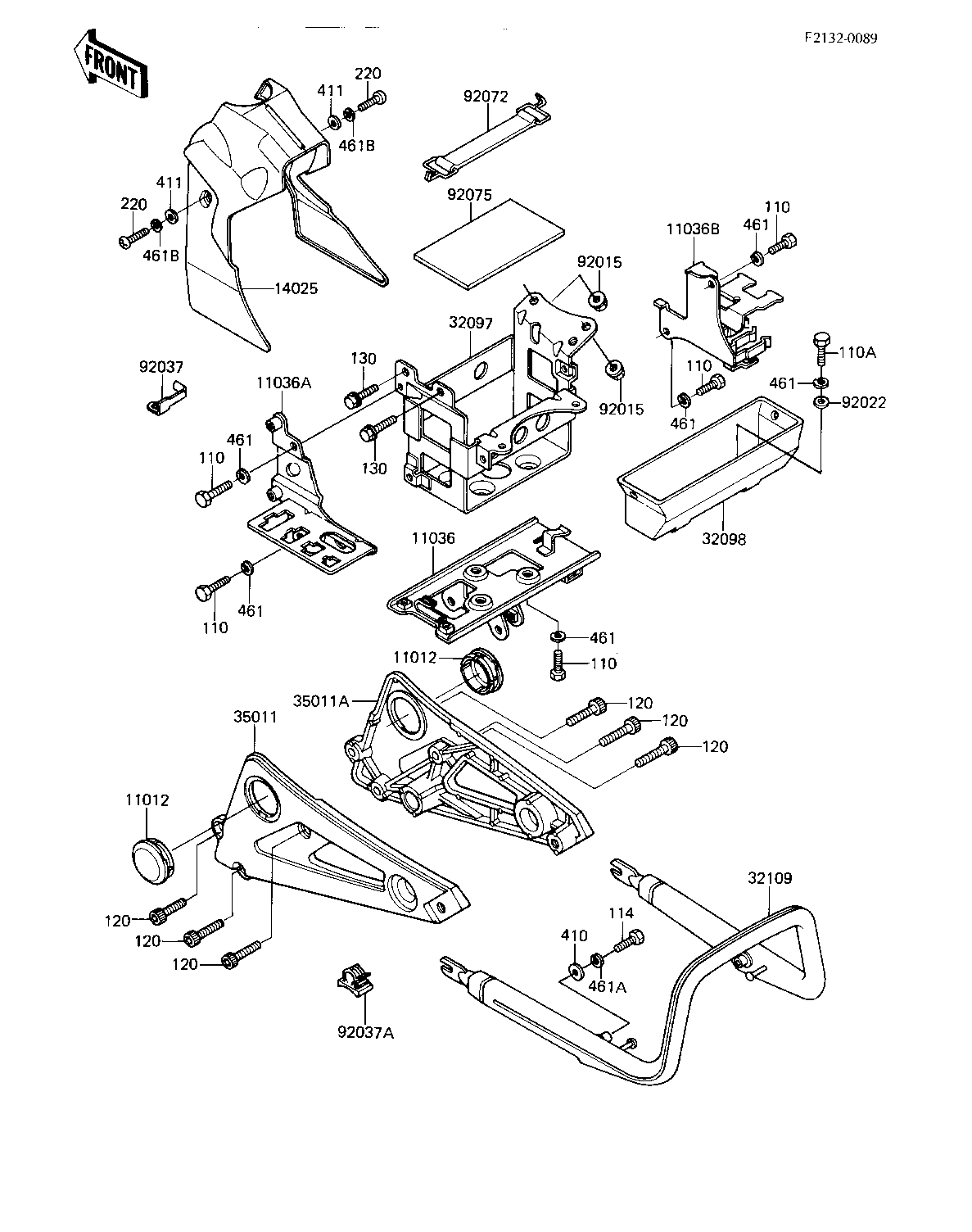

1983 LTD Shaft - BATTERY CASE/TOOL CASE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,SWING ARM SHAFT | 11012 | 11012-1397 | 2 | ||
| BRACKET-A,ELECTRIC,LW | 11036 | 11036-1826 | 1 | ||
| BRACKET-A,ELECTRIC,LH | 11036A | 11036-1827 | 1 | ||
| BRACKET-A,ELECTRIC,RH | 11036B | 11036-1828 | 1 | ||
| COVER,FUEL TANK,FR | 14025 | 14025-1551 | 1 | ||
| CASE-BATTERY | 32097 | 32097-1062 | 1 | ||
| CASE-TOOL | 32098 | 32098-1022 | 1 | ||
| GRIP-FRAME | 32109 | 32109-1040 | 1 | ||
| STAY,MUFFLER,LH | 35011 | 35011-1148 | 1 | ||
| STAY,MUFFLER,RH | 35011A | 35011-1149 | 1 | ||
| NUT-6MM | 92015 | 92015-1078 | 2 | ||
| WASHER,6.5X16X2 | 92022 | 92022-1565 | 2 | ||
| CLAMP,BREATHER TUBE | 92037 | 92037-1246 | 1 | ||
| CLAMP,LEAD WIRE | 92037A | 92037-1340 | 2 | ||
| BAND,BATTERY | 92072 | 92072-1097 | 1 | ||
| DAMPER,BATTERY BASE | 92075 | 92075-1076 | 1 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 7 | ||
| BOLT-UPSET 6X14 | 110A | 112B0614 | 2 | ||
| BOLT-SMALL-UPSET,8X18 | 114 | 115G0818 | 2 | ||
| BOLT-SOCKET | 120 | 120S0825 | 6 | ||
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 2 | ||
| SCREW-PAN-CROS,6X35,B | 220 | 220C0635 | 2 | ||
| WASHER PLAIN 8MM | 410 | 410B0800 | 2 | ||
| WASHER PLAIN | 411 | 411F0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 9 | ||
| WASHER SPRING 8MM | 461A | 461F0800 | 2 | ||
| WASHER-SPRING,6MM,BLA | 461B | 461K0600 | 2 |
