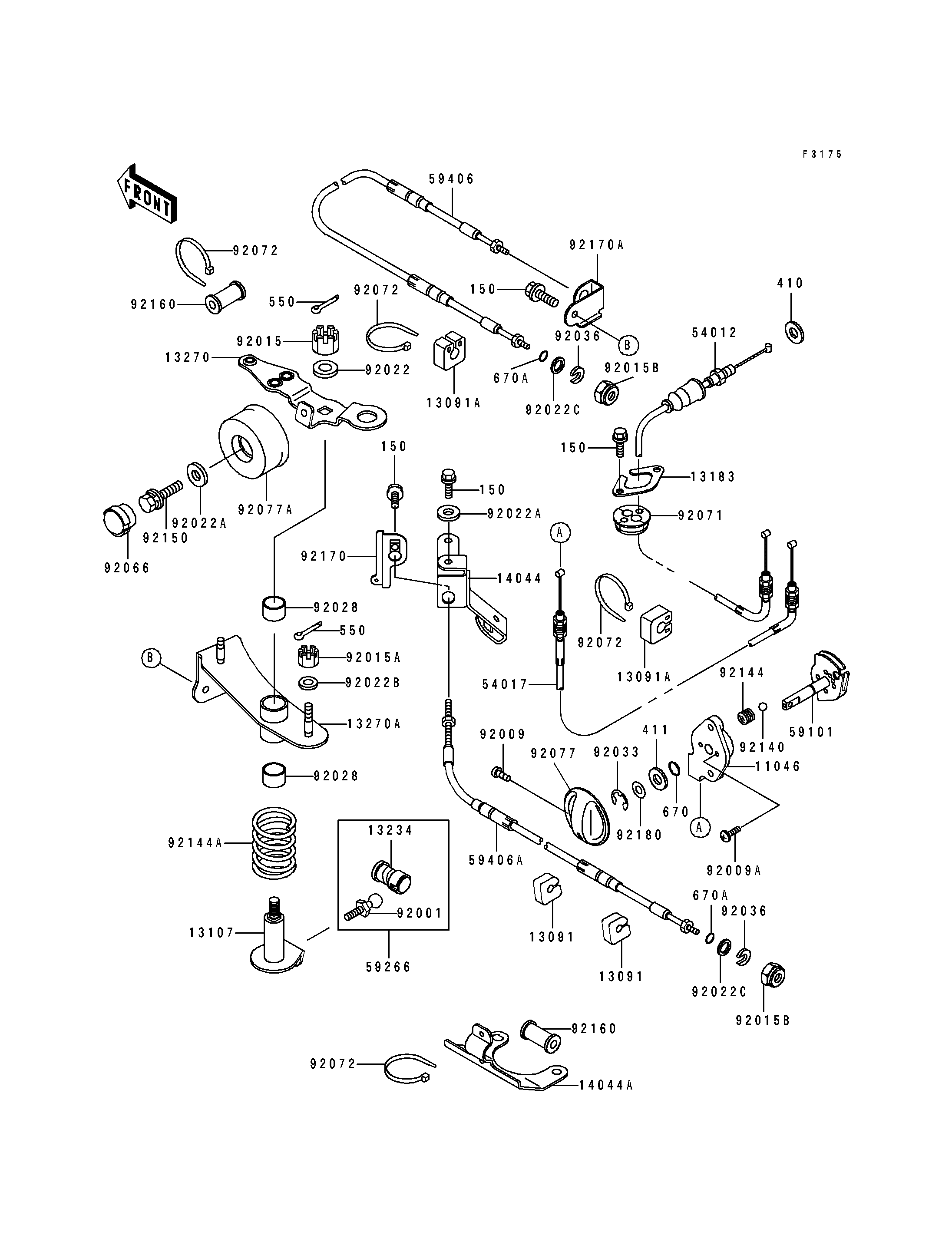

1993 Super Sport XI - Cables(JH750-B1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STARTER CABLE 11046 11046-3712 1
HOLDER 13091 13091-3712 2
HOLDER 13091A 13091-3780 2
SHAFT,TILT NOZZLE 13107 13107-3731 1
PLATE 13183 13183-3810 1
SHAFT-COMP,JOINT 13234 13234-3708 1
PLATE,TILT NOZZLE 13270 13270-3710 1
PLATE,TILT NOZZLE 13270A 13270-3711 1
HOLDER-CABLE 14044 14044-3718 1
HOLDER-CABLE,TILT 14044A 14044-3726 1
CABLE-THROTTLE 54012 54012-3738 1
CABLE-STARTER 54017 54017-3725 1
REEL,STARTER CABLE 59101 59101-3704 1
JOINT-BALL 59266 59266-3707 1
CABLE-STRG,TILT 59406 59406-3731 1
CABLE-STRG 59406A 59406-3732 1
BOLT,BALL,6MM 92001 92001-3703 1
SCREW,4X8 92009 92009-3729 1
SCREW,5X16 92009A 92009-3789 2
NUT,CASTLE,10MM 92015 92015-3718 1
NUT,CASTLE,8MM 92015A 92015-3813 2
NUT,20MM 92015B 92015-526 2
WASHER,32X10.5X4 92022 92022-3023 1
WASHER,6.5X20X1.5 92022A 92022-3710 3
WASHER,8.5X34X3 92022B 92022-3746 2
WASHER 92022C 92022-535 2
BUSHING,BRAKE PEDAL 92028 92028-1532 2
RING-SNAP,7MM 92033 92033-3704 1
RING-SNAP 92036 92036-501 2
PLUG,TILT KNOB 92066 92066-3746 1
GROMMET,HARNESS 92071 92071-3790 1
BAND 92072 92072-3778 4
KNOB 92077 92077-3717 1
KNOB,TILT NOZZLE 92077A 92077-3720 1
BALL,3MM 92140 92140-3702 2
SPRING 92144 92144-3712 2
SPRING,TILT LEVER 92144A 92144-3742 1
BOLT,6X20 92150 92150-3758 1
DAMPER 92160 92160-1129 2
CLAMP,CABLE 92170 92170-3733 1
CLAMP,TILT CABLE 92170A 92170-3739 1
SHIM,8.5X18X0.15 92180 92180-3702 1
BOLT-WS,6X14 150 150R0614 6
W-PLAIN-S,10MM 410 410S1000 1
WASHER-PLAIN,8MM 411 411S0800 1
PIN-COTTER 550 550S2020 3
O RING,8MM 670 670B1508 1
O RING,11MM 670A 670B2011 2
