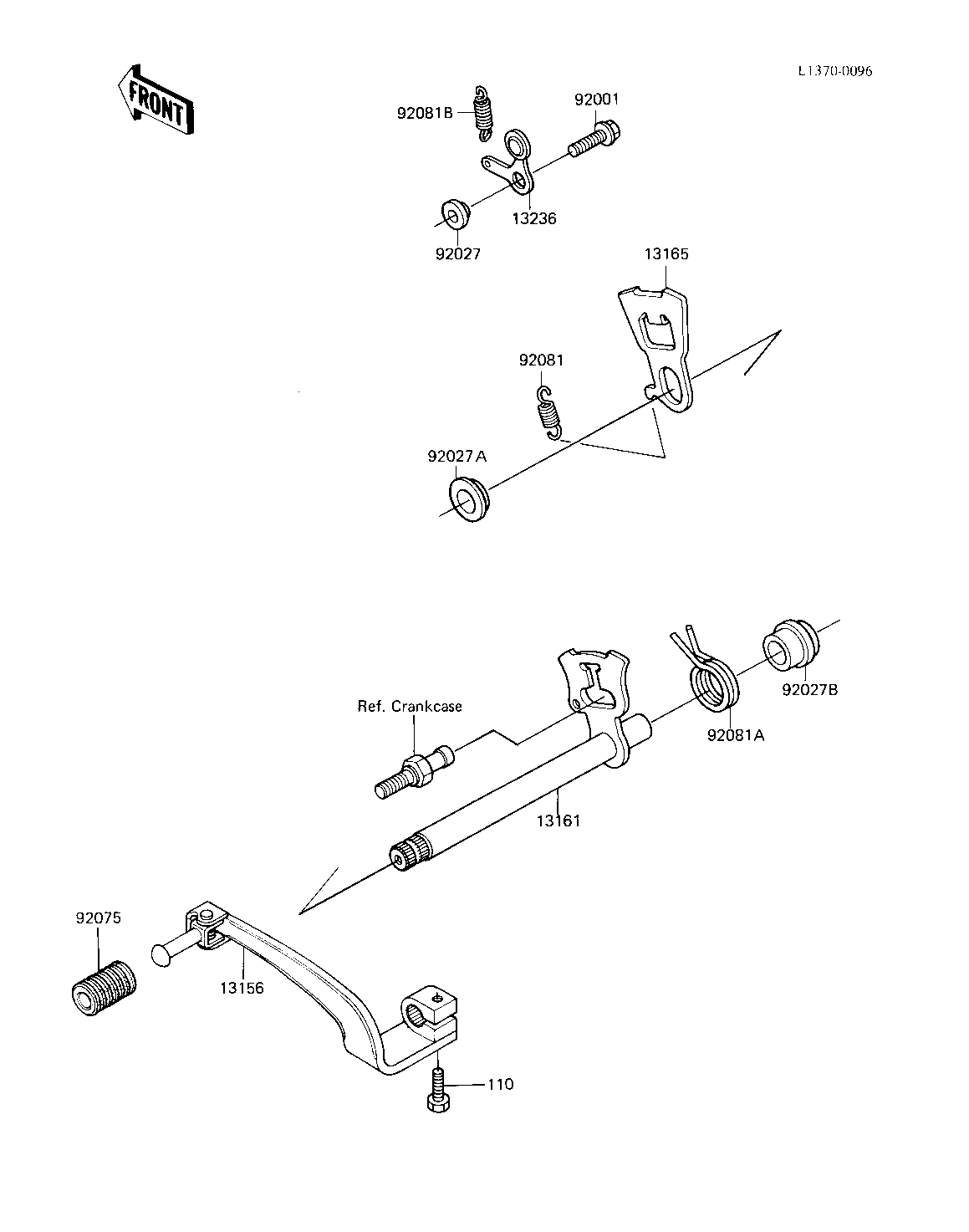

1983 KX250 - GEAR CHANGE MECHANISM ('83 KX250-C1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER-CHANGE,PEDAL | 13156 | 13156-1113 | 1 | ||
| LEVER-COMP-CHANGE SHA | 13161 | 13161-1042 | 1 | ||
| PAWL,CHANGE LEVER | 13165 | 13165-1038 | 1 | ||
| LEVER,CHANGE DRUM | 13236 | 13236-1021 | 1 | ||
| BOLT-FLANGED-SMALL | 92001 | 132G0616 | 1 | ||
| COLLAR | 92027 | 92027-1248 | 1 | ||
| COLLAR,CHANGE SHAFT,L | 92027A | 92027-1512 | 1 | ||
| COLLAR,RETURN SPRING, | 92027B | 92027-1513 | 1 | ||
| DAMPER | 92075 | 92075-1310 | 1 | ||
| SPRING-CHANGE LEVER | 92081 | 92081-076 | 1 | ||
| SPRING,TENTION | 92081A | 92081-1129 | 1 | ||
| SPRING,CHNG DRUM LEV | 92081B | 92083-012 | 1 | ||
| BOLT-UPSET | 110 | 112G0625 | 1 |
