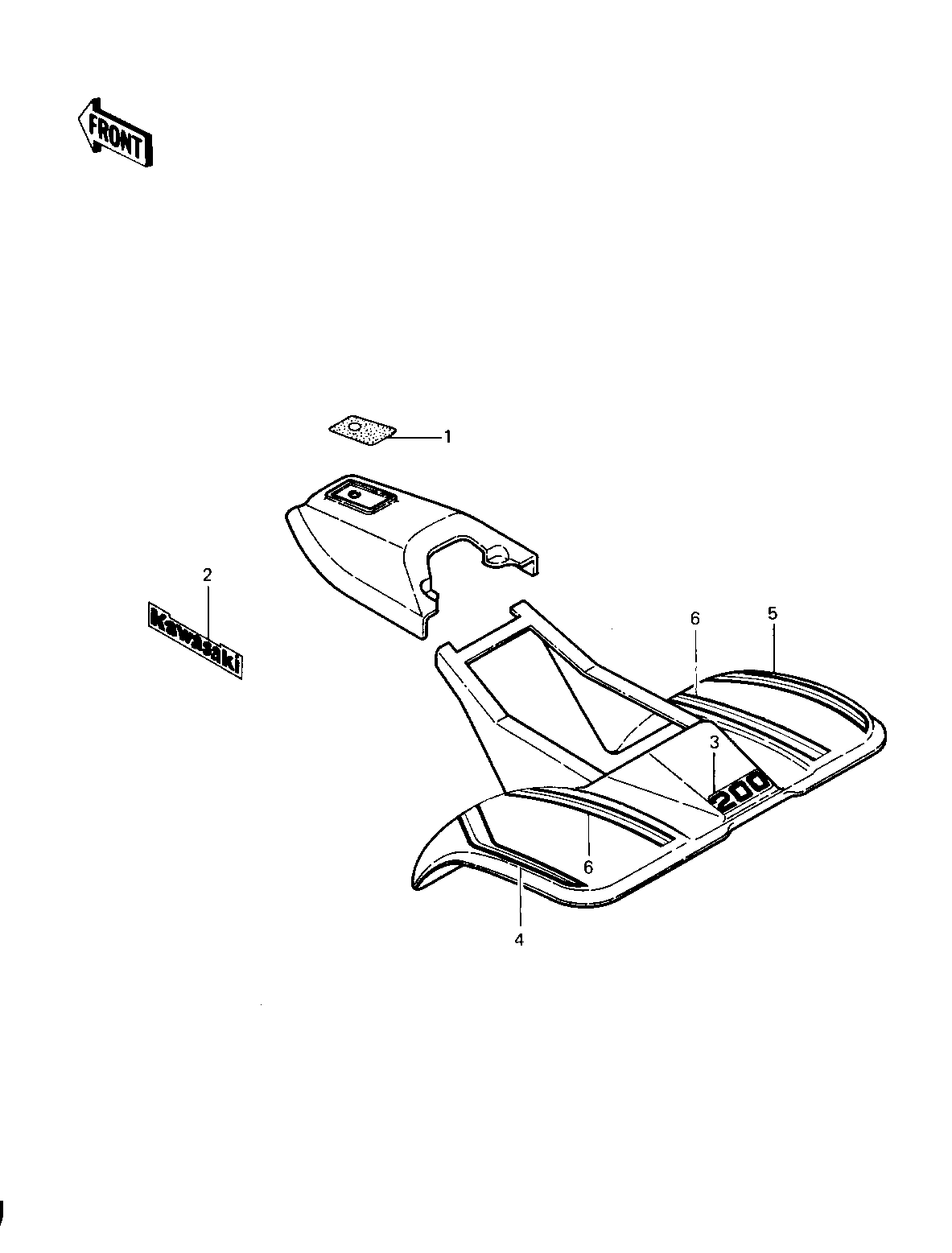

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL-IGNITION PLATE | 1 | 56030-4001 | 1 | ||
| EMBLEM KAWASAKI,BLACK | 2 | 56014-4034 | 2 | EBONY | |
| EMBLEM,KAWASAKI,RED | 2 | 56014-4033 | 2 | WILDFIRE RED | |
| MARK 200 BLACK | 3 | 56018-4018 | 1 | EBONY | |
| MARK 200 RED | 3 | 56018-4017 | 1 | WILDFIRE RED | |
| PATTERN FENDER LH,BLK | 4 | 56027-4132 | 1 | EBONY | |
| PATTERN FENDER,LH,RED | 4 | 56027-4130 | 1 | WILDFIRE RED | |
| PATTERN FENDER RH,BLK | 5 | 56027-4131 | 1 | EBONY | |
| PATTERN FENDER,RH,RED | 5 | 56027-4129 | 1 | WILDFIRE RED | |
| PATTERN FENDER,BLACK | 6 | 56027-4134 | 2 | EBONY | |
| PATTERN FENDER,RED | 6 | 56027-4133 | 2 | WILDFIRE RED |
| LABEL-IGNITION PLATE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| EMBLEM KAWASAKI,BLACK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | EBONY |
| EMBLEM,KAWASAKI,RED | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | WILDFIRE RED |
| MARK 200 BLACK | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | EBONY |
| MARK 200 RED | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | WILDFIRE RED |
| PATTERN FENDER LH,BLK | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | EBONY |
| PATTERN FENDER,LH,RED | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | WILDFIRE RED |
| PATTERN FENDER RH,BLK | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | EBONY |
| PATTERN FENDER,RH,RED | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | WILDFIRE RED |
| PATTERN FENDER,BLACK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | EBONY |
| PATTERN FENDER,RED | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | WILDFIRE RED |
