Parts Diagrams |

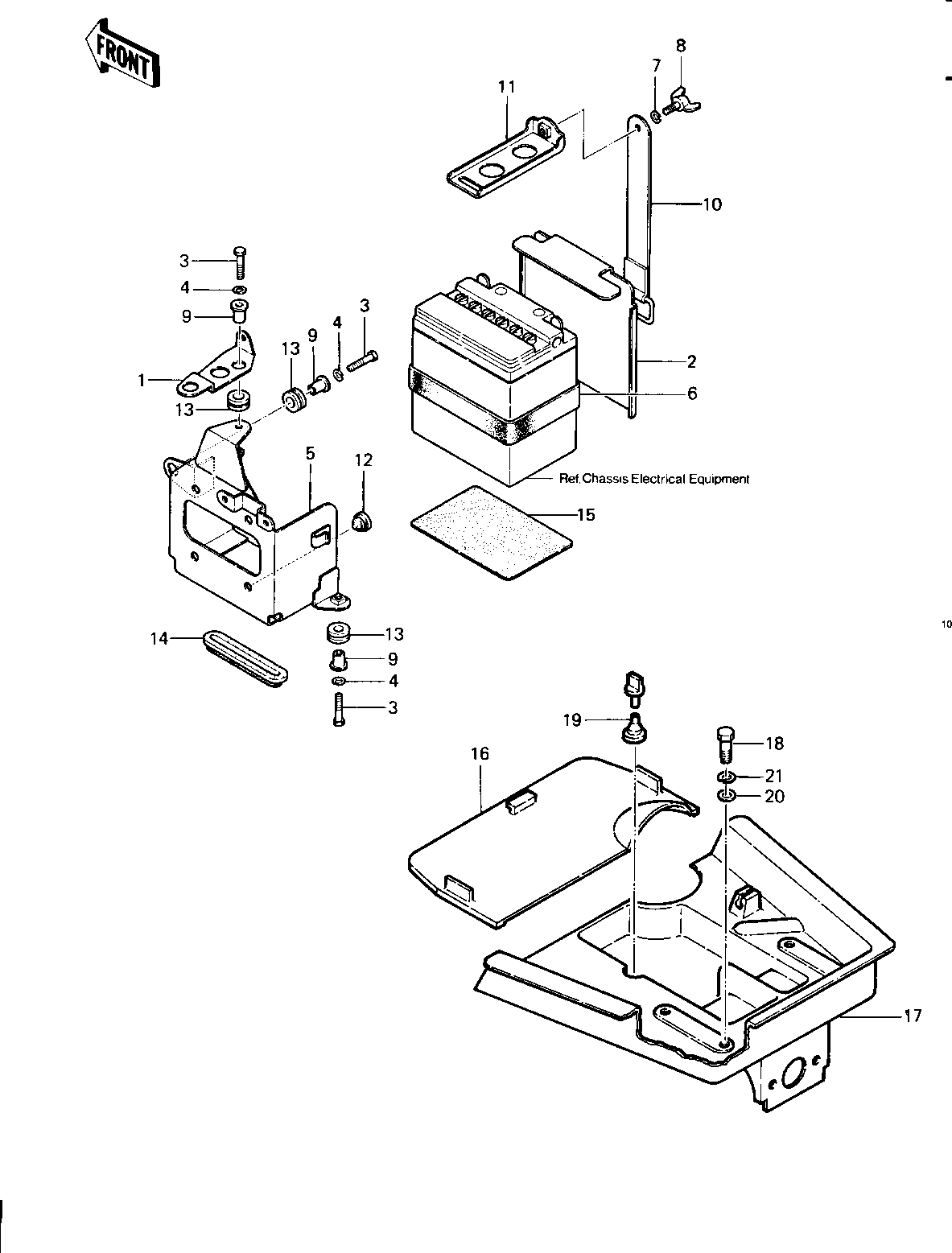

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,BLACK | 1 | 11034-4202 | 1 | ||
| COVER | 2 | 14025-4007 | 1 | ||
| BOLT-UPSET,6X20 | 3 | 112G0620 | 3 | ||
| WASHER SPRING 6MM | 4 | 461F0600 | 3 | ||
| MAT-BATTERY SIDE | 5 | 32103-023 | 1 | ||
| MAT-BATTERY SIDE | 6 | 32103-023 | 1 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 1 | ||
| BOLT,CLNR ELEMENT | 8 | 92003-199 | 1 | ||
| COLLAR | 9 | 92027-1045 | 3 | ||
| BAND,BATTERY | 10 | 92072-4005 | 1 | ||
| BAND,BATTERY | 11 | 92072-4006 | 1 | ||
| DAMPER RUBBER | 12 | 92075-078 | 4 | ||
| DAMPER RUBBER | 13 | 92075-277 | 3 | ||
| DAMPER RUBBER | 14 | 92075-280 | 1 | ||
| DAMPER,BATTRY CASE | 15 | 92075-4019 | 1 | ||
| COVER-TOOL CASE | 16 | 14025-4022 | 1 | ||
| CASE,TOOL | 17 | 32098-4002 | 1 | ||
| BOLT-UPSET | 18 | 112G0625 | 4 | ||
| BAND,HEAD LAMP | 19 | 92072-077 | 1 | ||
| WASHER 6.5X20X1.6T | 20 | 92022-125 | 4 | ||
| WASHER SPRING 6MM | 21 | 461F0600 | 4 |
| BRACKET,BLACK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X20 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| MAT-BATTERY SIDE | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAT-BATTERY SIDE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLNR ELEMENT | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,BATTRY CASE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-TOOL CASE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,TOOL | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BAND,HEAD LAMP | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
