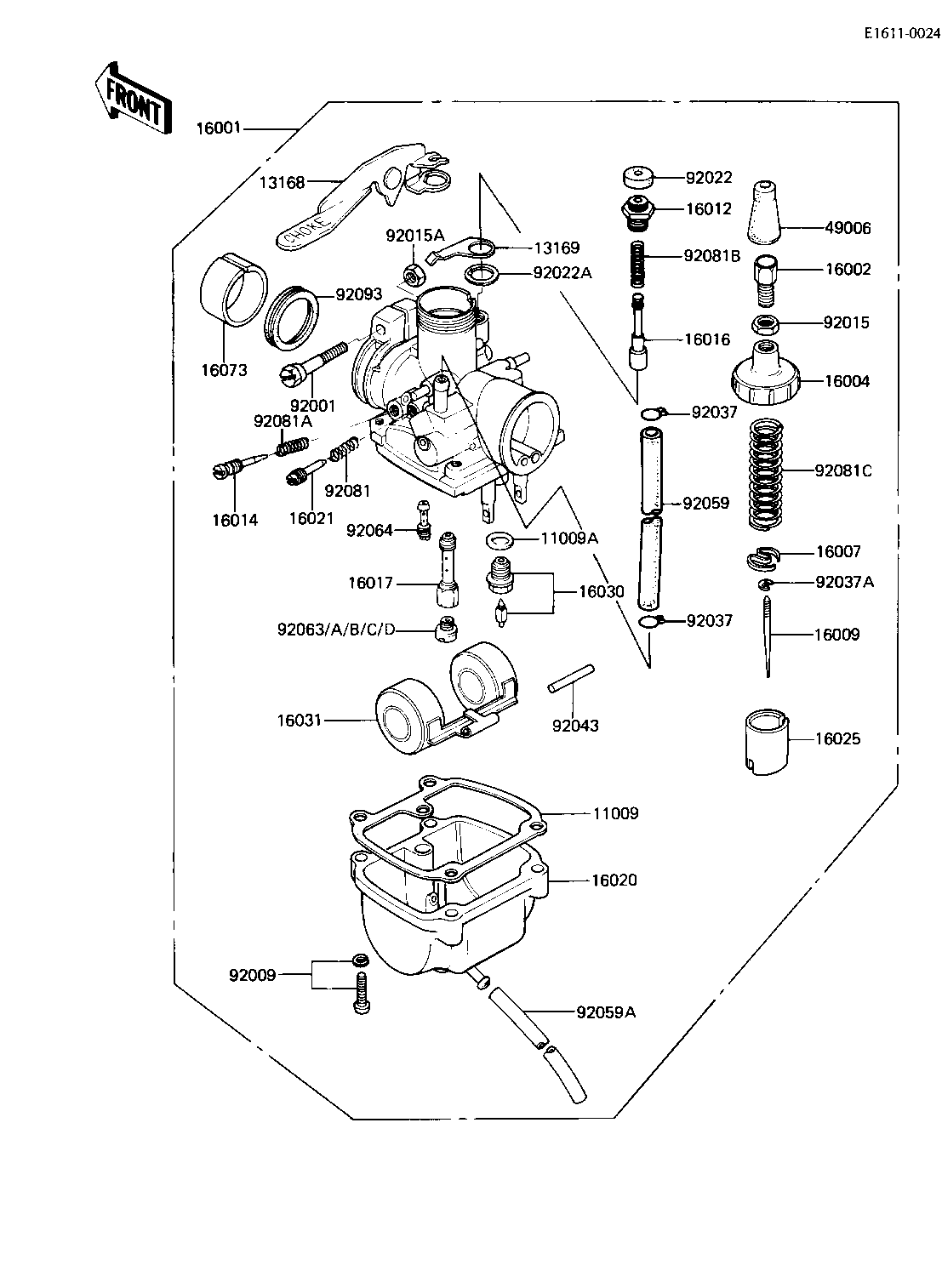

1982 AR50-A1 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 16019-011 1
WASHER VALVE SEAT 11009A 16029-002 1
LEVER,STARTER 13168 13168-1347 1
PLATE,STARTER PLUNGER 13169 13169-1437 1
CARBURETOR 16001 16001-1340 1
ADJUSTER-CABLE 16002 16002-1008 1
CAP-CHAMBER 16004 16004-1011 1
SEAT-SPRING 16007 16007-1043 1
NEEDLE-JET,3I7-3 16009 16009-1092 1
CAP,PLUNGER 16012 16012-016 1
SCREW-PILOT AIR 16014 16014-1030 1
PLUNGER,STARTER 16016 16016-1002 1
JET-NEEDLE,D-8 16017 16017-1089 1
CHAMBER-FLOAT 16020 16020-1001 1
SCREW-THROTTLE STOP 16021 16021-1036 1
VALVE-THROTTLE,CA2.0 16025 16025-1059 1
VALVE-FLOAT,1.8 16030 16030-1017 1
FLOAT 16031 16031-1014 1
INSULATOR 16073 16073-1011 1
CAP,CARBURETOR 49006 16036-007 1
BOLT,CARBURETOR CLAMP 92001 92001-1476 1
SCREW-FLOAT CHAMBER 92009 16033-012 4
NUT-CABLE ADJUST LOCK 92015 16003-006 1
NUT 92015A 92015-1154 1
CAP,STARTER PLUNGER 92022 16039-015 1
WASHER 92022A 92022-1271 1
CLAMP-PIPE 92037 92037-072 2
CLAMP 92037A 92037-1272 1
FLOAT PIN 92043 16032-003 1
HOSE,FUEL TAP DIAPHRA 92059 92059-1023 1
TUBE,3X5X250,BLACK 92059A 92059-1308 1
JET-MAIN NO 112.5R 92063 92063-075 1
JET-MAIN NO 115R 92063A 92063-076 1
JET-MAIN NO 117.5R 92063B 92063-077 1
MAIN JET NO 120R 92063C 92063-078 1
MAIN JET,#A100 92063D 92063-1033 1
PILOT JET #17.5 ISO 92064 92064-020 1
SPRING-THR STOP SCREW 92081 16022-007 1
SPRING,AIR SCREW 92081A 92081-1153 1
SPRING 92081B 92081-1398 1
SPRING,THROTTLE VALVE 92081C 92081-1399 1
SEAL 92093 92093-1062 1
