Parts Diagrams |

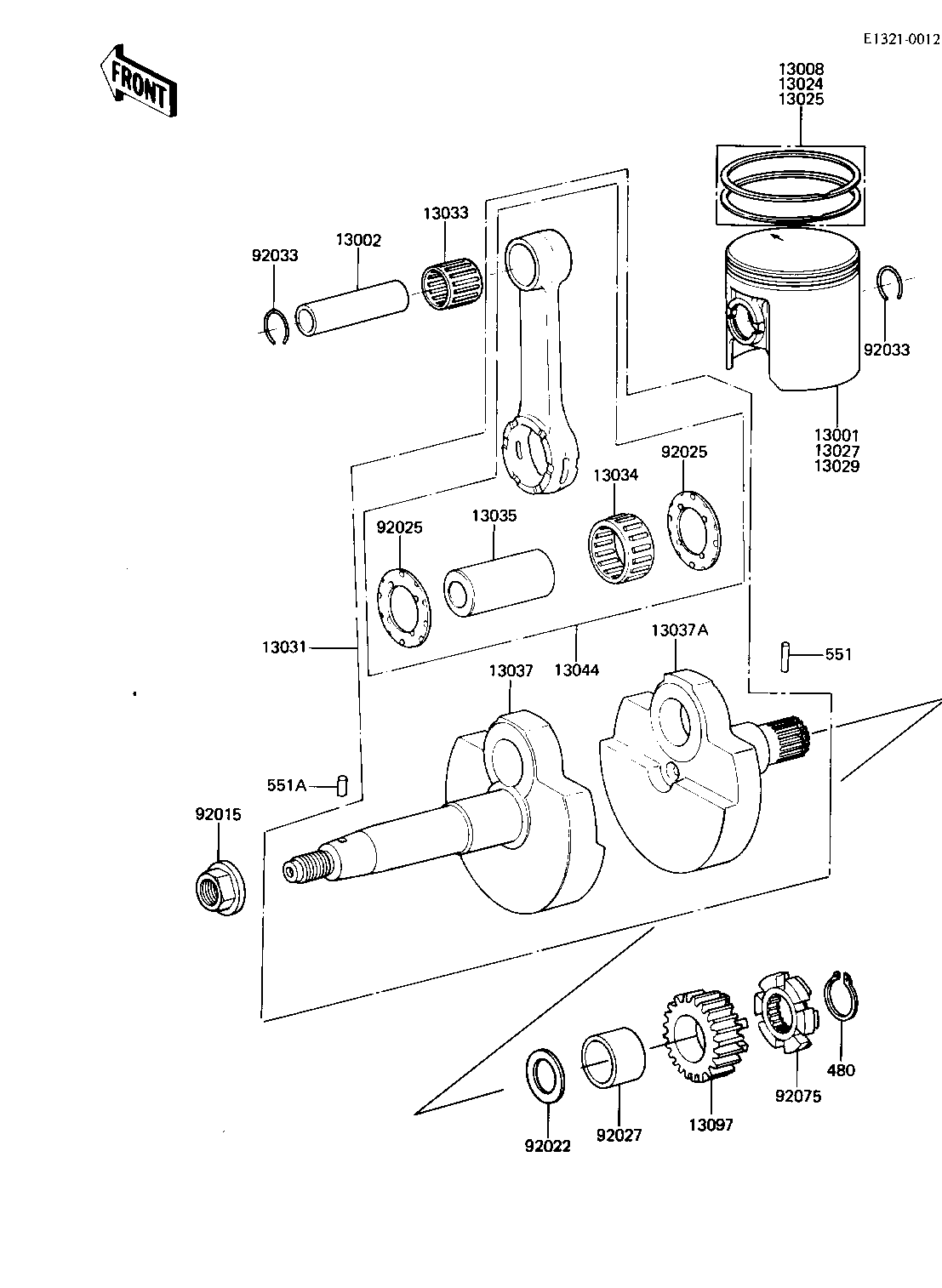

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON-ENGINE,STD | 13001 | 13001-1074 | 1 | ||
| PIN-PISTON | 13002 | 13002-1014 | 1 | ||
| RING-SET-PISTON,STD | 13008 | 13008-5040 | 1 | ||
| RING-SET PISTON LL | 13024 | 13024-1008 | 1 | ||
| RING-SET PISTON L | 13025 | 13025-1008 | 1 | ||
| PISTON-ENGINE LL | 13027 | 13027-1023 | 1 | ||
| PISTON-ENGINE L | 13029 | 13029-1023 | 1 | ||
| CRANKSHAFT-COMP | 13031 | 13031-1075 | 1 | ||
| BEARING-SMALL END | 13033 | 13033-1009 | 1 | ||
| BEARING-BIG END,PK18X | 13034 | 13034-1029 | 1 | ||
| PIN-CRANK | 13035 | 13035-1073 | 1 | ||
| CRANKSHAFT,LH | 13037 | 13037-1109 | 1 | ||
| CRANKSHAFT,RH | 13037A | 13037-1110 | 1 | ||
| SET-CONNECTING ROD | 13044 | 13044-5020 | 1 | ||
| GEAR-PRIMARY SPUR,21T | 13097 | 13097-1052 | 1 | ||
| NUT,10MM | 92015 | 92015-1415 | 1 | ||
| WASHER,PLAIN | 92022 | 92022-268 | 1 | ||
| SHIM,CRANK SHAFT | 92025 | 92025-1199 | 2 | ||
| COLLAR,15.65X19X13 | 92027 | 92027-1358 | 1 | ||
| CIRCLIP PISTON PIN | 92033 | 92036-007 | 2 | ||
| DAMPER,GEAR | 92075 | 92075-1325 | 1 | ||
| CIRCLIP 14MM | 480 | 480J1400 | 1 | ||
| PIN-DOWEL,2X12 | 551 | 551A0212 | 1 | ||
| PIN,DOWEL,3X6 | 551A | 551A0306 | 1 |
| PISTON-ENGINE,STD | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON,STD | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SET PISTON LL | |
| REF # | 13024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SET PISTON L | |
| REF # | 13025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE LL | |
| REF # | 13027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE L | |
| REF # | 13029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-SMALL END | |
| REF # | 13033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BIG END,PK18X | |
| REF # | 13034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-CRANK | |
| REF # | 13035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,LH | |
| REF # | 13037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,RH | |
| REF # | 13037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SET-CONNECTING ROD | |
| REF # | 13044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-PRIMARY SPUR,21T | |
| REF # | 13097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIM,CRANK SHAFT | |
| REF # | 92025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,15.65X19X13 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP PISTON PIN | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,GEAR | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 14MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL,2X12 | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,3X6 | |
| REF # | 551A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
