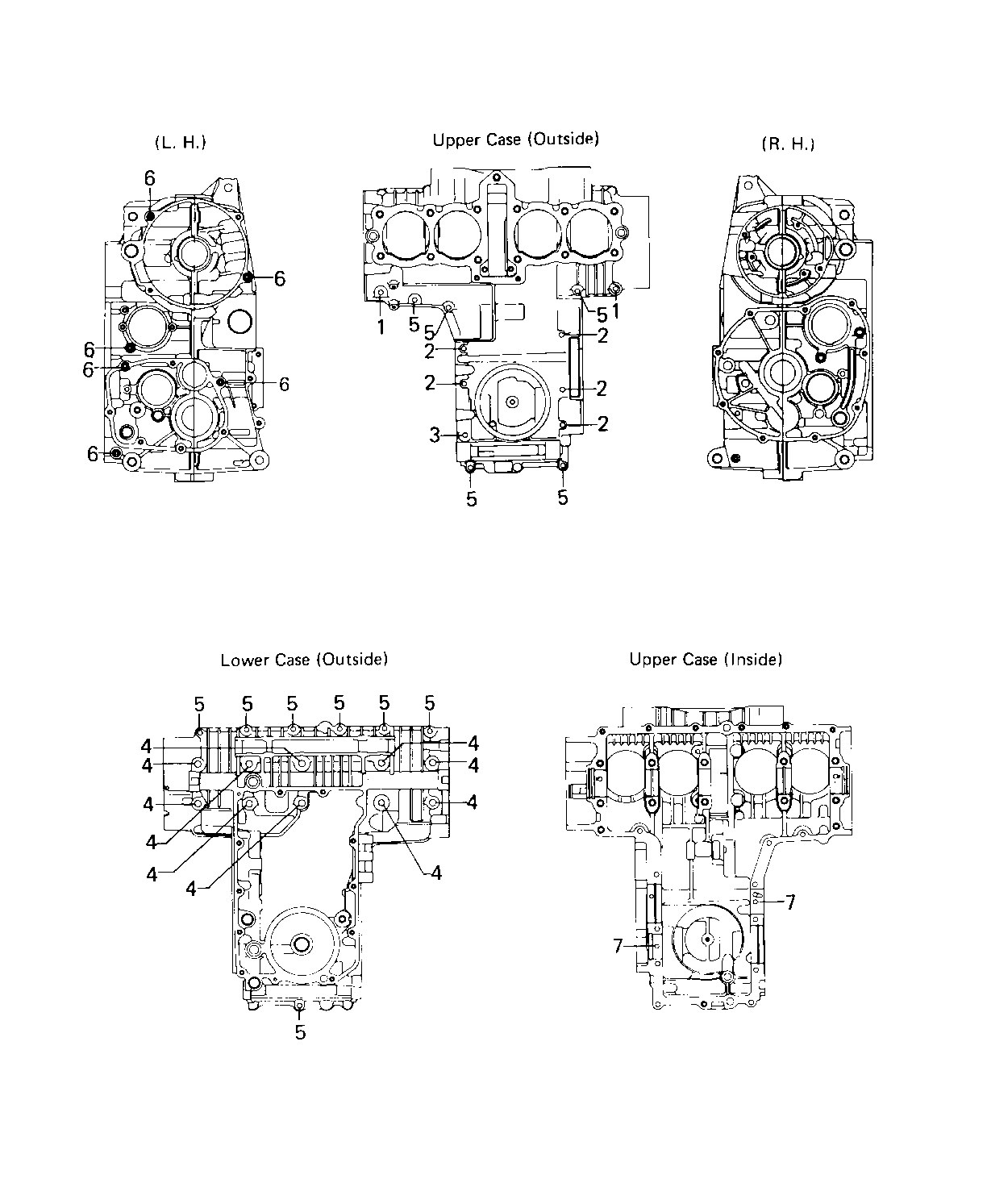

1980 LTD - CRANKCASE BOLT & STUD PATTERN ('80-'81 C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,HEX HEAD,6X54 | 1 | 92003-110 | 2 | ||
| BOLT-FLANGED,6X95 | 2 | 130G0695 | 5 | ||
| BOLT,6X105 | 3 | 92003-194 | 1 | ||
| BOLT-FLANGED,8X95 | 4 | 130P0895 | 10 | ||
| BOLT,HEX HEAD,6X41 | 5 | 92003-109 | 12 | ||
| PIN-DOWEL | 6 | 92042-007 | 6 | ||
| PIN DOWEL 6MM | 7 | 92042-016 | (2 | REF. CRANKCASE |
