Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11021
56007
56008
92071
92071
92072
92104
92107
92107A
92110
92110A
92110B
92110C
92110D
92112
92126

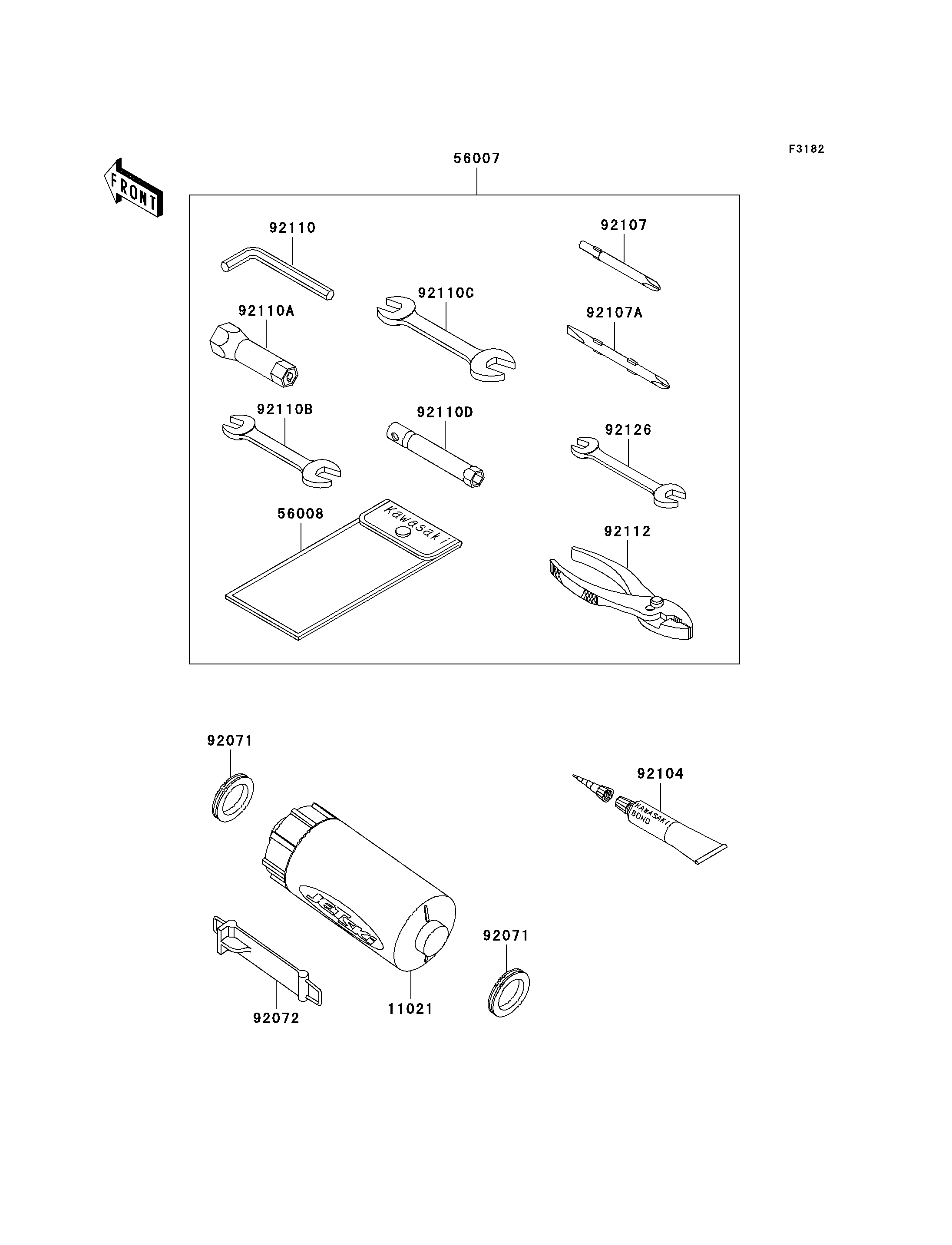

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-ASSY,TOOL | 11021 | 11021-3706 | 1 | ||
| TOOL-KIT | 56007 | 56007-3711 | 1 | ||
| BAG,TOOL | 56008 | 56008-006 | 1 | ||
| GROMMET | 92071 | 92071-3831 | 2 | ||
| BAND,TOOL CASE | 92072 | 92072-3842 | 1 | ||
| GASKET-LIQUID,TUBE,100G,SILVER | 92104 | 92104-002 | AR | (OPTION) | |
| TOOL-DRIVER,#3PHILLIPS | 92107 | 92107-005 | 1 | ||
| TOOL-DRIVER,#2PHILLIPS&SLOT | 92107A | 92107-1051 | 1 | ||
| TOOL-WRENCH,ALLEN,5MM | 92110 | 92110-1015 | 1 | ||
| TOOL-WRENCH,BOX,21MM | 92110A | 92110-1113 | 1 | ||
| TOOL-WRENCH,OPEN END,10X12 | 92110B | 92110-1152 | 1 | ||
| TOOL-WRENCH,OPEN END,14X17 | 92110C | 92110-1153 | 1 | ||
| TOOL-WRENCH,BOX,10MM | 92110D | 92110-1156 | 1 | ||
| TOOL-PLIERS | 92112 | 92112-1001 | 1 | ||
| TOOL-WRENCH,OPEN END,8X10 | 92126 | 92126-004 | 1 |
