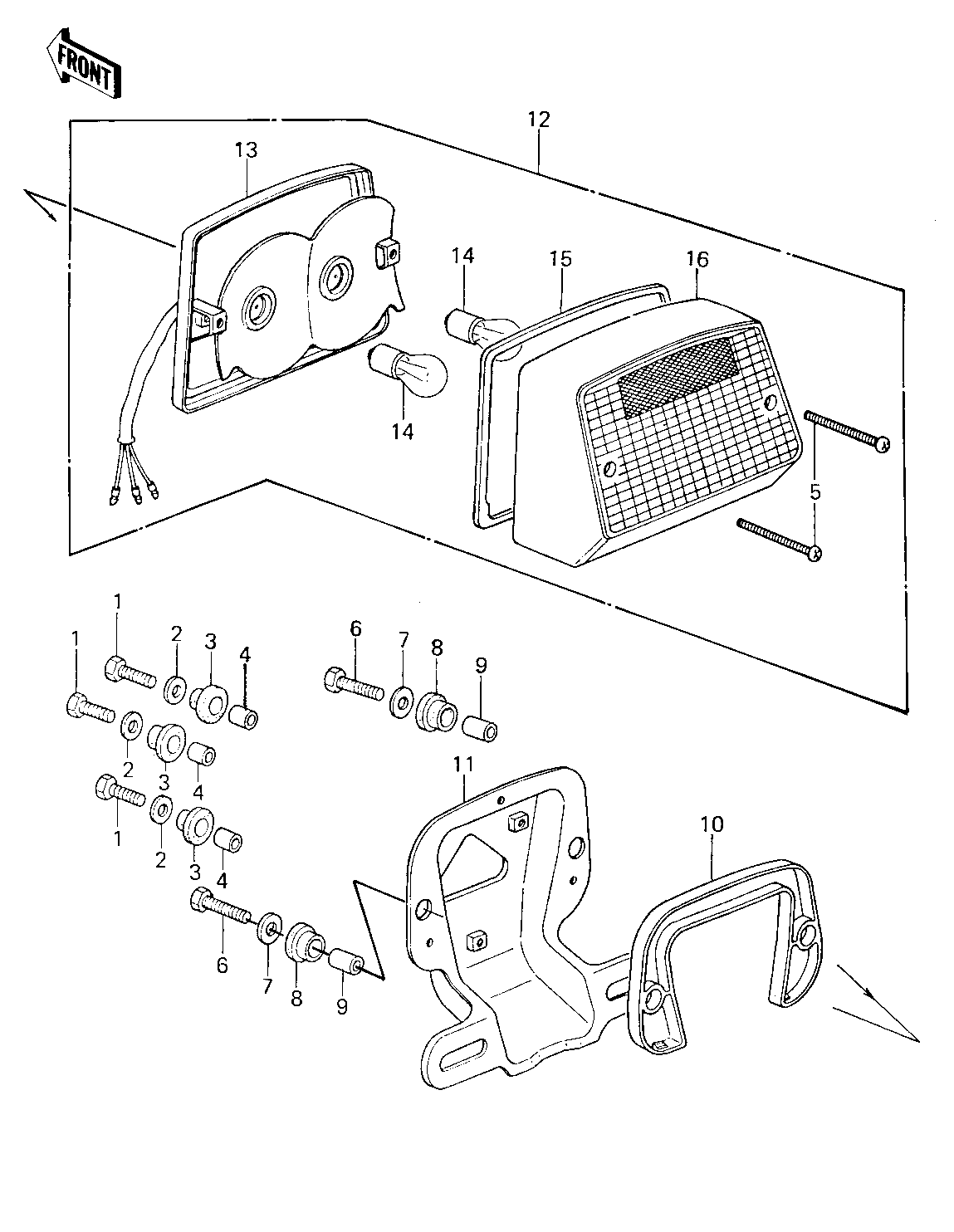

1980 KZ750-E1 - TAILLIGHT ('80 KZY 50-E1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X20 | 1 | 112G0620 | 3 | ||
| WASHER 6.5X20X1.6T | 2 | 92022-125 | 3 | ||
| DAMPER RUBBER | 3 | 92075-112 | 3 | ||
| COLLAR 6.8X10X10.5 | 4 | 92027-120 | 3 | ||
| SCREW | 5 | 220R0455 | 2 | ||
| BOLT 6X22 | 6 | 112B0622 | 2 | ||
| WASHER 6.5X20X1.6T | 7 | 92022-125 | 2 | ||
| DAMPER RUBBER | 8 | 92075-1092 | 2 | ||
| COLLAR 6.8X10X14.5 | 9 | 92027-156 | 2 | ||
| DAMPER RUBBER BRACKET | 10 | 92075-1091 | 1 | ||
| BRACKET,LICENSE PLATE | 11 | 23036-1009 | 1 | ||
| LAMP ASSY,TAIL | 12 | 23025-1005 | 1 | ||
| BODY ASSY,TAIL LAMP | 13 | 23027-1001 | 1 | ||
| BULB,12V 32/3CP | 14 | 92069-059 | 2 | ||
| GASKET,TAIL LAMP LENS | 15 | 11009-1077 | 1 | ||
| LENS,TAIL LAMP | 16 | 23026-1002 | 1 |
| BOLT-UPSET,6X20 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR 6.8X10X10.5 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X22 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR 6.8X10X14.5 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER BRACKET | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LICENSE PLATE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP ASSY,TAIL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY ASSY,TAIL LAMP | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 32/3CP | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,TAIL LAMP LENS | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS,TAIL LAMP | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
