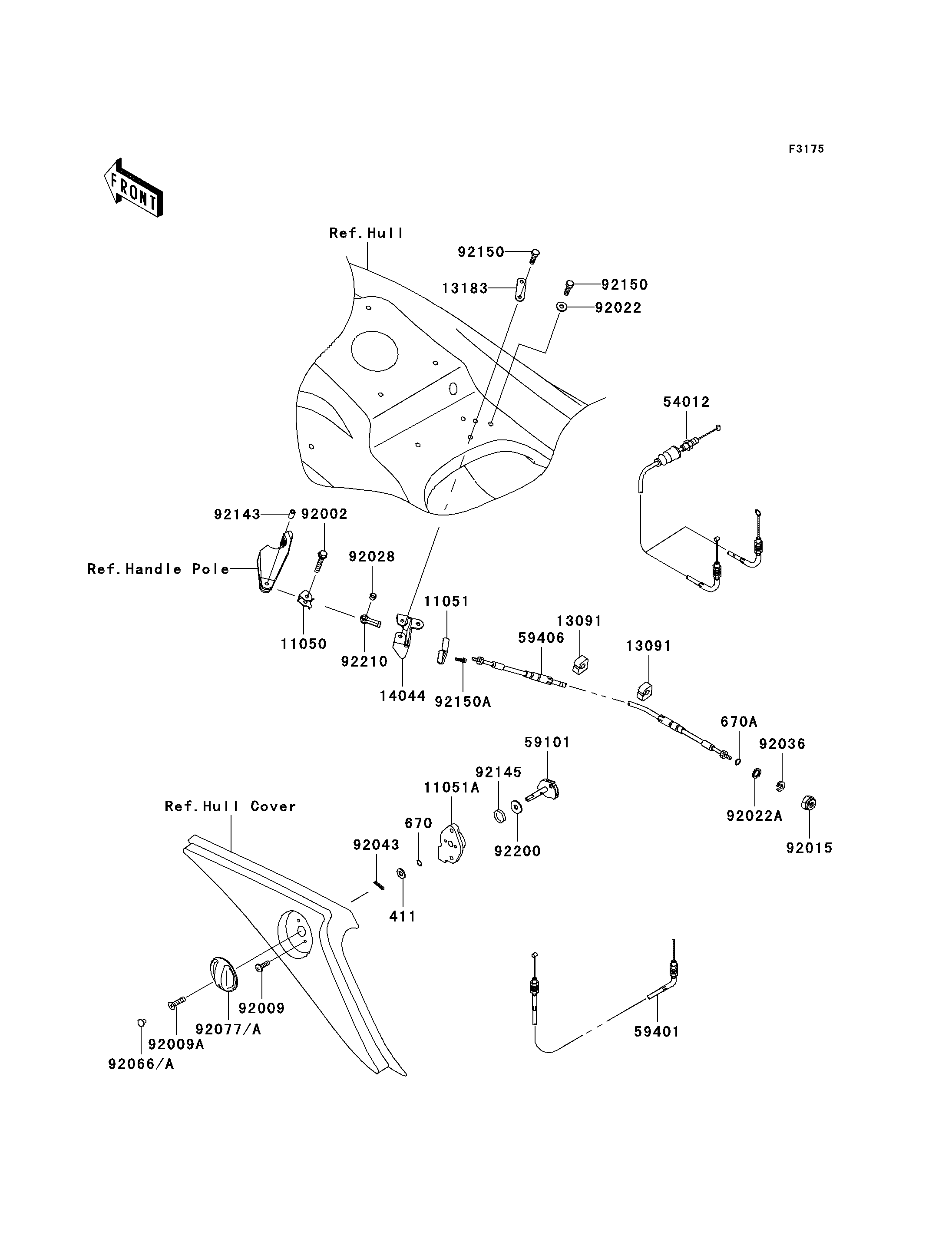

2000 Ultra 150 - Cables

DOWNLOAD PDF
SELECT A NEW PART
411
670A
11050
11051
11051A
13091
13091
13183
14044
54012
59101
59401
59406
92002
92009
92009A
92015
92022
92022A
92028
92036
92043
92066A
92077A
92143
92145
92150
92150
92150A
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,8MM 411 411S0800 1
O RING,11MM 670A 670B2011 1
BRACKET 11050 11050-3767 1
BRACKET 11051 11051-3701 1
BRACKET,STARTER CABLE 11051A 11051-3744 1
HOLDER 13091 13091-3712 2
PLATE 13183 13183-3809 1
HOLDER-CABLE 14044 14044-3736 1
CABLE-THROTTLE 54012 54012-3764 1
REEL 59101 59101-3714 1
CABLE-CHOKE 59401 59401-3724 1
CABLE-STRG 59406 59406-3771 1
BOLT,6X30 92002 92002-3726 1
SCREW,5X16 92009 92009-3789 2
SCREW,4X12 92009A 92009-3838 1
NUT,20MM 92015 92015-526 1
WASHER,6.5X20X1.5 92022 92022-3710 1
WASHER 92022A 92022-535 1
BUSHING 92028 92028-3769 1
RING-SNAP 92036 92036-501 1
PIN 92043 92043-3752 1
PLUG,FUEL&CHOKE KNOB,F.BLACK 92066A 92066-3755-6Z 1
KNOB,FUEL&CHOKE,F.BLACK 92077A 92077-3730-6Z 1
COLLAR,6.2X10X19 92143 92143-3733 1
SPRING 92145 92145-3712 1
BOLT,6X20 92150 92150-3758 3
BOLT,5X16 92150A 92150-3778 1
WASHER,8.5X34X0.5 92200 92200-3770 1
NUT 92210 92210-3746 1
