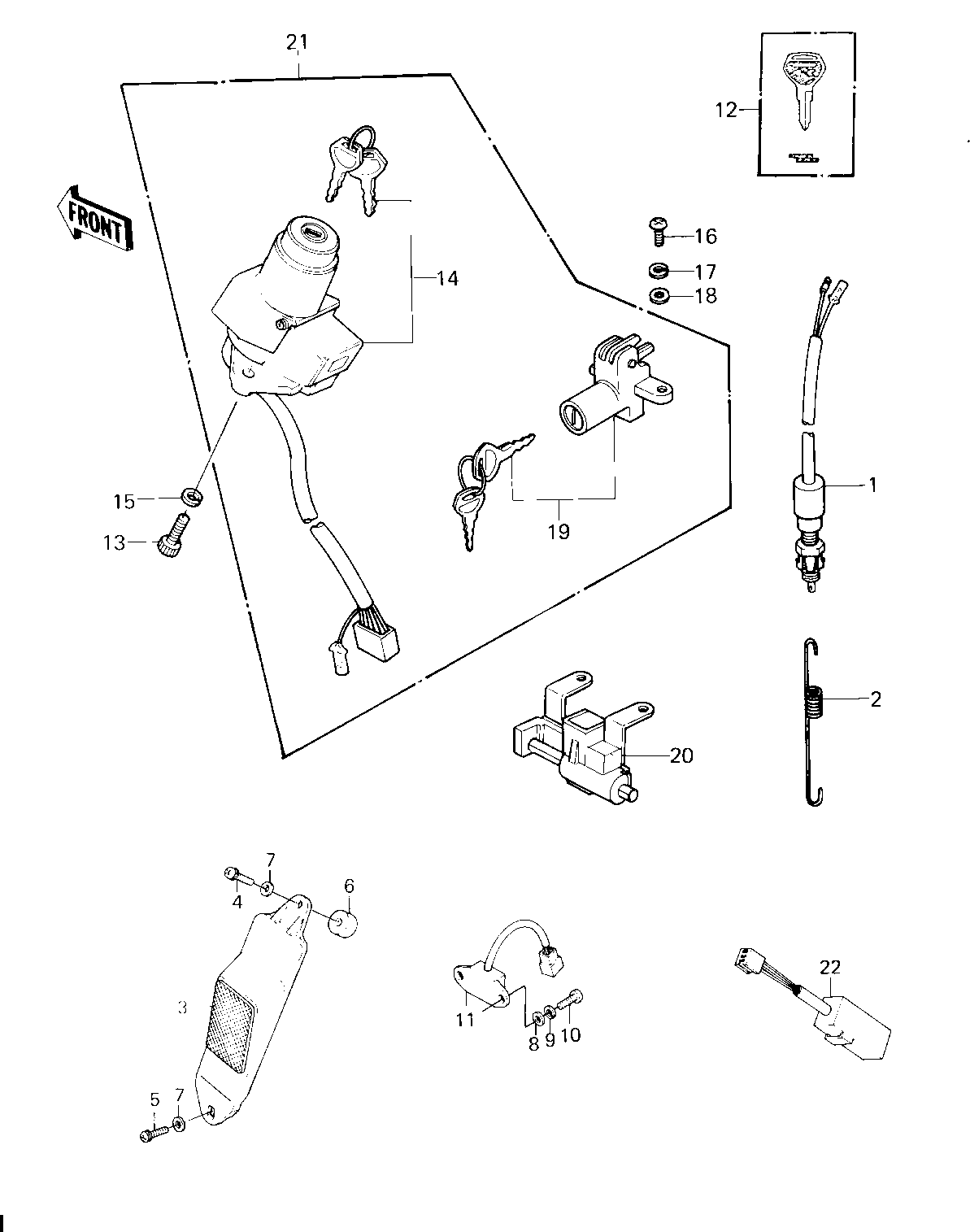

1980 LTD - IGNITION SWITCH/LOCKS/REFLECTORS ('80 H1
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH,BRAKE LAMP | 1 | 27010-1019 | 1 | ||
| SPRING,BRAKE LIGHT SW | 2 | 27011-015 | 1 | ||
| REFLECTOR ASSY,FRONT | 3 | 28001-1015 | 2 | ||
| SCREW,PAN HEAD,5X30 | 4 | 92009-1100 | 2 | ||
| SCREW,5X16,BLACK | 5 | 92009-1099 | 2 | ||
| SCREW,5.2X23X13 | 6 | 92026-1077 | 2 | ||
| WASHER,5.2X16X16X1.2T | 7 | 25009-004 | 4 | ||
| WASHER PLAIN 6MM | 8 | 410B0600 | 2 | ||
| WASHER SPRING 6MM | 9 | 461F0600 | 2 | ||
| SCREW PAN HEAD 6X20 | 10 | 220B0620 | 2 | ||
| SWITCH,RESERVE LIGHTI | 11 | 27010-1024 | 1 | ||
| KEY-LOCK,BLANK | 12 | 27008-1103 | (1 | OPTION | |
| BOLT-SOCKET,6X16,BLAC | 13 | 120S0616 | 2 | ||
| SWITCH-ASSY-IGNITION | 14 | 27005-5024 | 1 | ||
| WASHER SPRING 6MM | 15 | 461F0600 | 2 | ||
| SCREW PAN HEAD 6X14 | 16 | 220B0614 | 1 | ||
| WASHER SPRING 6MM | 17 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 18 | 410B0600 | 1 | ||
| LOCK-ASSY,SEAT | 19 | 27016-5010 | 1 | ||
| HOOK ASSY,HELMET | 20 | 53045-1001 | 1 | ||
| SWITCH-ASSY | 21 | 27004-5151 | (1 | OPTION | |
| SWITCH,OUTAGE,INDICTR | 22 | 28019-001 | 1 |
| SWITCH,BRAKE LAMP | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE LIGHT SW | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR ASSY,FRONT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,PAN HEAD,5X30 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16,BLACK | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5.2X23X13 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X16X16X1.2T | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X20 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SWITCH,RESERVE LIGHTI | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KEY-LOCK,BLANK | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | OPTION |
| BOLT-SOCKET,6X16,BLAC | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY-IGNITION | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,SEAT | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK ASSY,HELMET | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | OPTION |
| SWITCH,OUTAGE,INDICTR | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
