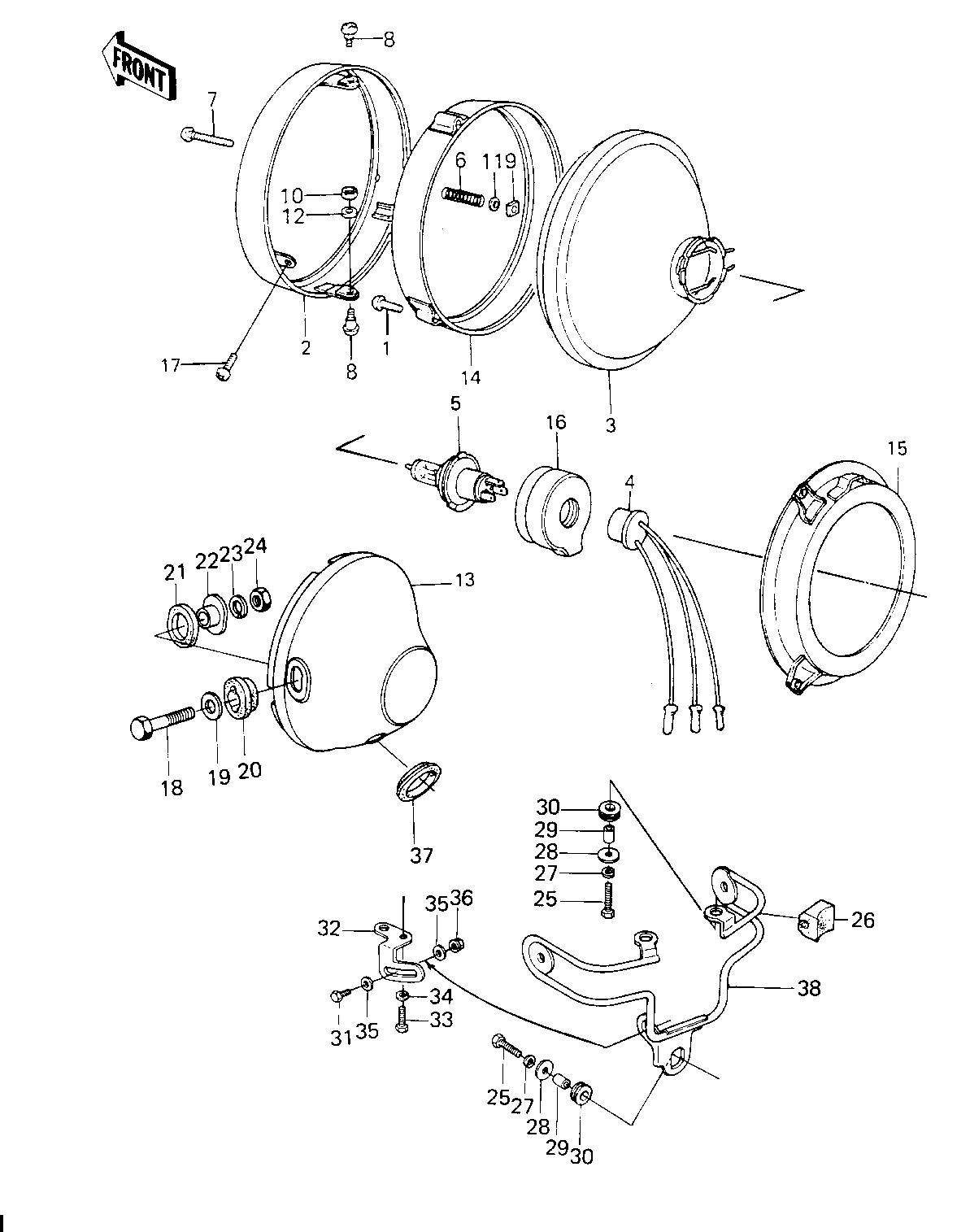

1980 LTD - HEADLIGHT ('80 H1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 3X12 1 220B0312 2
RIM,HEAD LAMP 2 23006-038 1
LENS UNIT,HEAD LAMP 3 23007-1009 1
SOCKET ASSY,HEAD LAMP 4 23008-037 1
BULB,12V-60/55W 5 92069-1002 1 LOCAL PROCUREMENT
SPRING FOCUS ADJUST 6 23014-005 1
SCREW FORCUS ADJUST 7 23019-021 1
SCREW-PAN HEAD,5X12 8 23019-023 2
NUT,4MM 9 23020-018 1
NUT,HEAD LAMP RIM FIT 10 23020-023 2
WASHER 11 23021-004 1
WASHER-PLAIN,5MM 12 23021-012 2
BODY-COMP-HEAD LAMP 13 23005-1016 1
RING,HEAD LAMP MOUNT 14 23072-001 1
RING,HEAD LAMP MOUNT 15 23074-001 1
DUST COVER 16 49016-1016 1
SCREW,PAN HEAD,5X14 17 23019-022 2
BOLT,10MM 18 92007-024 2
WASHER,HEAD LAMP 19 92022-1054 2
DAMPER RUBBER 20 23066-022 2
DAMPER RUBBER 21 23066-021 2
COLLAR,HEAD LIGHT 22 23052-011 2
WASHER SPRING 10MM 23 461F1000 2
NUT 10MM 24 315B1000 2
BOLT-UPSET 25 112G0625 3
DAMPER RUBBER,LAMP 26 92075-1257 2
WASHER SPRING 6MM 27 461F0600 3
WASHER 6.5X20X1.6T 28 92022-125 3
COLLAR 29 92027-241 3
DAMPER RUBBER,RR FENR 30 92075-209 3
BOLT-UPSET,6X12 31 112G0612 1
BRACKET 32 11034-1676 1
BOLT-SMALL-UPSET,8X16 33 115G0816 1
WASHER SPRING 8MM 34 461F0800 1
WASHER PLAIN 6MM 35 411B0600 2
NUT,LOCK 6MM 36 92017-014 1
GROMMET 37 92071-1008 1
BRACKET,HEAD LAMP 38 11034-1751 1
