Parts Diagrams |

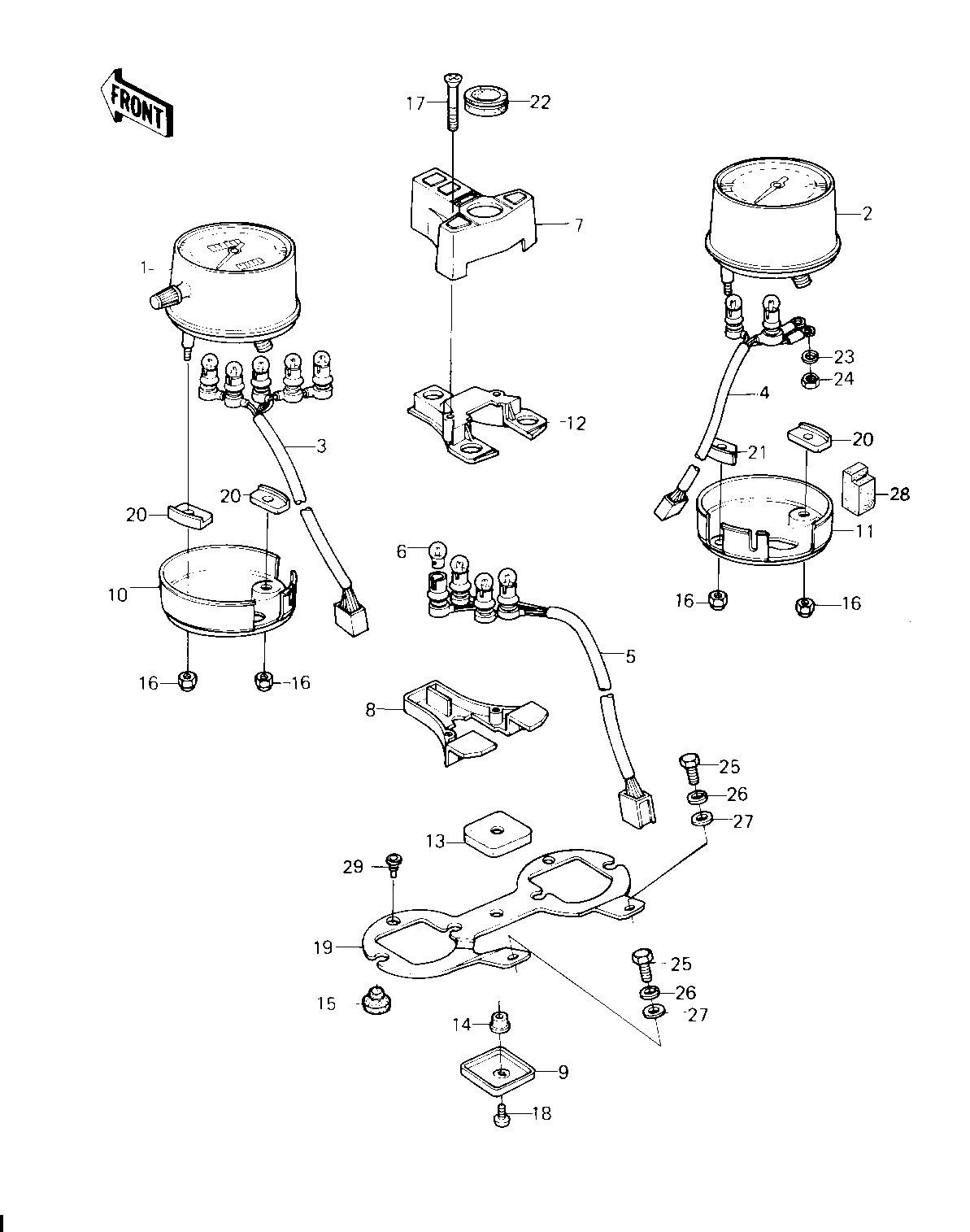

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPEEDOMETER,KM/&MPH | 1 | 25005-1078 | 1 | US | |
| SPEEDOMETER,KM/H | 1 | 25005-1080 | 1 | CN | |
| TACHOMETER,X1000RPM | 2 | 25015-1062 | 1 | ||
| SOCKET,SPEEDOMETER | 3 | 23008-1060 | 1 | ||
| SOCKET,TACHOMETER | 4 | 23008-1062 | 1 | ||
| SOCKET,PILOT BOX | 5 | 23008-1061 | 1 | ||
| BULB 12V 3W | 6 | 92069-018 | 11 | ||
| COVER,PILOT BOX UPPER | 7 | 25023-1021 | 1 | ||
| COVER,PILOT BOX LOWER | 8 | 14025-1226 | 1 | ||
| COVER,METER BRACKET | 9 | 14025-1227 | 1 | ||
| COVER,SPEEDOMETER | 10 | 14025-1224 | 1 | ||
| COVER,TACHOMETER | 11 | 14025-1225 | 1 | ||
| PLATE,SOCKET | 12 | 13169-1268 | 1 | ||
| DAMPER RUBBER | 13 | 92075-1255 | 1 | ||
| DAMPER RUBBER,MET FIT | 14 | 25019-023 | 1 | ||
| DAMPER,METER FITTING | 15 | 92075-1150 | 4 | ||
| NUT-CAP,5MM | 16 | 322N0500 | 4 | ||
| SCREW,CUNTERSNK,4X35 | 17 | 92009-1093 | 2 | ||
| SCREW,TAPPING,4X10 | 18 | 92009-1040 | 1 | ||
| BRACKET,METER | 19 | 25008-1030 | 1 | ||
| DAMPER,METER | 20 | 92075-1192 | 3 | ||
| DAMPER RUBBER,METER | 21 | 92075-1265 | 1 | ||
| DAMPER RUBBER | 22 | 92075-1256 | 1 | ||
| WASHER SPRING 4MM | 23 | 461F0400 | 2 | ||
| NUT-HEX | 24 | 312B0400 | 2 | ||
| BOLT-UPSET 6X14 | 25 | 112B0614 | 2 | ||
| WASHER SPRING 6MM | 26 | 461F0600 | 2 | ||
| WASHER PLAIN 6MM | 27 | 411B0600 | 2 | ||
| DAMPER RUBBER,METER | 28 | 92075-1266 | 1 | ||
| DAMPER,METER | 29 | 92075-1149 | 2 |
| SPEEDOMETER,KM/&MPH | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| SPEEDOMETER,KM/H | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| TACHOMETER,X1000RPM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET,SPEEDOMETER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET,TACHOMETER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET,PILOT BOX | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB 12V 3W | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX UPPER | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX LOWER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,METER BRACKET | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SPEEDOMETER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,TACHOMETER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,SOCKET | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,MET FIT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER FITTING | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT-CAP,5MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,CUNTERSNK,4X35 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X10 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,METER | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,METER | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 4MM | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,METER | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
