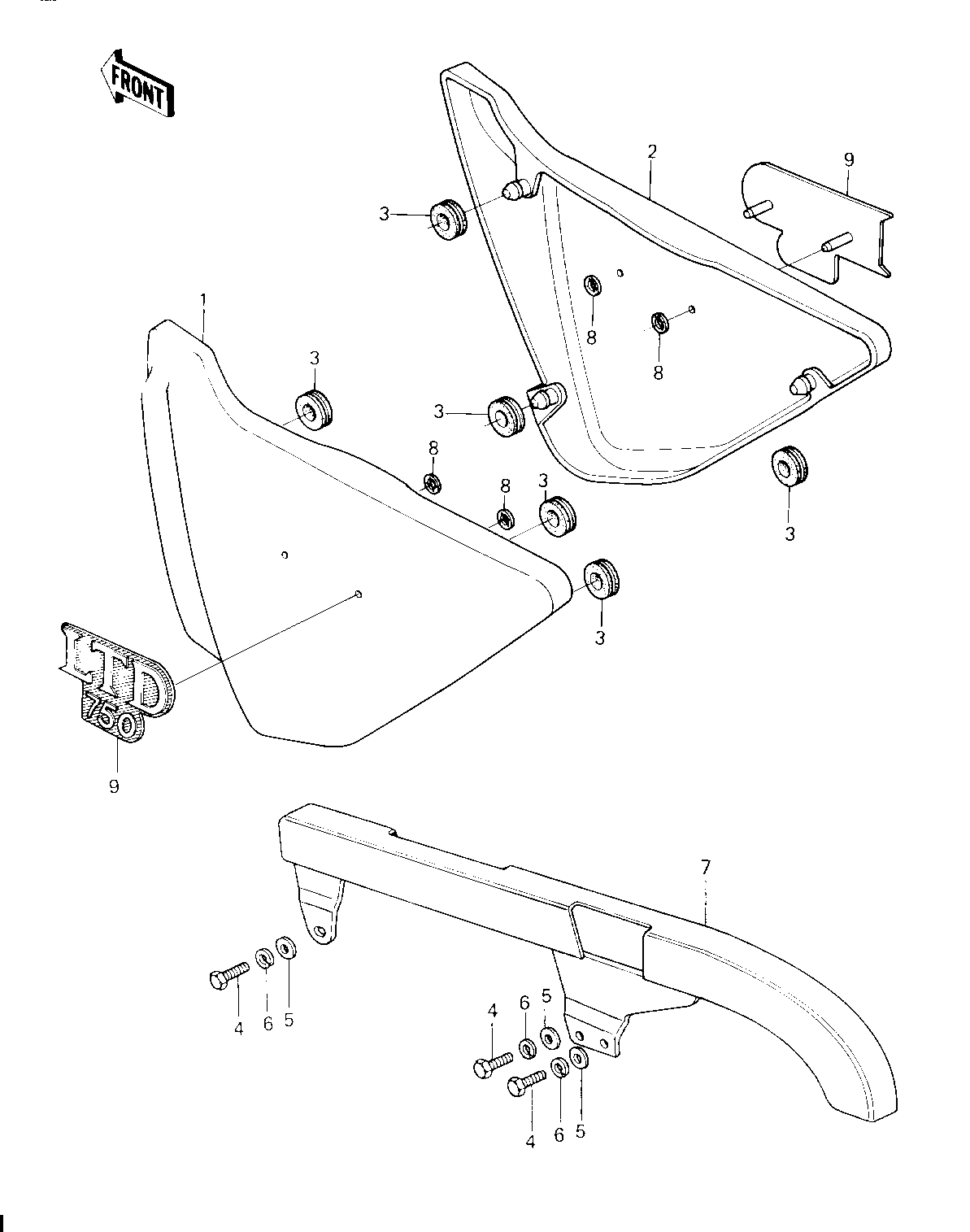

1980 LTD - SIDE COVERS/CHAIN COVER ('80 H1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SIDE,LH,EBONY | 1 | 36001-1095-8G | 1 | ||
| COVER,SIDE,RH,EBONY | 2 | 36001-1096-8G | 1 | ||
| GROMMET | 3 | 92071-056 | 6 | ||
| BOLT-UPSET,6X16 | 4 | 112G0616 | 3 | ||
| WASHER PLAIN 6MM | 5 | 410B0600 | 3 | ||
| WASHER SPRING 6MM | 6 | 461F0600 | 3 | ||
| CASE,CHAIN | 7 | 36014-1039 | 1 | ||
| NUT,LOCK,3MM | 8 | 92018-005 | 4 | ||
| MARK,SIDE COVER | 9 | 56018-1163 | 2 |
