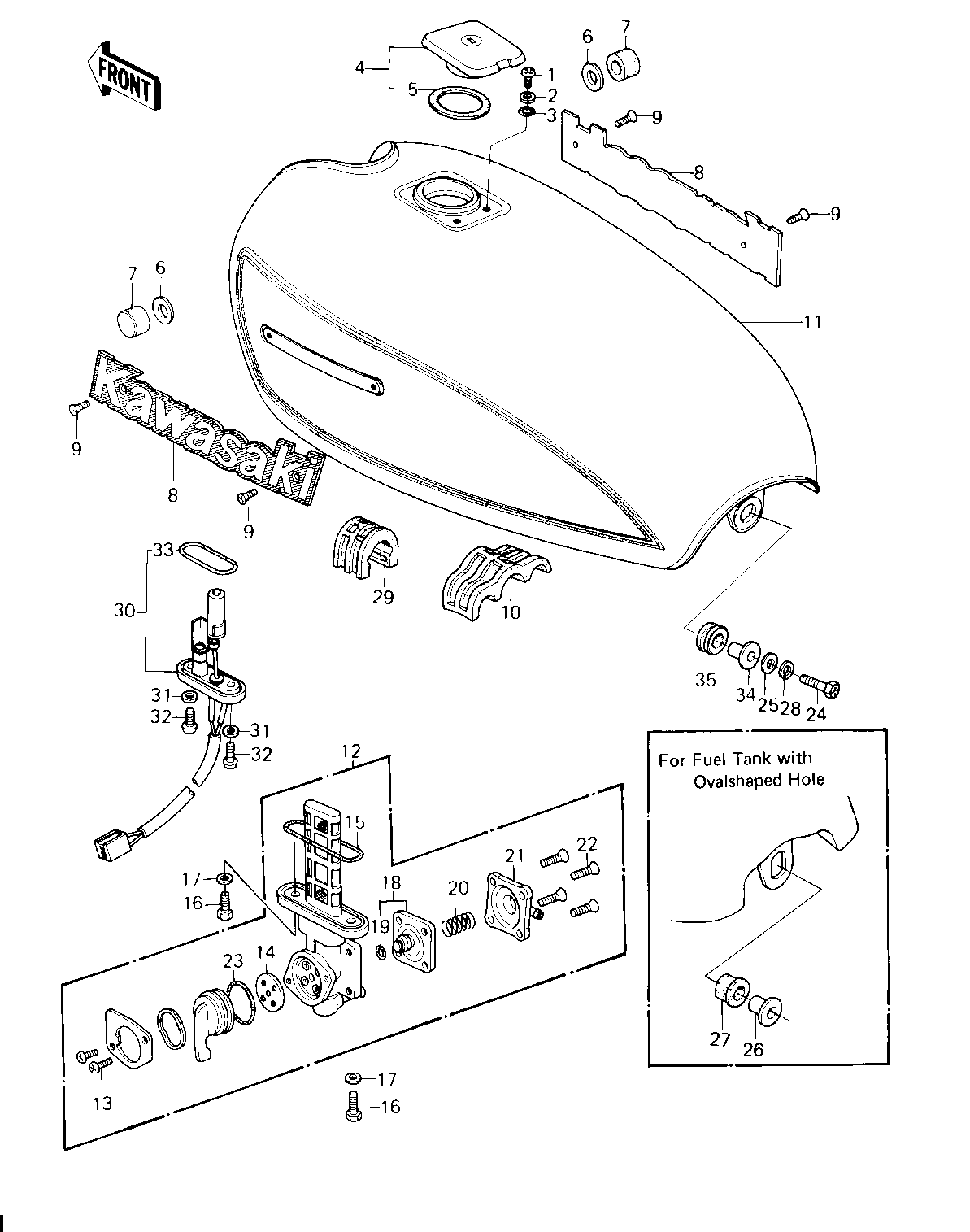

1980 LTD - FUEL TANK ('80 H1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 5X10 1 220B0510 2
WASHER,PLAIN 2 92022-1038 2
"0" RING 3 92055-1023 2
CAP ASSY TANK 4 51048-1018 1
GASKET,FUEL TANK CAP 5 11009-1051 1
WASHER,PLAIN,10M/M 6 92022-137 2
DAMPER RUBBER 7 92075-044 2
EMBLEM,FUEL TANK 8 56014-1038 2
SCREW-CSK-CROS 9 221C0306 4
DAMPER,FUEL TANK 10 92075-1245 1
TANK-FUEL,EBONY 11 51001-1050-8G 1
TAP ASSY,FUEL 12 51023-1031 1
SCREW PAN HEAD 3X8 13 220B0308 2
GASKET,TAP VALVE 14 11009-1194 1
"0" RING 15 51039-010 1
BOLT,6X20,FUEL TAP 16 92001-1091 2
WASHER-PLAIN 17 92022-183 2
DIAPHRAGM ASSY,TAP 18 43028-1015 1
"O" RING,4MM 19 670B1504 1
SPRING,TAP 20 92081-1171 1
COVER ASSY,TAP 21 16146-1005 1
SCREW-CSK-CROS,4X14 22 221B0414 4
"0" RING,TAP LEVER 23 92055-1027 1
BOLT-SMALL-UPSET,8X30 24 115G0830 1
WASHER SEAL PLATE 25 92022-101 1
COLLAR,FUEL TANK FITT 26 92027-1134 1
DAMPER,FUEL TANK,FITT 27 92075-1116 1
WASHER SPRING 8MM 28 461F0800 1
DAMPER,FUEL TANK 29 92075-1065 1
SWITCH,FUEL LEVEL 30 27010-1096 1
WASHER,5.2X10X1.5 31 92022-1023 2
SCREW-PAN-CROS 32 220B0514 2
"O" RING,FUEL SWITCH 33 43058-1004 1
COLLAR,ENGINE HEAD 34 92027-1116 1
DAMPER RUBBER,MUFFLER 35 92075-1086 1
