Parts Diagrams |

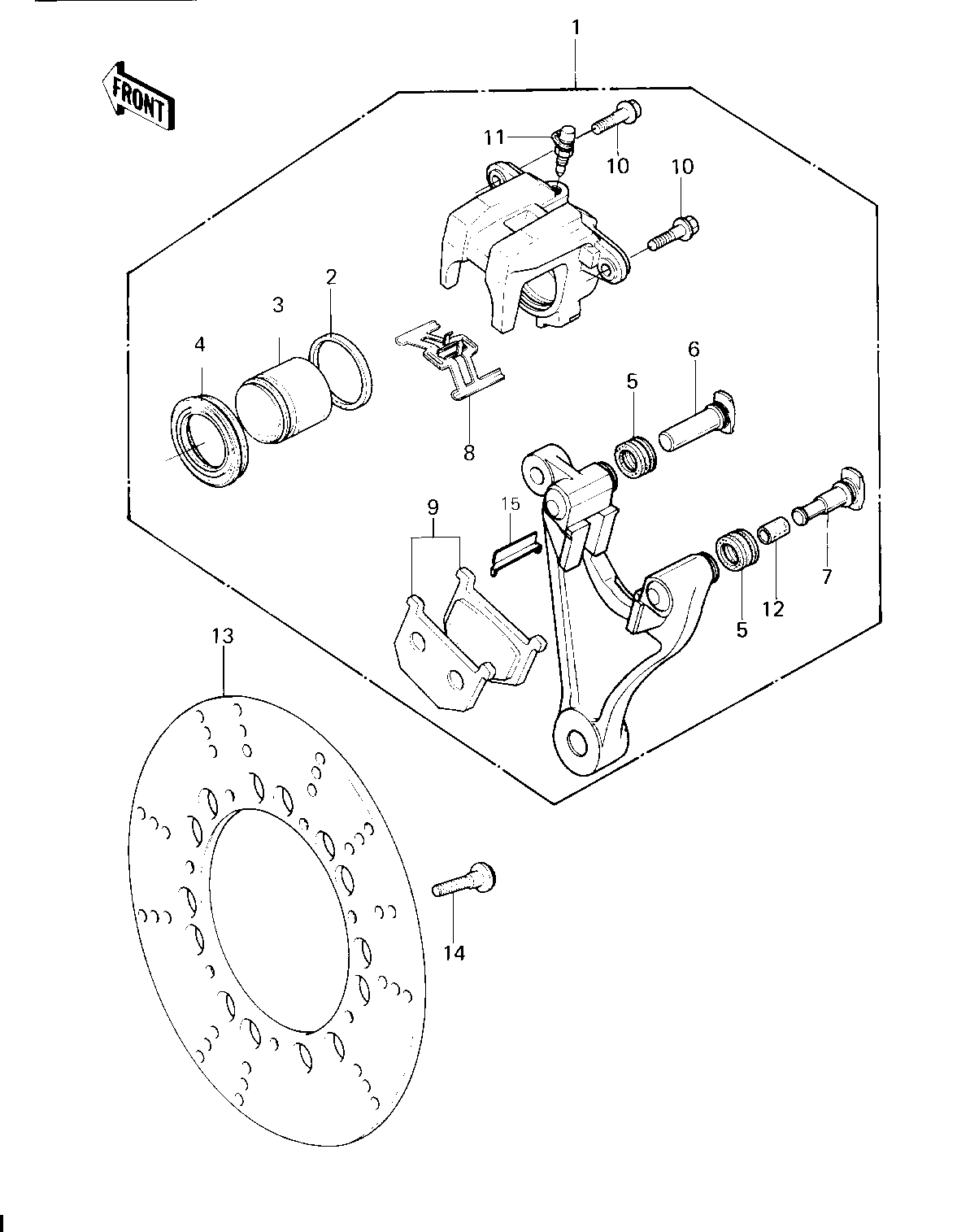

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CALIPER-ASSY,RR | 1 | 43041-1057 | 1 | ||
| RING,PISTON SEAL | 2 | 43049-002 | 1 | ||
| PISTON-COMP-BRAKE | 3 | 43020-1096 | 1 | ||
| DUST SEAL,PISTON | 4 | 49006-1043 | 1 | ||
| DUST SEAL | 5 | 49006-1044 | 2 | ||
| SHAFT,CALIPER | 6 | 43045-1007 | 1 | ||
| SHAFT,CALIPER | 7 | 43045-1008 | 1 | ||
| SPRING,PAD | 8 | 92081-1229 | 1 | ||
| PAD-ASSY-BRAKE | 9 | 43082-1025 | 1 | ||
| BOLT,FLANGED,8X25,BLA | 10 | 92001-1510 | 2 | ||
| BLEEDER SET | 11 | 43085-001 | 1 | ||
| BUSHING,SHAFT CALIPER | 12 | 92028-1090 | 1 | ||
| DISC,RR,SILVER | 13 | 41080-1131 | 1 | ||
| BOLT,SOCKET,8X30 | 14 | 92001-1951 | 7 | ||
| GUIDE,PAD | 15 | 13070-1026 | 2 |
| CALIPER-ASSY,RR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,PISTON SEAL | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST SEAL,PISTON | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST SEAL | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT,CALIPER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,CALIPER | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,PAD | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD-ASSY-BRAKE | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X25,BLA | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BLEEDER SET | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,SHAFT CALIPER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DISC,RR,SILVER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X30 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| GUIDE,PAD | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
