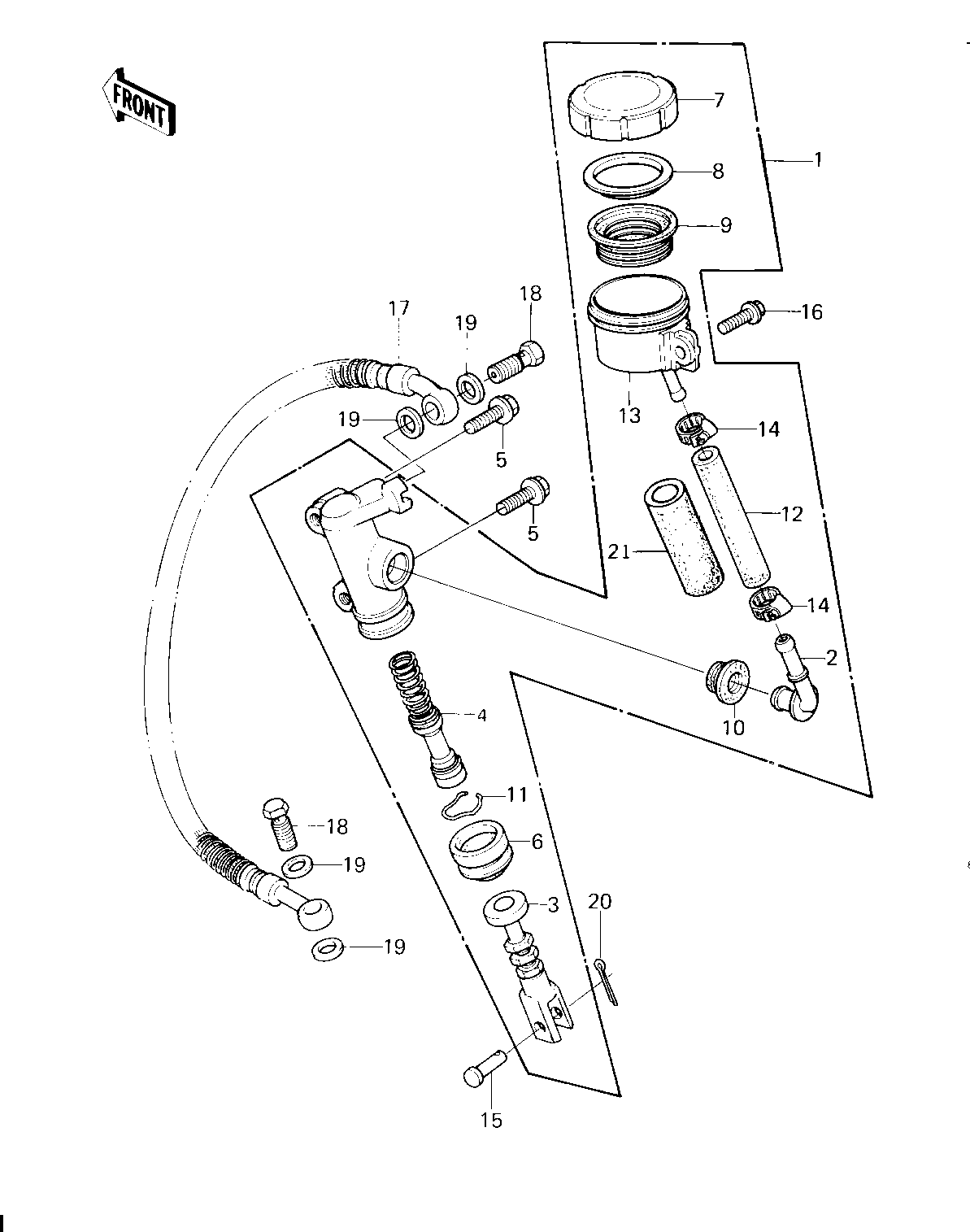

1980 LTD - REAR MASTER CYLINDER ('80 H1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER ASSY,RR MAST | 1 | 43015-1054 | 1 | ||
| CYLINDER ASSY MSTR RR | 1 | 43015-1072 | 1 | F/NO. 005842~ | |
| CONNECTOR | 2 | 13159-1005 | 1 | ||
| ROD ASSY,BRAKE | 3 | 43010-1004 | 1 | ||
| PISTON ASSY | 4 | 43020-1019 | 1 | ||
| BOLT,8X28 | 5 | 92001-1095 | 2 | ||
| DUST COVER | 6 | 49016-1031 | 1 | ||
| CAP,OIL CUP | 7 | 43026-1010 | 1 | ||
| PLATE,DIAPHRAGM | 8 | 43027-1005 | 1 | ||
| DIAPHRAGM | 9 | 43028-1016 | 1 | ||
| PACKING | 10 | 43049-1008 | 1 | ||
| RING,DUST SEAL | 11 | 43058-004 | 1 | ||
| HOSE,BRAKE,8X12X175.5 | 12 | 43059-1058 | 1 | ||
| HOSE,BRAKE,8X12X163 | 12 | 43059-1066 | 1 | F/NO. 005842~ | |
| RESERVOIR | 13 | 43078-1008 | 1 | ||
| CLAMP,BRAKE HOSE | 14 | 92037-1154 | 2 | ||
| PIN | 15 | 92043-1013 | 1 | ||
| BOLT,FLANGED,6X20 | 16 | 130B0620 | 1 | ||
| HOSE-BRAKE,L=395 | 17 | 43059-1194 | 1 | ||
| BOLT,OIL,L=23 | 18 | 92002-1888 | 2 | ||
| WASHER-OIL BOLT | 19 | 43067-001 | 4 | ||
| PIN COTTER 2.0X15 | 20 | 550D2015 | 1 | ||
| HOSE,BRAKE,13X18X139 | 21 | 43059-1068 | 1 |
