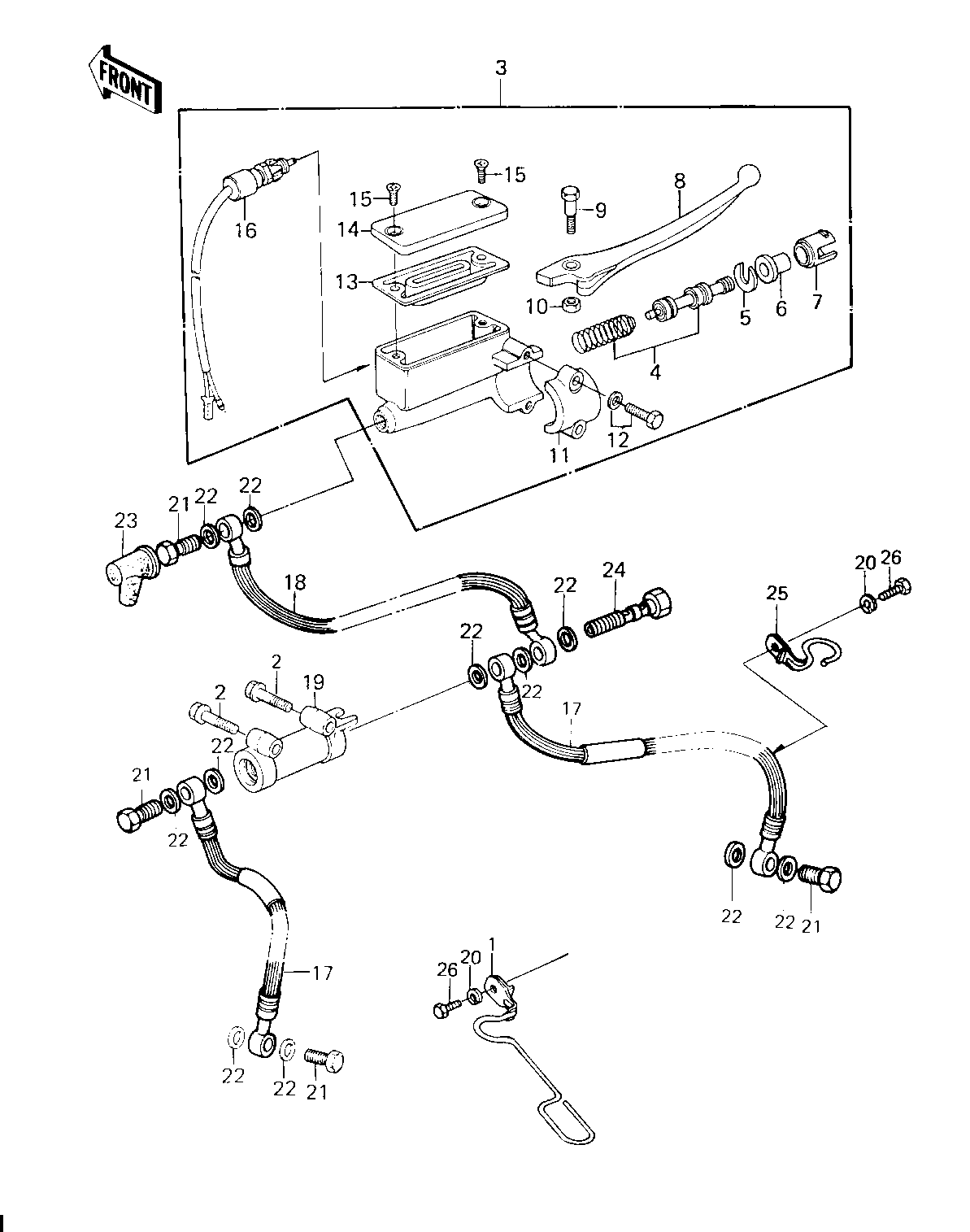

1980 LTD - FRONT MASTER CYLINDER ('80 H1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLAMP,CABLE | 1 | 92037-1116 | 1 | ||
| BOLT,FLANGED,6X40 | 2 | 130G0640 | 2 | ||
| CYLINDER ASSY,FR | 3 | 43015-1046 | 1 | ||
| PISTON-COMP-BRAKE | 4 | 43020-1023 | 1 | ||
| STOPER,PISTON | 5 | 43022-1001 | 1 | ||
| DUST COVER | 6 | 49016-1010 | 1 | ||
| LINER,PISTON | 7 | 14008-1007 | 1 | ||
| LEVER,FRONT BRAKE | 8 | 46092-1012 | 1 | ||
| BOLT,CLUTCH LEV FITT | 9 | 92001-1056 | 1 | ||
| NUT 6MM | 10 | 312B0600 | 1 | ||
| HOLDER,MASTER CYLINDR | 11 | 43034-1001 | 1 | ||
| BOLT,HEX HEAD,6X25 | 12 | 43033-003 | 2 | ||
| DIAPHRAGM | 13 | 43028-1008 | 1 | ||
| CAP,OIL CUP | 14 | 43026-1006 | 1 | ||
| SCREW,COUNTERSUNK HED | 15 | 92001-1055 | 2 | ||
| SWITCH,BRAKE | 16 | 27010-1028 | 1 | ||
| HOSE,FR CALIPER,L=610 | 17 | 43059-1098 | 2 | ||
| HOSE,BRAKE,L=520M/M | 18 | 43059-1063 | 1 | ||
| JOINT,FR BRAKE HOSE | 19 | 43061-1002 | 1 | ||
| WASHER SPRING 6MM | 20 | 461F0600 | 2 | ||
| BOLT,OIL,L=23 | 21 | 92002-1888 | 4 | ||
| WASHER-OIL BOLT | 22 | 43067-001 | 11 | ||
| BOOT,DUST | 23 | 49006-1041 | 1 | ||
| BOLT | 24 | 92002-1909 | 1 | ||
| CLAMP,FRNT BRK HOSE | 25 | 92037-1054 | 1 | ||
| BOLT-UPSET,6X12 | 26 | 112G0612 | 2 |
| CLAMP,CABLE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X40 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CYLINDER ASSY,FR | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPER,PISTON | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST COVER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LINER,PISTON | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,FRONT BRAKE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH LEV FITT | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,MASTER CYLINDR | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X25 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,OIL CUP | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,COUNTERSUNK HED | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SWITCH,BRAKE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE,FR CALIPER,L=610 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOSE,BRAKE,L=520M/M | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT,FR BRAKE HOSE | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER-OIL BOLT | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| BOOT,DUST | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FRNT BRK HOSE | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
