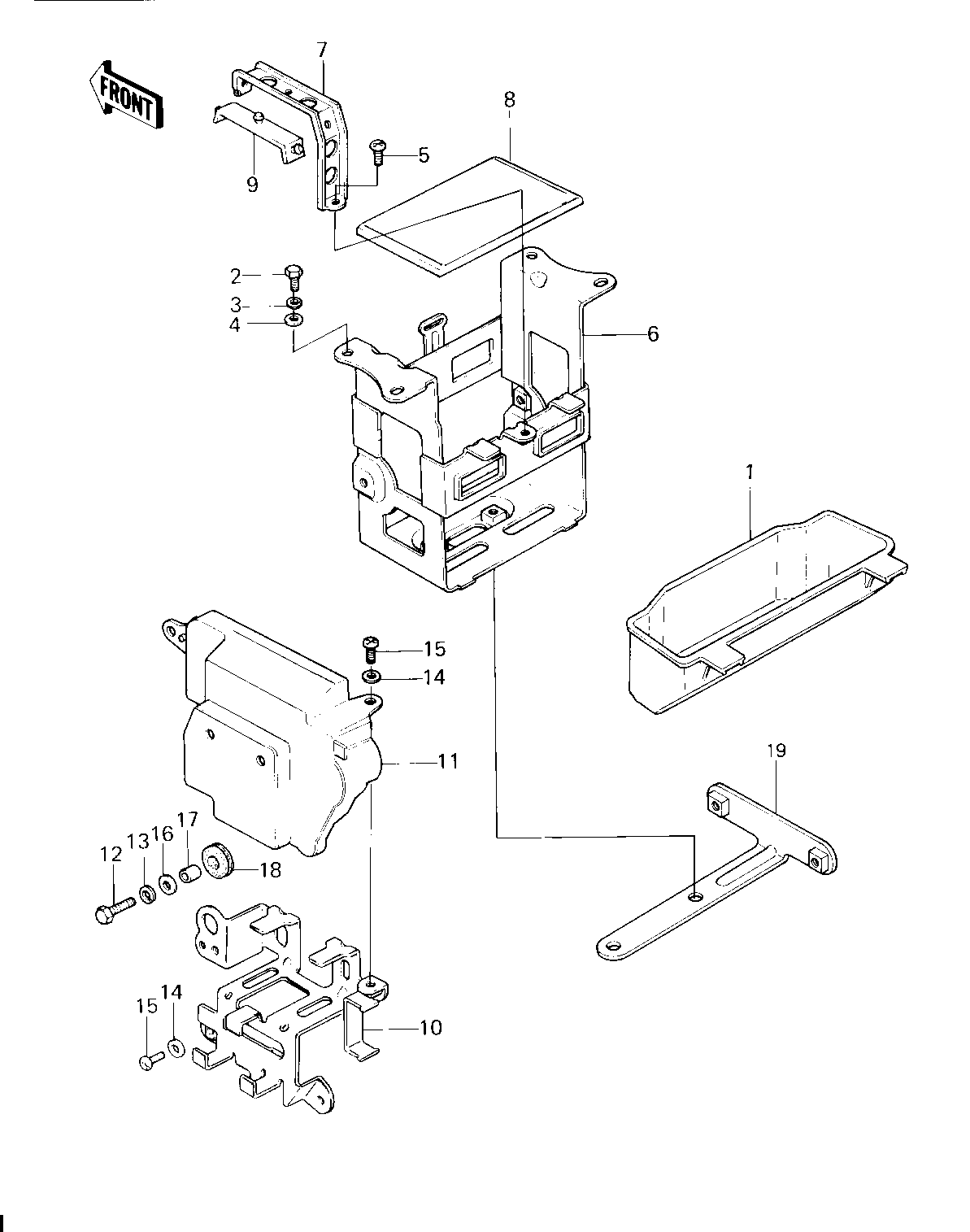

1980 LTD - BATTERY CASE/TOOL CASE ('80 H1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE,TOOL | 1 | 32098-1011 | 1 | ||
| BOLT-UPSET,6X12 | 2 | 112G0612 | 4 | ||
| WASHER SPRING 6MM | 3 | 461F0600 | 4 | ||
| WASHER PLAIN 6MM | 4 | 410B0600 | 4 | ||
| SCREW PAN HEAD 6X12 | 5 | 220B0612 | 1 | ||
| CASE,BATTERY | 6 | 32097-1026 | 1 | ||
| BAND,BATTERY | 7 | 92072-1019 | 1 | ||
| DAMPER,BATTERY BASE | 8 | 92075-1076 | 1 | ||
| DAMPER,BATTERY BAND | 9 | 92075-1113 | 1 | ||
| BRACKET,ELECTRO BASE | 10 | 11034-1669 | 1 | ||
| COVER,ELECTRO BASE | 11 | 14025-1191 | 1 | ||
| BOLT-UPSET | 12 | 112G0625 | 2 | ||
| WASHER SPRING 6MM | 13 | 461F0600 | 2 | ||
| WASHER PLAIN | 14 | 92022-024 | 2 | ||
| SCREW PAN HEAD 6X12 | 15 | 220B0612 | 2 | ||
| WASHER,PLAIN,7MM | 16 | 92022-228 | 2 | ||
| COLLAR-CLAMP | 17 | 92027-291 | 2 | ||
| DAMPER | 18 | 92075-317 | 2 | ||
| BRACKET-A,RESERVE LIG | 19 | 11036-1245 | 1 |
| CASE,TOOL | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,BATTERY | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,BATTERY BASE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,BATTERY BAND | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,ELECTRO BASE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,ELECTRO BASE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,7MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR-CLAMP | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-A,RESERVE LIG | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
