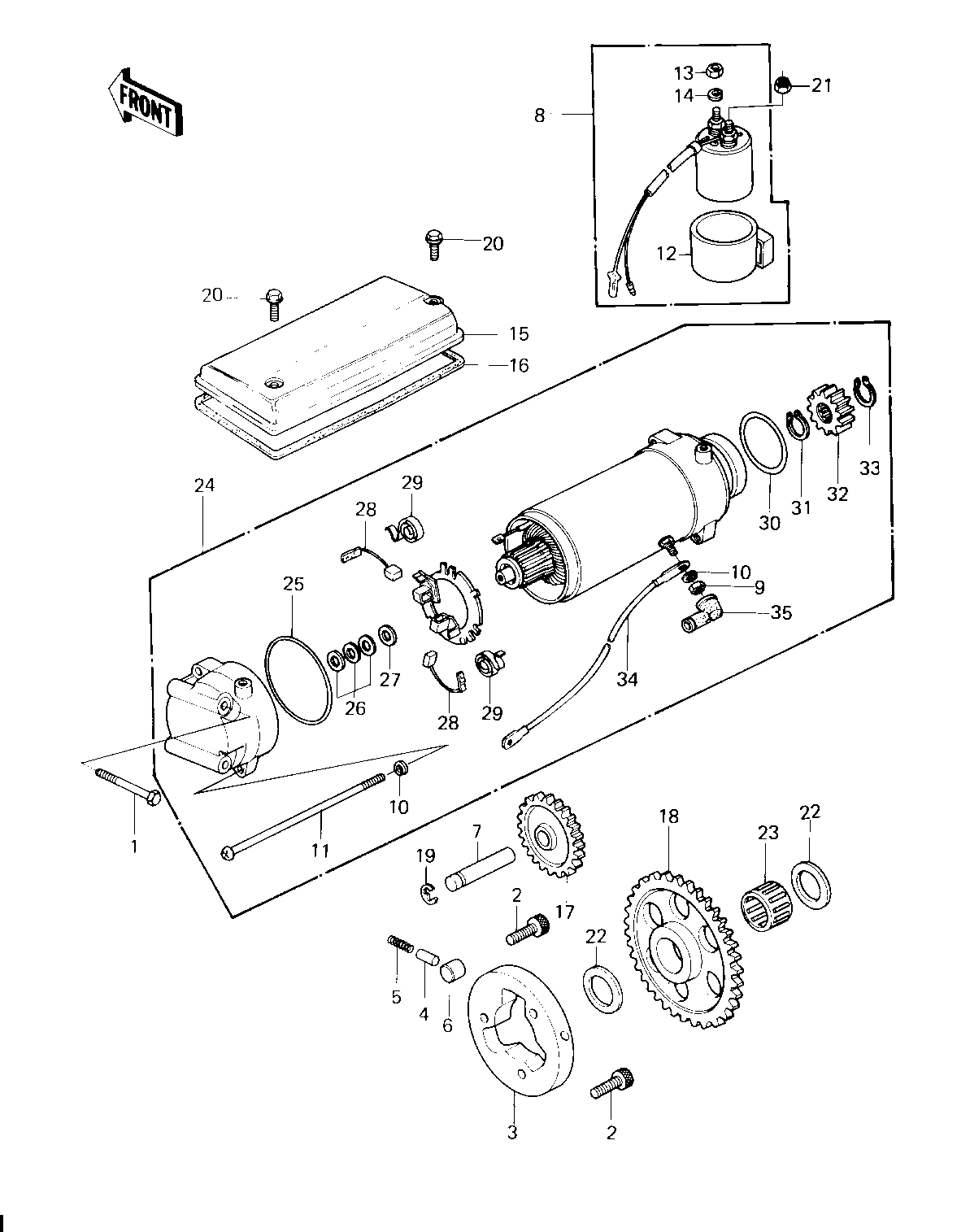

1980 LTD - STARTER MOTOR/STARTER CLUTCH ('80 H1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 1 112G0660 2
BOLT,SOCKET,8X12 2 120P0812 3
CLUTCH-ASSY-ONEWAY 3 13193-1012 1
PIN 4 92043-087 3
SPRING 5 92081-110 3
ROLLER 6 92122-004 3
SHAFT,IDLE GEAR 7 21143-003 1
SWITCH ASSY,MAGNETIC 8 21164-005 1
NUT 6MM 9 312B0600 2
WASHER SPRING 6MM 10 461F0600 4
SCREW,PAN HEAD,6X130 11 21099-006 2
DAMPER MAG SWITCH SHK 12 21064-002 1
NUT 6MM 13 312B0600 1
WASHER SPRING 6MM 14 461F0600 1
COVER,STARTER 15 21165-003 1
GASKET,STARTER COVER 16 21166-003 1
GEAR,IDLE,29T 17 21167-004 1
SPROCKET,STARTER,58T 18 12046-1032 1
CIRCLIP 12MM 19 482K0200 1
BOLT,6X10 20 92001-1151 2
NUT,LOCK 6MM 21 92017-014 1
SPACER,25X36X3.2 22 92026-1025 2
BRG,NEEDLE,K253017 23 92046-056 1
STARTER-ELECTRIC 24 21163-1190 1
"0" RING,62MM 25 21027-006 1
WASHER,THRUST,0.2T 26 21025-011 AR
WASHER,THRUST,1.6T 27 21025-010 1
CARBON BRUSH 28 21039-003 2
SPRING,CARBON BRUSH 29 21040-003 2
"0" RING,40M/M 30 21027-008 1
CIRCLIP 31 92033-034 1
PINION,STARTER 32 21053-004 1
CIRCLIP,13M/M 33 92033-037 1
WIRE,STARTER MOTOR 34 26011-1081 1
GROMMET,CORD 35 21017-017 1
