Parts Diagrams |

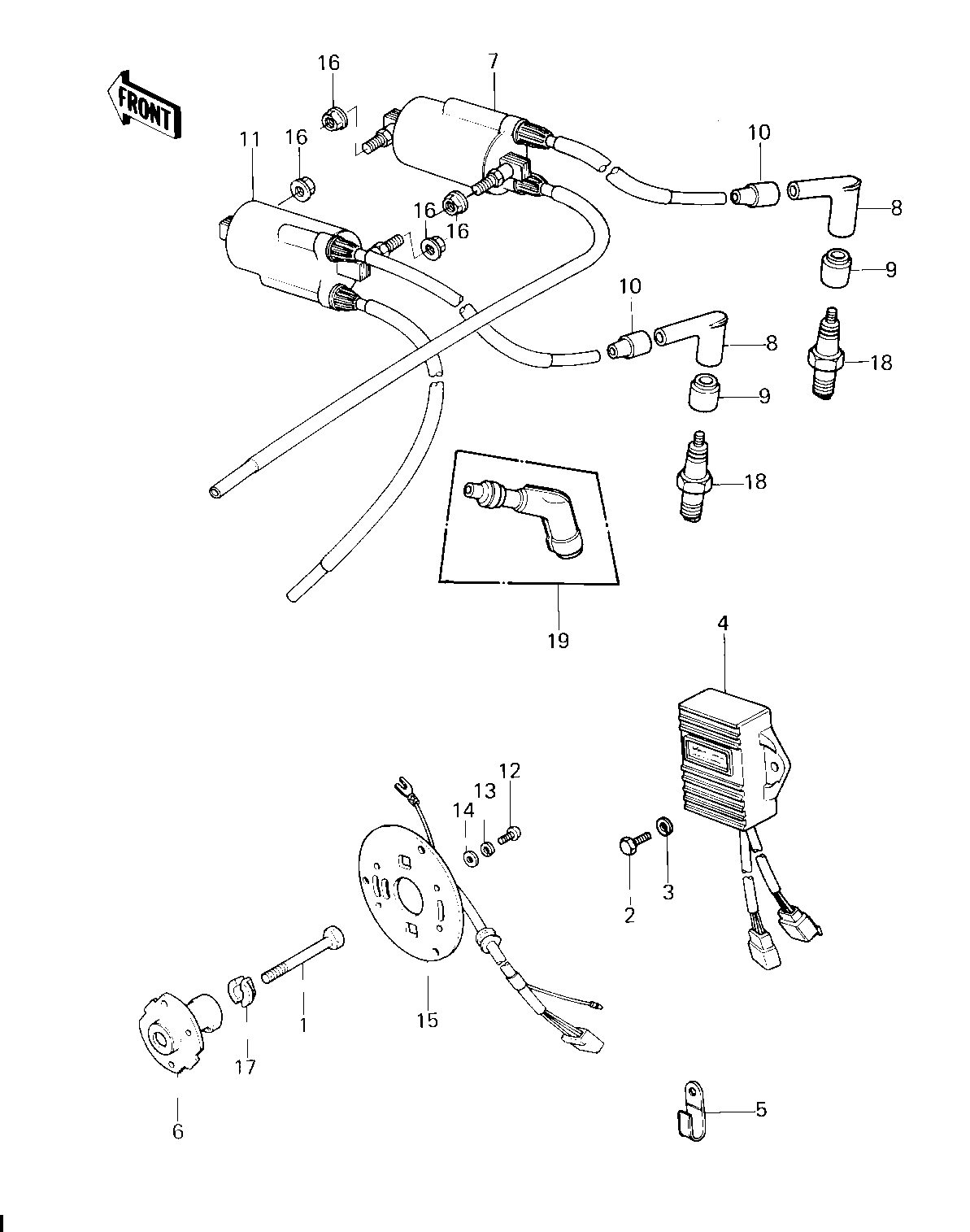

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-8X63 | 1 | 92001-1397 | 1 | ||
| BOLT-UPSET 6X14 | 2 | 112B0614 | 2 | ||
| WASHER SPRING 6MM | 3 | 461F0600 | 2 | ||
| IGNITER | 4 | 21119-1040 | 1 | ||
| CLAMP,WIRING HARNESS | 5 | 21126-008 | 2 | ||
| ADVANCER,AUTO TIMING | 6 | 21148-1013 | 1 | ||
| COIL,IGNITION #1.#4 | 7 | 21121-1027 | 1 | ||
| CAP-SPARK PLUG,RTFM20 | 8 | 21130-1007 | 4 | ||
| GROMMET-PLUG CAP,A | 9 | 21131-004 | 4 | ||
| GROMMET,SPARK PLG CAP | 10 | 21132-005 | 4 | ||
| COIL,IGNITION #2.#3 | 11 | 21121-1028 | 1 | ||
| SCREW PAN HEAD 5X12 | 12 | 220B0512 | 3 | ||
| WASHER SPRING 5MM | 13 | 461F0500 | 3 | ||
| WASHER PLAIN | 14 | 410F0500 | 3 | ||
| COIL,PULSING | 15 | 59026-1007 | 1 | ||
| NUT-6MM | 16 | 92015-1078 | 4 | ||
| WASHER,SPARK ADVANCER | 17 | 92022-244 | 1 | ||
| SPARK PLUG B8ES | 18 | B8ES | 1 | ||
| SPARK PLUG B7ES | 18 | B7ES | (1 | OPTION |
| BOLT-8X63 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| IGNITER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ADVANCER,AUTO TIMING | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL,IGNITION #1.#4 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-SPARK PLUG,RTFM20 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GROMMET-PLUG CAP,A | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GROMMET,SPARK PLG CAP | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COIL,IGNITION #2.#3 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X12 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COIL,PULSING | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPARK ADVANCER | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG B8ES | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG B7ES | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | OPTION |
