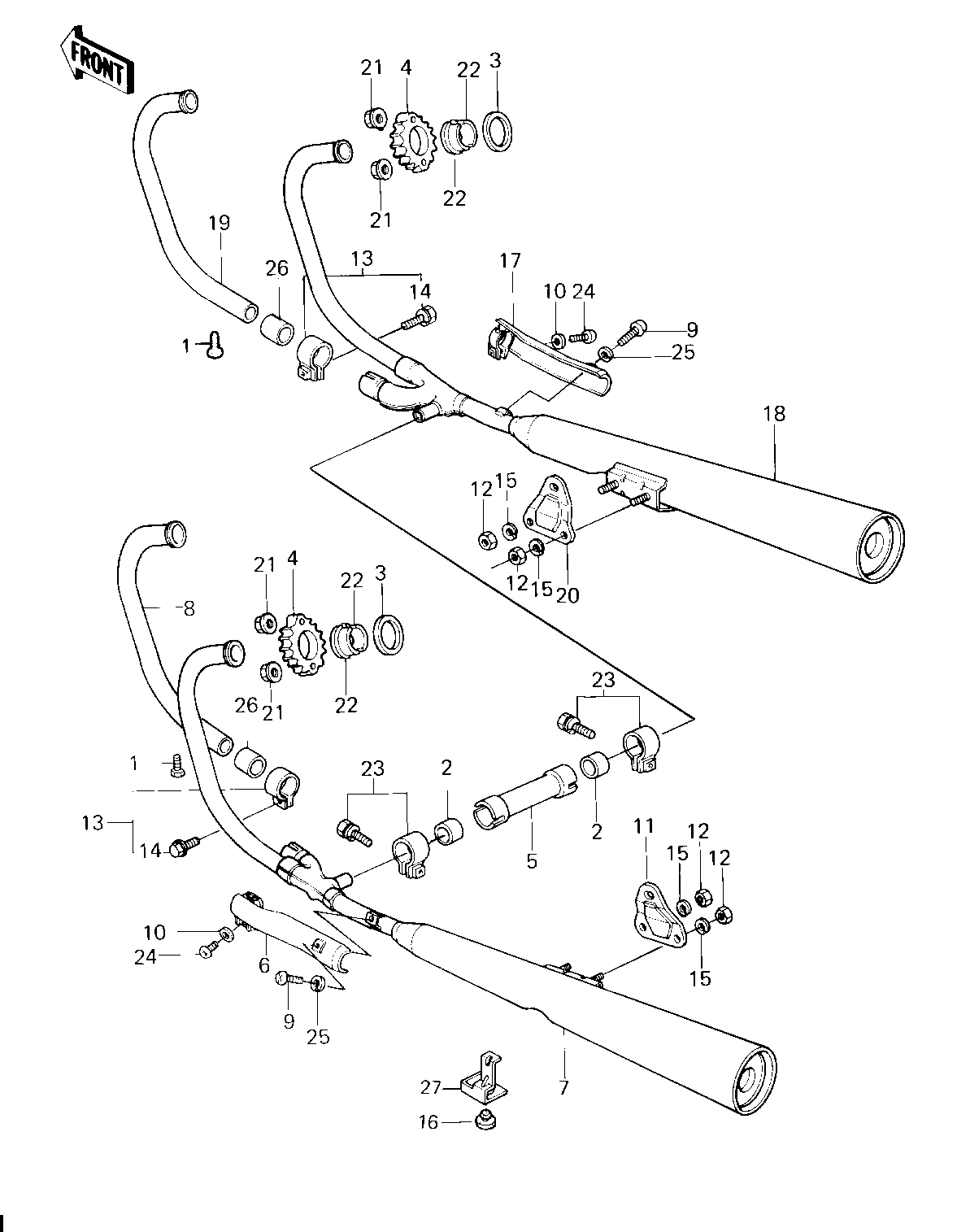

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT (6X10) | 1 | 110R0610 | 4 | ||
| GASKET,MUFFLER CONNEC | 2 | 11060-1051 | 2 | ||
| GASKET,EXHAUST PIPE H | 3 | 11009-1866 | 4 | ||
| HOLDER,EXHAUST PIPE | 4 | 18069-1006 | 4 | ||
| PIPE,MUFFLER CONNECTI | 5 | 32032-1669 | 1 | ||
| COVER,MUFFLER,LH | 6 | 14025-1518 | 1 | ||
| MUFFLER ASSY,L.H | 7 | 18001-1139 | 1 | ||
| PIPE-EXHAUST,#2 | 8 | 18049-1162 | 1 | ||
| SCREW,PAN HEAD,6X8 | 9 | 92011-039 | 2 | ||
| WASHER-PLAIN,6MM | 10 | 411D0600 | 2 | ||
| BRACKET,MUFFLER | 11 | 32069-1062 | 1 | ||
| NUT,8MM | 12 | 311B0800 | 4 | ||
| CLAMP,EXHAUST PIPE | 13 | 92037-1089 | 2 | ||
| BOLT,8X30 | 14 | 92001-1379 | 2 | ||
| WASHER SPRING 8MM | 15 | 461F0800 | 4 | ||
| DAMPER RUBB MAIN STAD | 16 | 92075-015 | 1 | ||
| COVER,MUFFLER,RH | 17 | 14025-1519 | 1 | ||
| MUFFLER ASSY,R.H | 18 | 18001-1140 | 1 | ||
| PIPE-EXHAUST,#3 | 19 | 18049-1163 | 1 | ||
| BRACKET,MUFFLER | 20 | 32069-1062 | 1 | ||
| NUT-6MM | 21 | 92015-1078 | 8 | ||
| COLLAR,EXHAUST PIPE | 22 | 92027-1142 | 8 | ||
| CLAMP,MUFFLER,37MM | 23 | 92037-1243 | 2 | ||
| SCREW PAN HEAD 6X20 | 24 | 220B0620 | 2 | ||
| WASHER SPRING 6MM | 25 | 461F0600 | 2 | ||
| GASKET,EXHAUST PIPE C | 26 | 11009-1667 | 2 | ||
| STOPPER,MAIN STAND | 27 | 32085-1059 | 1 |
