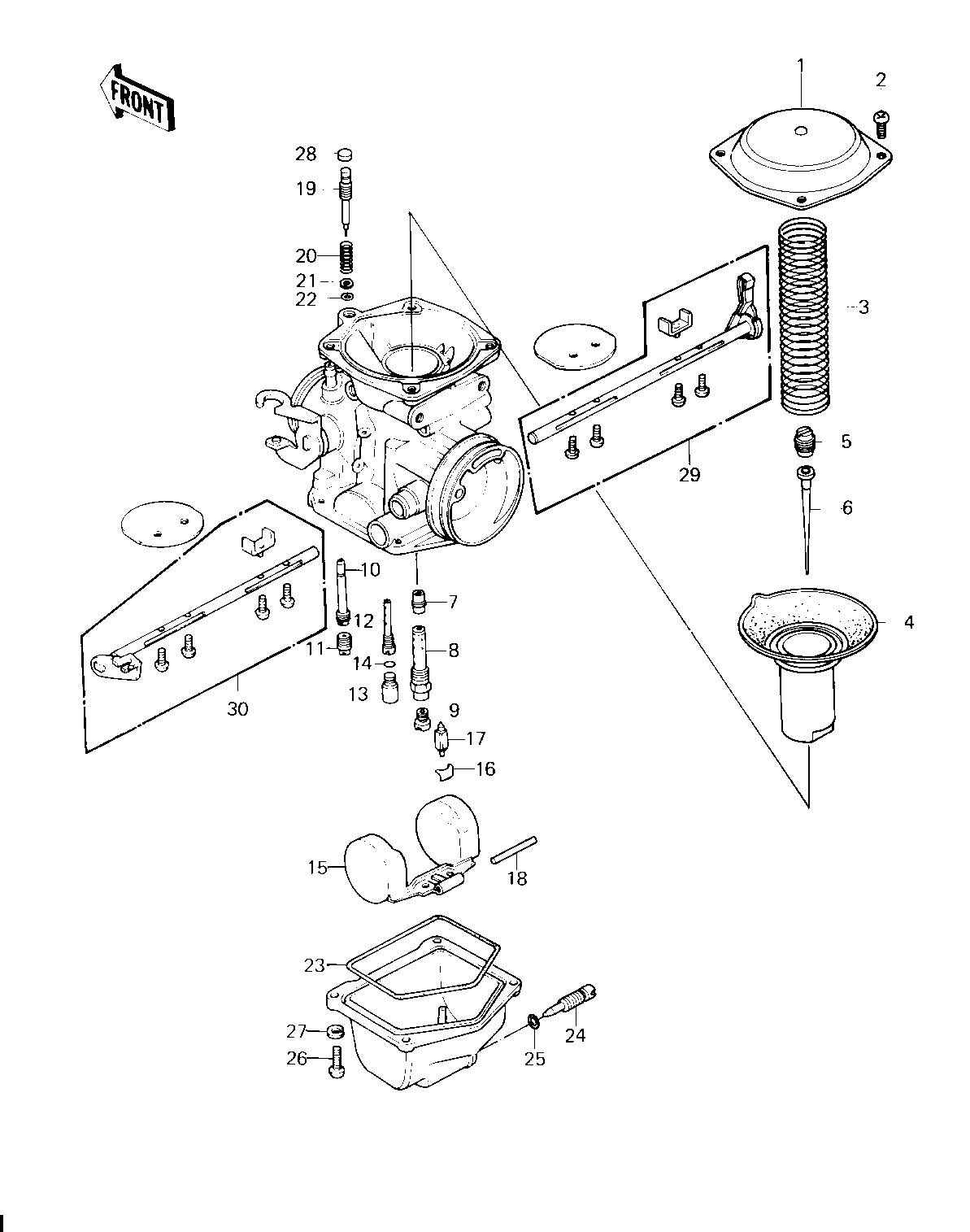

1980 LTD - CARBURETOR PARTS ('80 H1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOP,MIXING CHAMBER 1 16005-1012 4
SCREW PAN HEAD 4X8 2 220B0408 16
SPRING,VACUUM VALVE 3 92081-1412 4
VALVE,VACUUM 4 16126-1039 4
SCREW,NEEDLE SET 5 16007-1022 4
JET NEEDLE,#N01A 6 16009-1062 4
NEEDLE JET 7 16017-1059 4
HOLDER,NEEDLE JET 8 13091-1050 4
MAIN JET,2ND,#125 9 92063-1069 4
MAIN JET,2ND,#120 9 92063-1072 (4
MAIN JET,2ND,#122 9 92063-1073 (4
MAIN JET,2ND,#128 9 92063-1074 (4
MAIN JET,2ND,#130 9 92063-1075 (4
NOZZLE,MAIN 10 92062-1011 4
MAIN JET,PRI,#62 11 92063-1070 4
PILOT JET,#35 12 92064-1001 4
CAP,POLYESTER 13 11012-1128 4
"O" RING 14 92055-1088 4
FLOAT 15 16031-1001 4
CLIP,FLOAT VALVE 16 16044-007 4
FLOAT VALVE 17 16030-1007 4
FLOAT PIN 18 92043-1002 4
SCREW,PILOT ADJUST 19 16014-1011 4
SPRING,PIROT ADJ SCRW 20 92081-1002 4
WASHER,PLAIN 21 92022-1003 4
O RING,PILOT ADJ 22 92055-1002 4
"O" RING,FLOAT BALL 23 16019-024 4
SCREW,DRAIN 24 92009-1095 4
"O" RING,DRAIN SCREW 25 92055-1053 4
SCREW-PAN-CRSOSS,4X12 26 220B0412 16
WASHER SPRING 4MM 27 461F0400 16
PLUG,PILOT SCREW 28 92066-1051 4
SHAFT,CHOKE,L.H 29 16041-1022 1
SHAFT,CHOKE 30 16041-1023 1
