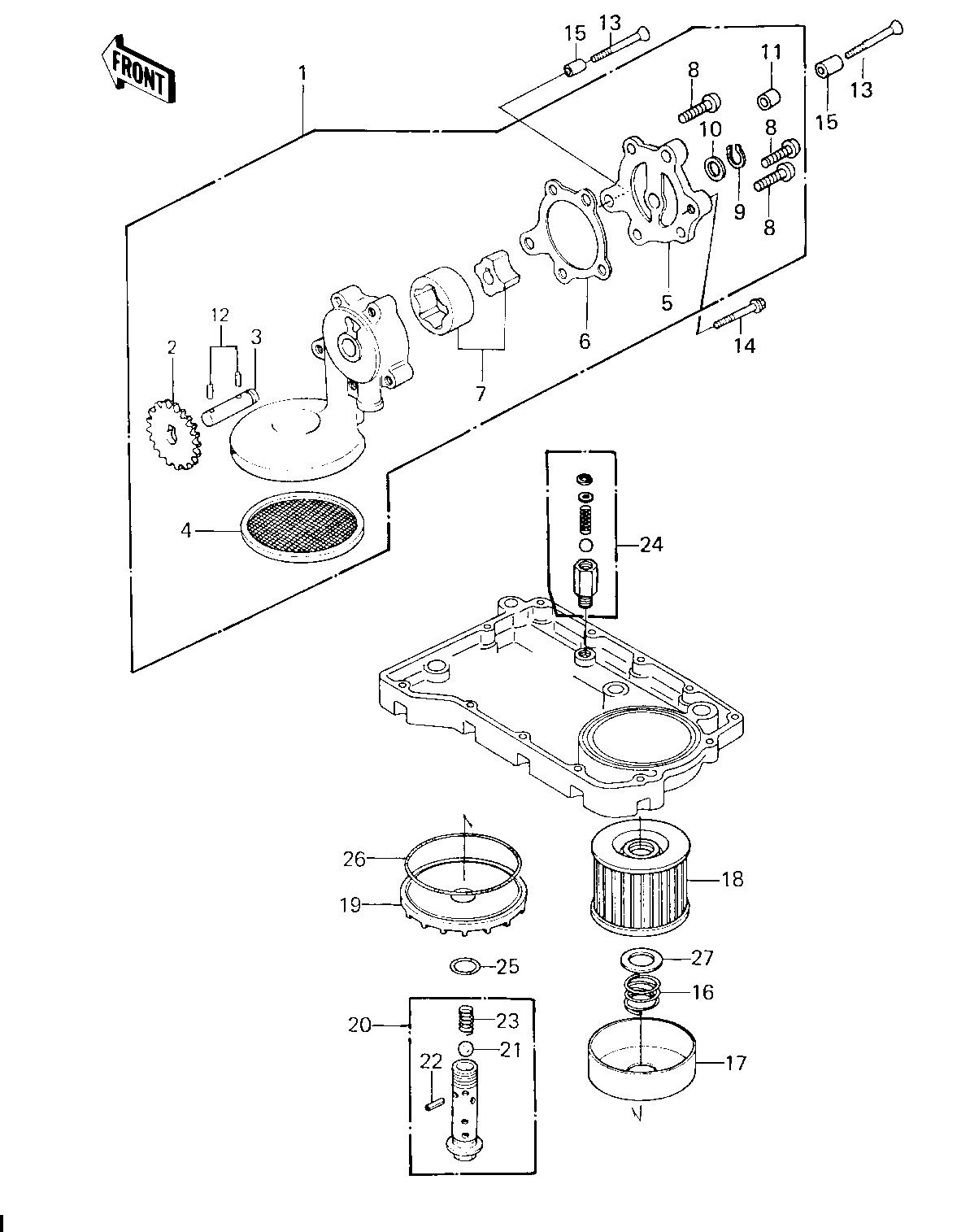

1980 LTD - OIL PUMP/OIL FILTER ('80 H1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| OIL PUMP ASSY | 1 | 16082-064 | 1 | ||
| GEAR,OIL PUMP,57T | 2 | 16085-025 | 1 | ||
| SHAFT,OIL PUMP | 3 | 16086-004 | 1 | ||
| STRAINER,OIL PUMP | 4 | 16111-004 | 1 | ||
| COVER,OIL PUMP | 5 | 16142-005 | 1 | ||
| GASKET,OIL PUMP COVER | 6 | 16145-004 | 1 | ||
| ROTOR ASSY,OIL PUMP | 7 | 16154-003 | 1 | ||
| SCREW PAN HEAD 6X22 | 8 | 220B0622 | 3 | ||
| CIRCLIP,11MM | 9 | 480J1100 | 1 | ||
| WASHER,PLAIN | 10 | 92022-311 | 1 | ||
| PIN,DOWEL,8X10 | 11 | 92043-1302 | 1 | ||
| PIN,DOWEL | 12 | 92042-041 | 2 | ||
| SCREW,CONTRUNK HEAD | 13 | 221B0650 | 2 | ||
| BOLT,HEX HEAD,6X45 | 14 | 92001-165 | 1 | ||
| PIN,DOWEL,6.2X8X28 | 15 | 92042-050 | 2 | ||
| SPRING,OIL FILTER | 16 | 92081-1018 | 1 | ||
| PLATE,OIL FILTER | 17 | 13169-1110 | 1 | ||
| FILTER,OIL | 18 | 16099-003 | 1 | ||
| COVER,OIL FILTER | 19 | 16101-004 | 1 | ||
| VALVE,OIL FILTER | 20 | 16126-1108 | 1 | ||
| BALL STEEL 3/8' | 21 | 600A1200 | 1 | ||
| SPRING PIN | 22 | 92043-111 | 1 | ||
| SPRING | 23 | 92081-109 | 1 | ||
| RELEAF VALVE ASSY | 24 | 16130-1001 | 1 | ||
| "0" RING,16MM | 25 | 670B2016 | 1 | ||
| "0" RING,90MM | 26 | 671B2590 | 1 | ||
| WASHER,20.5X30X1.0 | 27 | 92022-1012 | 1 |
