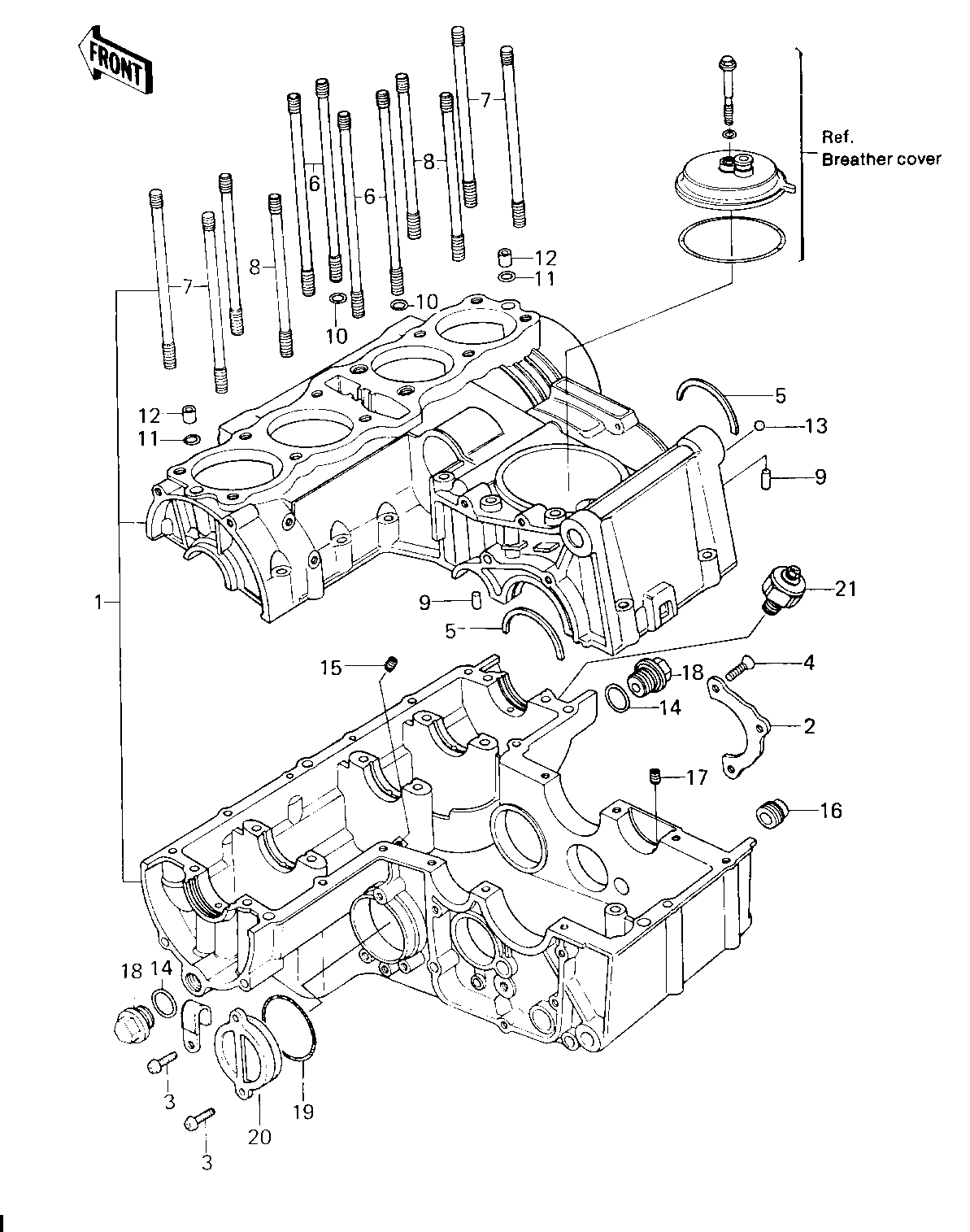

1980 LTD - CRANKCASE ('80 H1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKCASE SET 1 14001-5046 1
PLATE,POSITIONING 2 14014-1007 1
SCREW PAN HEAD 6X20 3 220B0620 2
SCREW CNTSNK HD 6X20 4 221B0620 1
RING BEARING SETTING 5 14013-004 2
STUD,10X153 6 92004-062 4 (*) MARKED PARTS ARE INCLUDED
STUD,10X133 7 92004-1004 4 (*) MARKED PARTS ARE INCLUDED
STUD,10X116 8 92004-1007 4 (*) MARKED PARTS ARE INCLUDED
PIN DOWEL 6MM 9 92042-016 2 (*) MARKED PARTS ARE INCLUDED
"O" RING,8.8MM 10 92055-099 2 (*) MARKED PARTS ARE INCLUDED
O RING 11 670D2010 2
NOZZLE 12 92062-016 2
PLUG 13 92066-057 1 (*) MARKED PARTS ARE INCLUDED
RING-O 14 92055-1146 2 (*) MARKED PARTS ARE INCLUDED
NOZZLE,OIL BIAS 15 92062-011 1 (*) MARKED PARTS ARE INCLUDED
NOZZLE 16 92062-014 1 (*) MARKED PARTS ARE INCLUDED
NOZZLE 17 92062-015 1 (*) MARKED PARTS ARE INCLUDED
PLUG 18 92066-066 2 (*) MARKED PARTS ARE INCLUDED
"0" RING,46MM 19 670B3046 1
PLUG,SECONDARY SHAFT 20 92066-1019 1
SWITCH ASY,OIL PRSSUR 21 16144-006 1
