Parts Diagrams |

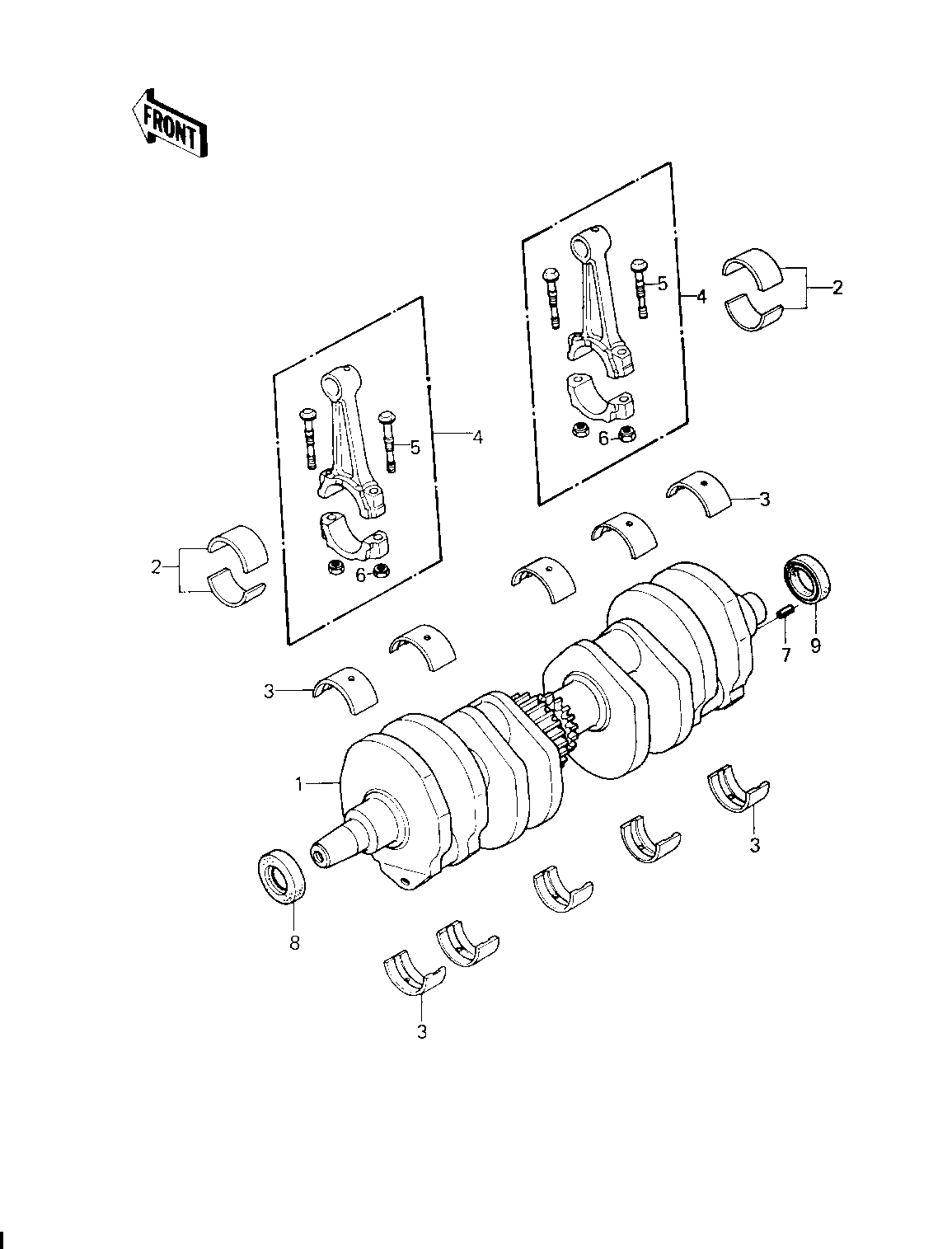

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKSHAFT ASSY | 1 | 13031-1028 | 1 | ||
| METAL,CONNECT ROD BRG | 2 | 13034-050 | AR | GREEN OR "A" MARK | |
| METAL,CONNECT ROD BRG | 2 | 13034-051 | AR | BLACK OR "B" MARK | |
| METAL,CONNECT ROD BRG | 2 | 13034-052 | AR | BROWN OR "C" MARK | |
| BUSHING,CRANKSHAFT | 3 | 92028-1100 | 10 | BLUE | |
| BUSHING,CRANKSHAFT | 3 | 92028-1101 | 10 | BLACK | |
| BUSHING,CRANKSHAFT | 3 | 92028-1102 | 10 | BROWN | |
| CONNECTING ROD ASSY,J | 4 | 13251-1007-JJ | 4 | ||
| UNAVAILABLE IN PRICE BOOK | 4 | 13251-1007-H | 4 | ||
| CONNECTING ROD ASSY,J | 4 | 13251-1007-JJ | 4 | ||
| BOLT,CONNECTING ROD,8 | 5 | 92001-1887 | 8 | ||
| NUT,FLANGED,8MM | 6 | 92015-1311 | 8 | ||
| PIN-SPRING,4X8 | 7 | 555A0408 | 1 | ||
| OIL SEAL,HSCY22397 | 8 | 92050-080 | 1 | ||
| OIL SEAL,HSCY25397 | 9 | 92050-081 | 1 |
| CRANKSHAFT ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METAL,CONNECT ROD BRG | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | GREEN OR "A" MARK |
| METAL,CONNECT ROD BRG | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | BLACK OR "B" MARK |
| METAL,CONNECT ROD BRG | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | BROWN OR "C" MARK |
| BUSHING,CRANKSHAFT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | BLUE |
| BUSHING,CRANKSHAFT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | BLACK |
| BUSHING,CRANKSHAFT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | BROWN |
| CONNECTING ROD ASSY,J | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CONNECTING ROD ASSY,J | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,CONNECTING ROD,8 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PIN-SPRING,4X8 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,HSCY22397 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,HSCY25397 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
