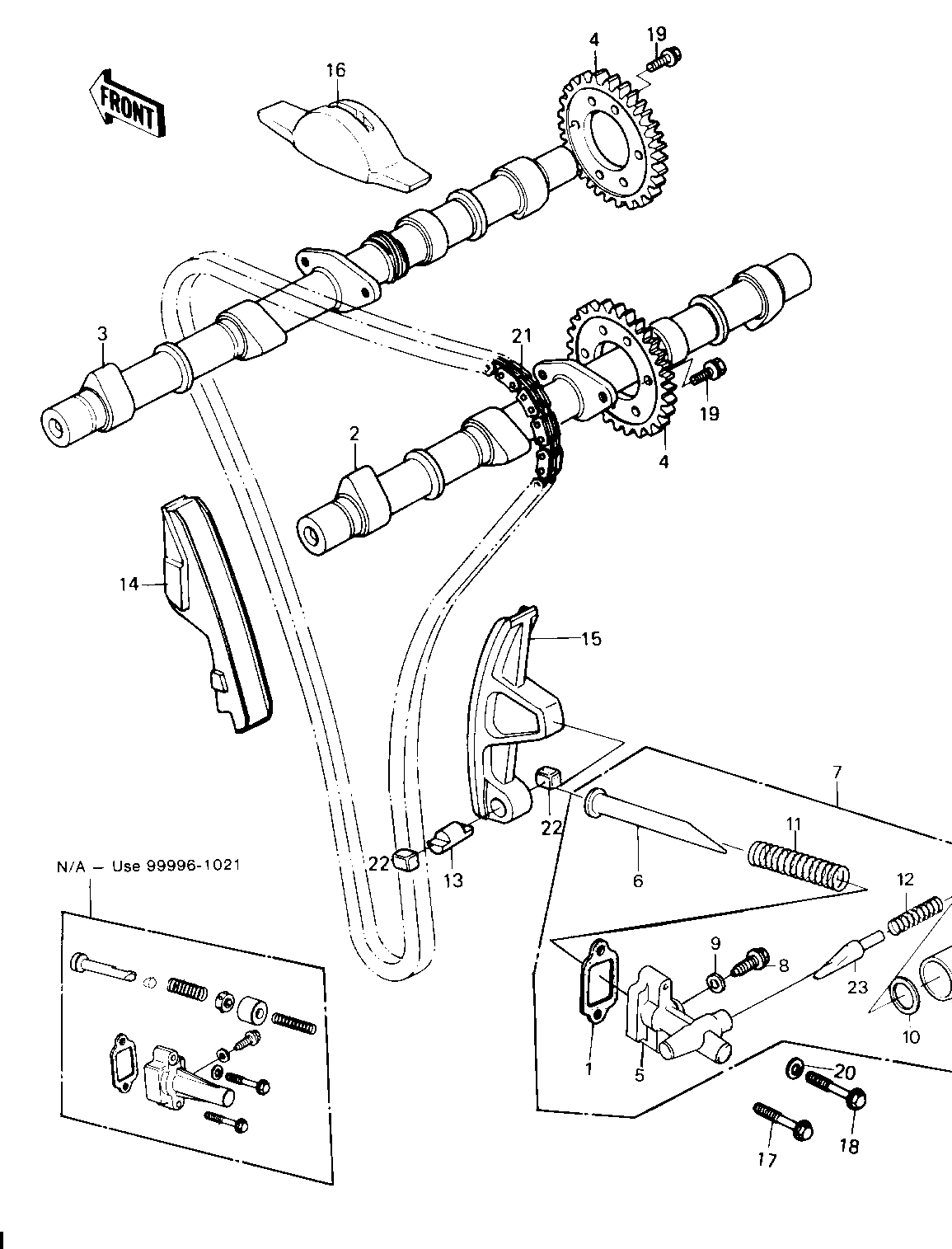

1980 LTD - CAMSHAFTS/CHAIN/TENSIONER ('80 H1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TENSIONER | 1 | 11009-1980 | 1 | ||
| CAMSHAFT-VALVE,INTAKE | 2 | 12044-1043 | 1 | ||
| CAMSHAFT,EXHAUST | 3 | 12044-1019 | 1 | ||
| SPROCKET,CAMSHAFT 46T | 4 | 12046-1021 | 2 | ||
| TENSIONER,CAM CHAIN | 5 | 12049-1015 | 1 | ||
| ROD-PUSH,TENSIONER | 6 | 13116-1036 | 1 | ||
| TENSIONER KIT | 7 | 99996-1021 | 1 | ||
| BELT,TENSIONER ADJUST | 8 | 92001-1155 | 1 | ||
| WASHER OIL PUMP BANJO | 9 | 92022-077 | 1 | ||
| WASHER,18.3X24X1.4T | 10 | 92022-1175 | 1 | ||
| SPRING,TENSIONER | 11 | 92081-1374 | 1 | ||
| SPRING,TENSIONER | 12 | 92081-1302 | 1 | ||
| SHAFT,CAM CHAIN GUIDE | 13 | 12052-003 | 1 | ||
| GUIDE-CHAIN,FR | 14 | 12053-1058 | 1 | ||
| GUIDE-CHAIN REAR | 15 | 12053-1054 | 1 | ||
| GUIDE,CHAIN UPPER | 16 | 12053-1038 | 1 | ||
| BOLT,FLANGED,6X30 | 17 | 130G0630 | 1 | ||
| BOLT,FLANGED,6X35 | 18 | 130H0635 | 1 | ||
| BOLT,SPROCKET FITTING | 19 | 92003-208 | 4 | ||
| WASHER OIL PUMP BANJO | 20 | 92022-077 | 1 | ||
| CHAIN,CAM,82RH2015-15 | 21 | 92057-1319 | 1 | ||
| DAMPER RUBBER | 22 | 92075-123 | 2 | ||
| ROD,PUSH,CAM CHAIN | 23 | 13116-1012 | 1 | ||
| CAP,TENSIONER,18M/M | 24 | 92015-1100 | 1 |
