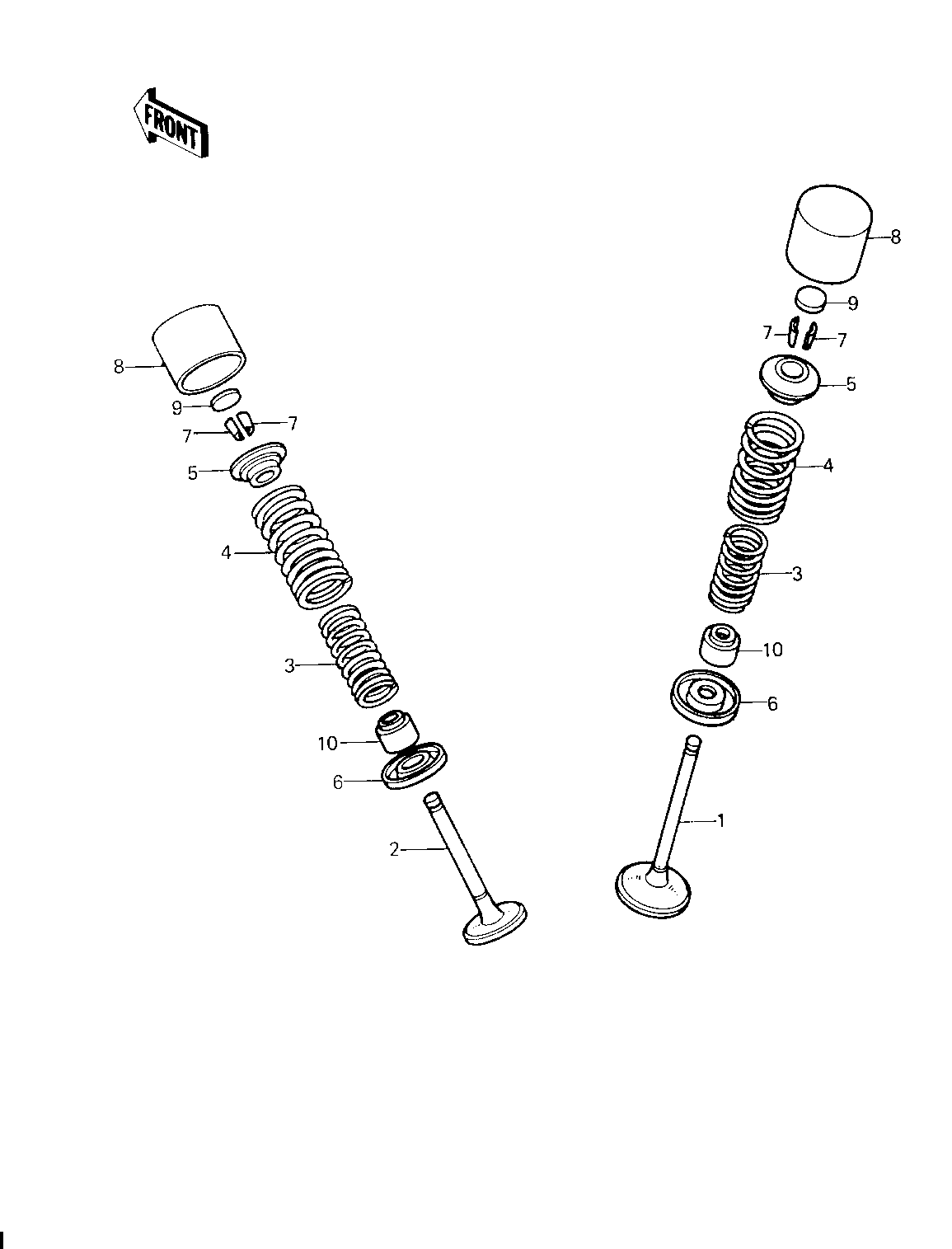

1980 LTD - VALVES ('80 H1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 1 12004-1058 4
VALVE,EXHAUST 2 12005-1006 4
SPRING,VALVE,INNER 3 49078-1001 8
SPRING,VALVE,OUTER 4 49078-1002 8
RETAINER,VALVE SPRING 5 12009-008 8
SEAT-SPRING,VALVE 6 16007-1024 8
SPLIT KEEPER 7 12011-004 16
TAPPET 8 12032-1001 8
SHIM,2.007 9 92025-1090 AR
SHIM,2.05T 9 92025-1091 AR
SHIM,2.10T 9 92025-1092 AR
SHIM,2.15T 9 92025-1093 AR
SHIM,2.20T 9 92025-1094 AR
SHIM,2.25T 9 92025-1095 AR
SHIM,2.30T 9 92025-1096 AR
SHIM,2.35T 9 92025-1097 AR
SHIM,2.40T 9 92025-1098 AR
SHIM,2.45T 9 92025-1099 AR
SHIM,2.50T 9 92025-1100 AR
SHIM T2.55 9 92025-1101 AR
SHIM,2.60T 9 92025-1102 AR
SHIM,2.65T 9 92025-1103 AR
SHIM,2.70T 9 92025-1104 AR
SHIM,2.75T 9 92025-1105 AR
SHIM,2.80T 9 92025-1106 AR
SHIM,2.85T 9 92025-1107 AR
SHIM,2.90T 9 92025-1108 AR
SHIM,2.95 9 92025-1109 AR
SHIM,3.00T 9 92025-1110 AR
SHIM,3.05T 9 92025-1111 AR
SHIM,3.10T 9 92025-1112 AR
SHIM,3.15T 9 92025-1113 AR
SHIM,3.20T 9 92025-1114 AR
OIL SEAL,RV37129.5 10 92049-016 8
