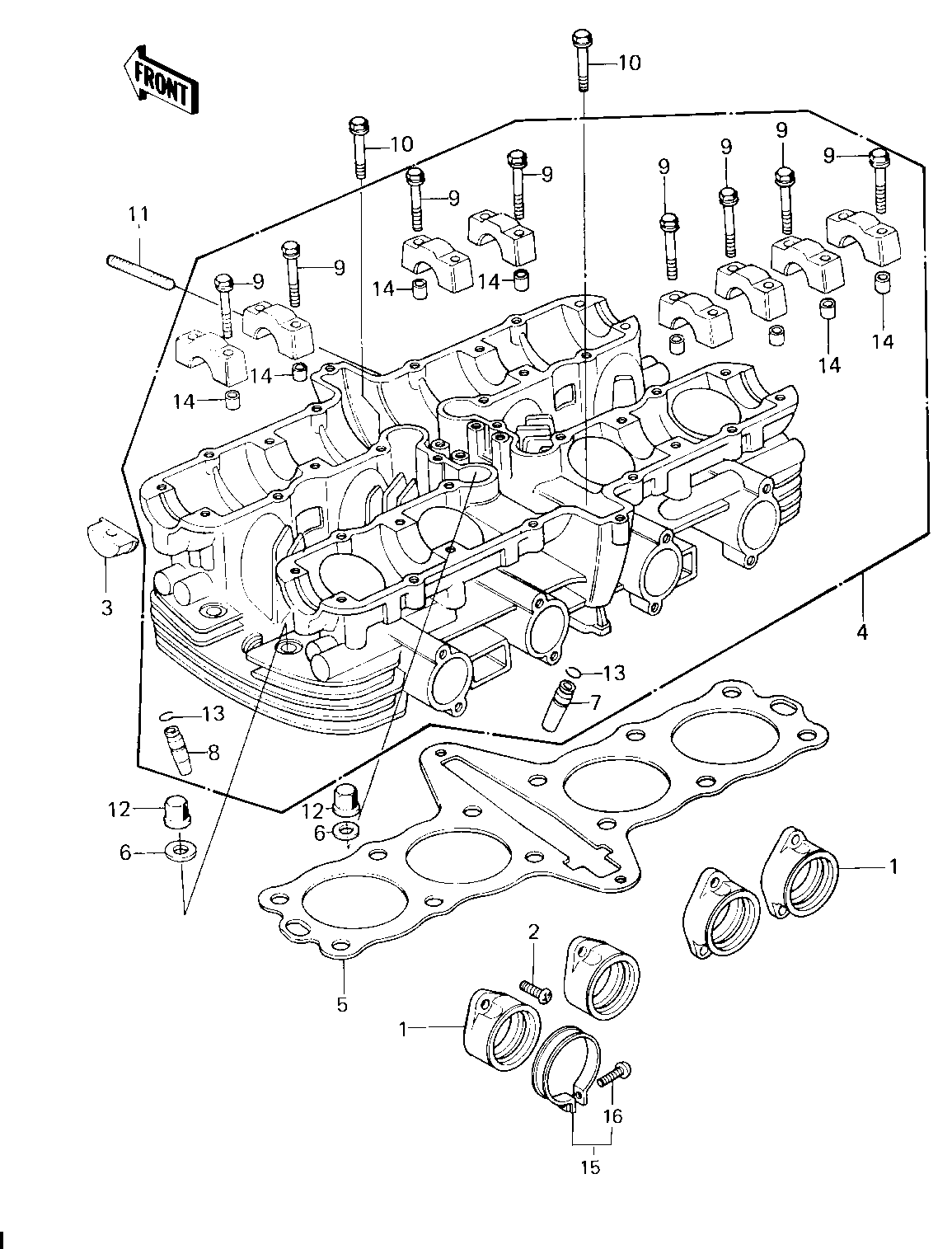

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,CARBURETOR | 1 | 16065-1028 | 4 | ||
| SCREW PAN HEAD 6X18 | 2 | 220B0618 | 8 | ||
| PLUG,CAMSHAFT,11.35X1 | 3 | 92066-1111 | 4 | ||
| CYLINDER HEAD,BARREL | 4 | 11002-1042 | 1 | ||
| GASKET-HEAD,CYLINDER | 5 | 11004-1107 | 1 | ||
| WASHER PLAIN 10MM | 6 | 411B1000 | 12 | ||
| GUIDE,INLET VALVE | 7 | 12013-009 | 4 | ||
| GUIDE,EXHAUST VALVE | 8 | 49002-1002 | 4 | ||
| BOLT,FLANGED,6X38 | 9 | 92001-1105 | 16 | ||
| BOLT,FLANGED,8X43 | 10 | 92001-1445 | 2 | ||
| STUD,6X27 | 11 | 92004-066 | 8 | ||
| NUT | 12 | 92015-078 | 12 | ||
| CIRCLIP-VALVE | 13 | 92036-023 | 8 | ||
| PIN-DOWEL | 14 | 92042-007 | 16 | ||
| CLAMP | 15 | 92037-1326 | 4 | ||
| SCREW-PAN-CROS,6X35,B | 16 | 220C0635 | 4 |
| HOLDER,CARBURETOR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X18 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PLUG,CAMSHAFT,11.35X1 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CYLINDER HEAD,BARREL | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-HEAD,CYLINDER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 10MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| GUIDE,INLET VALVE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GUIDE,EXHAUST VALVE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X38 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X43 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STUD,6X27 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-VALVE | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X35,B | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
