Parts Diagrams |

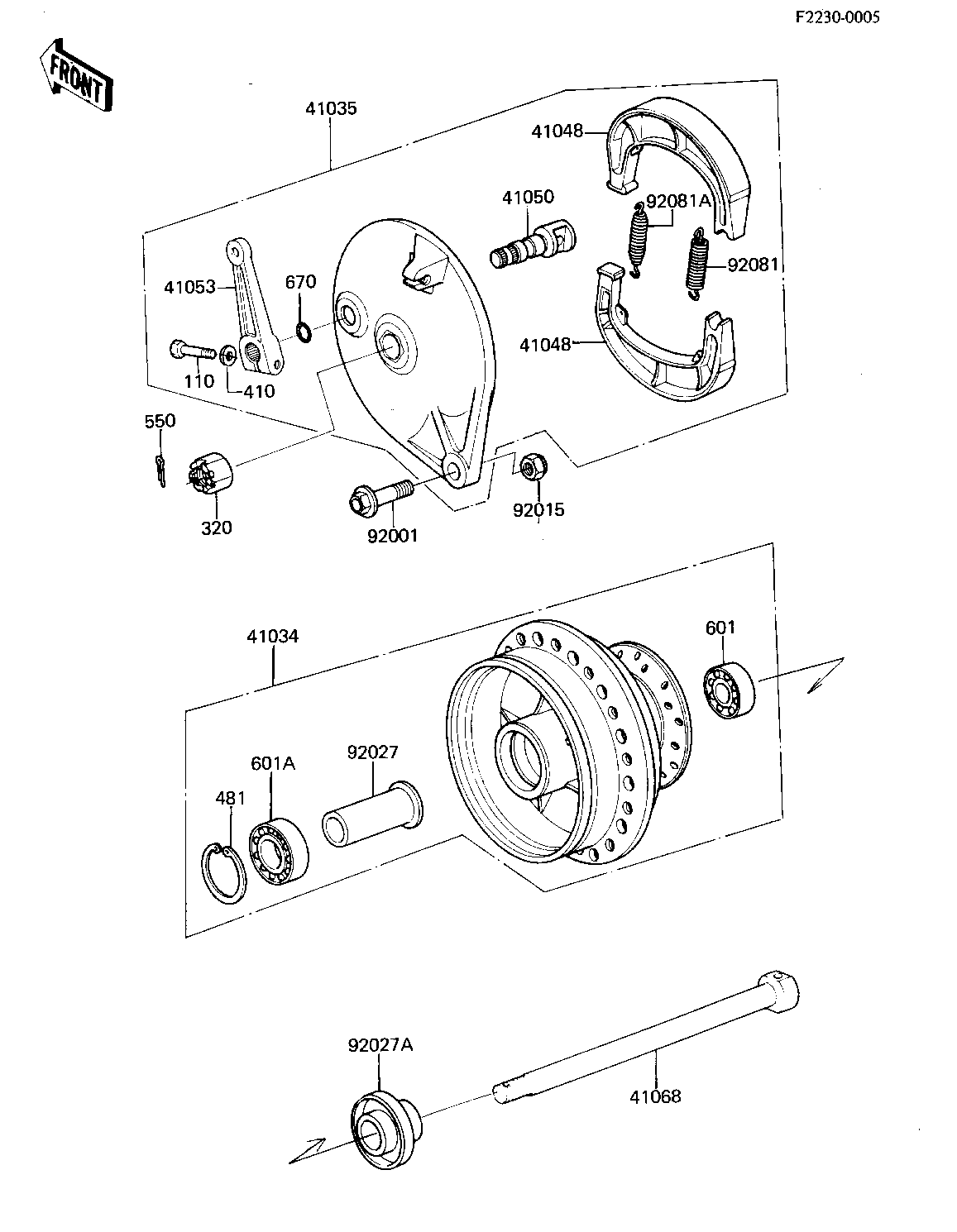

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,FR BRK,BLK | 41034 | 41034-1009-21 | 1 | ||
| PANEL-ASY,FR BRK | 41035 | 41035-1024 | 1 | ||
| SHOE,BRAKE | 41048 | 41048-015 | 2 | ||
| CAM SHAFT,FRONT BRAKE | 41050 | 41050-1006 | 1 | ||
| LEVER,BRAKE CAM,FRONT | 41053 | 41053-1007 | 1 | ||
| AXLE,FRONT | 41068 | 41068-1034 | 1 | ||
| BOLT,10X45 | 92001 | 92001-1182 | 1 | ||
| NUT,LOCK,10MM | 92015 | 92019-021 | 1 | ||
| COLLAR,FRONT BEARING | 92027 | 92027-1073 | 1 | ||
| COLLAR,TURN SIG FITT | 92027A | 92027-1025 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1766 | 1 | ||
| SPRING,BRAKE SHOE | 92081A | 92081-1550 | 1 | ||
| BOLT-UPSET | 110 | 112G0622 | 1 | ||
| NUT-CASTLE | 320 | 320G1200 | 1 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
| CIRCLIP.37MM | 481 | 481J3700 | 1 | ||
| PIN-COTTER,3.2X28 | 550 | 550D3228 | 1 | ||
| BEARING BALL,#6201U | 601 | 601B6201U | 1 | ||
| BEARING BALL,#6301U | 601A | 601B6301U | 1 | ||
| "O" RING,12MM | 670 | 670B2012 | 1 |
